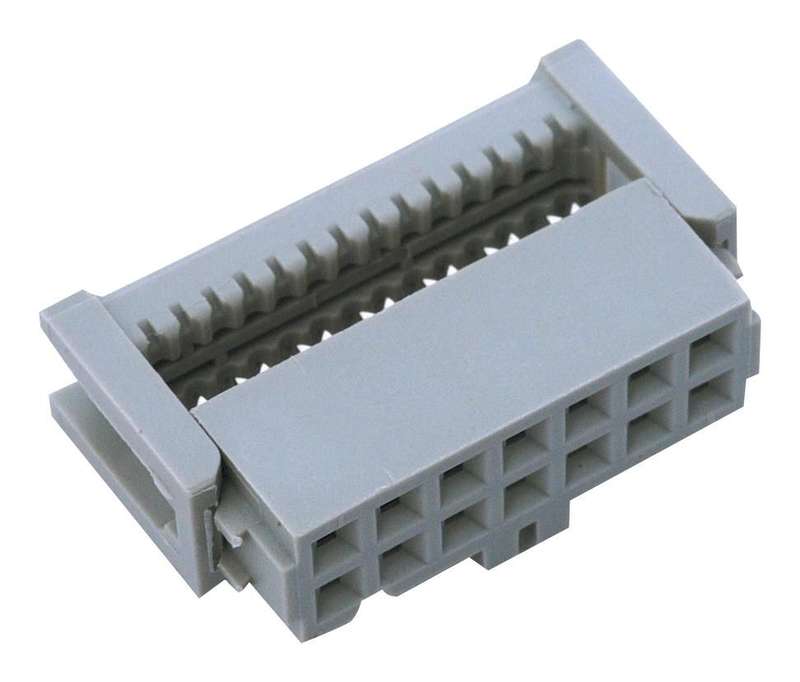

3M (89116-0101) IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row

IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 16 Contacts, Cable MountProduct OverviewThe 89116-0101 is a 16-way 2-row 0.100 x 0.100-inch Wire-to-board IDC Socket for0.050-inch pitch ribbon cable with gold-plated phosphor bronze contacts. This891 series socket comes with glass filled polyester (PBT) insulation andaccommodates 28/26AWG stranded wire. It has military polarization withcenterbump and no strain relief. Bumps are designed to prevent premature latchlocking during shipment. Double-recessed cover is for cable terminating fromeither side virtually eliminating the need for single-recessed cover connectors.Grey colorUL94V-0 Flammability rating1 x 10?R at 500VDC Insulation resistanceApplicationsIndustrialProduct InformationPitch Spacing: 2.54mmIDC Connector Type: IDC ReceptacleContact Gender: FemaleNo. of Contacts: 16ContactsNo. of Rows: 2 RowProduct Range: 891 SeriesConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
