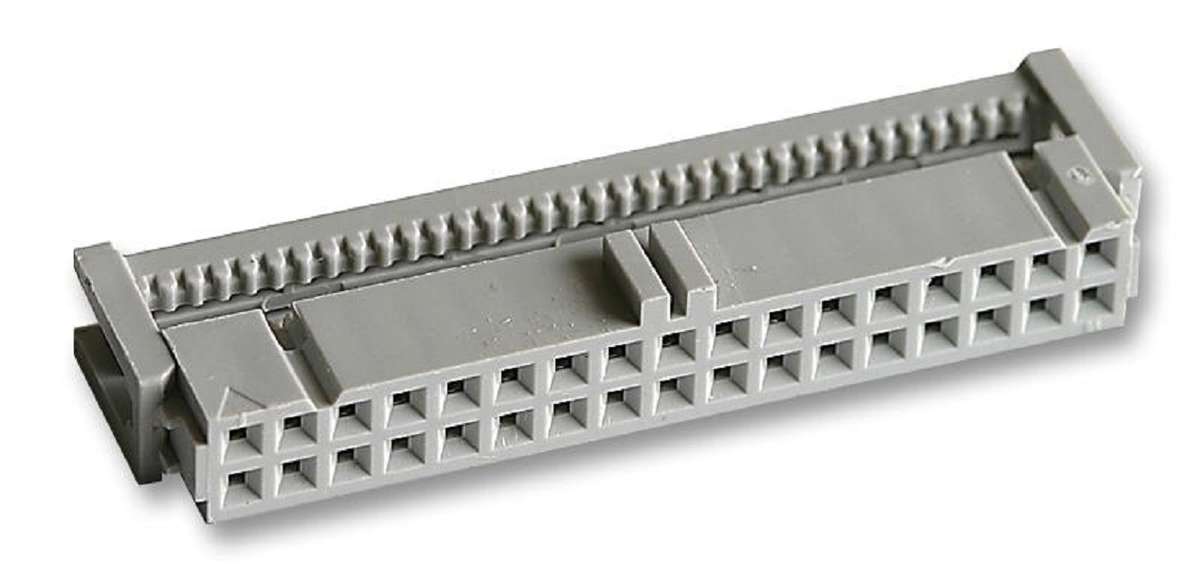

3M (89134-0101HA) IDC Connector, Bump & Clip, IDC Receptacle, Female

IDC Connector, Bump & Clip, IDC Receptacle, Female, 2.54 mm, 2 Row, 34 Contacts,Cable MountProduct OverviewThe 89134-0101HA is a 34-way 0.100 x 0.100-inch Preassembled Wiremount Socketfor 0.050-inch pitch cable, 0.38µm gold with 0.76µm nickel plating, gold-platedbrass contacts and IDC/IDT termination. This 891 series socket is glass filledpolyester (PBT) insulated, preassembled, terminates faster than two-piecesockets. Double-recessed cover for cable terminating from either side virtuallyeliminating the need for single-recessed cover connectors, military polarizationwith centerbump and no strain relief.Grey colourUL94V-0 Flammability rating1A Current rating1 x 10?R at 500VDC Insulation resistance-55 to 105°C Temperature ratingApplicationsIndustrialProduct InformationIDC Connector Type: IDC ReceptacleContact Gender: FemalePitch Spacing: 2.54mmNo. of Rows: 2 RowNo. of Contacts: 34ContactsConnector Mounting: Cable MountContact Material: BrassContact Plating: Gold Plated ContactsProduct Range: 8913 Series
