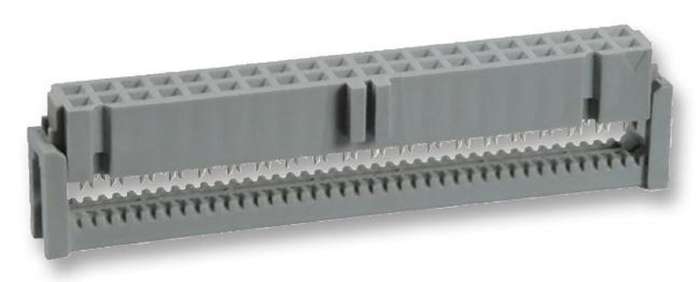

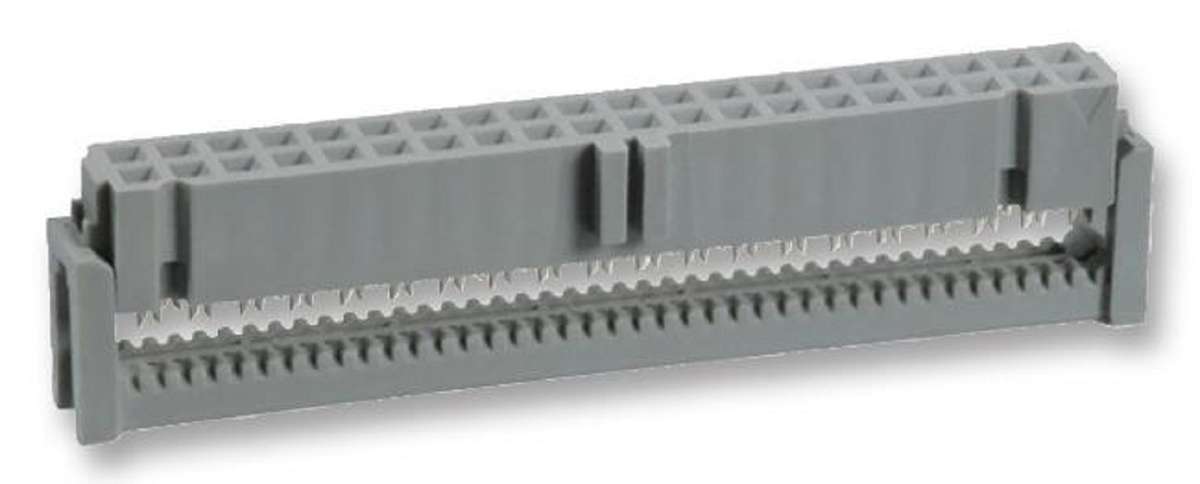

3M (89140-0101) IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row

IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 40 Contacts, Cable MountProduct OverviewThe 89140-0101 is a 40-way 2-row 0.100 x 0.100-inch IDC Ribbon Cable Socket for0.050-inch pitch cable with gold-plated phosphor bronze contacts. The 891 serieswire-to-board connector comes with a glass filled polyester (PBT) insulator andaccommodates 28/26AWG stranded wire. It has military polarization withcenterbump and no strain relief. Double-recessed cover for cable terminatingfrom either side virtually eliminating the need for single-recessed coverconnectors.Bumps are designed to prevent premature latch locking during shipmentGray colorUL94V-0 Flammability rating1 x 10?R at 500VDC Insulation resistanceApplicationsIndustrial, Aerospace, Defence, Military, Computers & Computer PeripheralsProduct InformationPitch Spacing: 2.54mmIDC Connector Type: IDC ReceptacleContact Gender: FemaleNo. of Contacts: 40ContactsNo. of Rows: 2 RowConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: 891 Series
