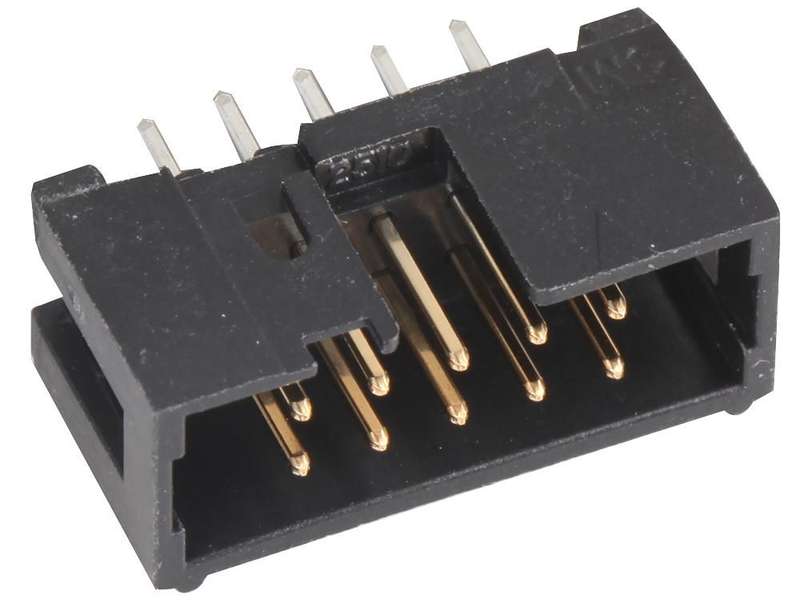

3M (N2510-6002RB) 10 Contacts, Through Hole Straight, 2500

Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Through Hole Straight,2500Product OverviewThe N2510-6002RB is a 10-way 0.100 x 0.100-inch 4-wall Straight Header for0.062-inch thick board tail, with gold-plated copper alloy contacts and throughhole termination. This 2500 series low profile header is a glass filledpolyester (PCT) insulated, center slot polarization prevents mis-insertions andreduces insertion time, suitable for reflow soldering using paste in holetechniques.Black colour high temperature glass filled polyester PCT insulatorCopper alloy with gold plating contactsTemperature rating from -55°C to 105°CWithstanding Voltage: 1000VCurrent Rating:5A, 1 Contact Powered, 3A, 6 Contacts Powered, 1.75A, All Contacts PoweredApplicationsIndustrialProduct InformationConnector Systems: Wire-to-BoardPitch Spacing: 2.54mmNo. of Rows: 2RowsNo. of Contacts: 10ContactsContact Termination Type: Through Hole StraightProduct Range: 2500Connector Shroud: ShroudedContact Material: CopperContact Plating: Gold Plated Contacts
