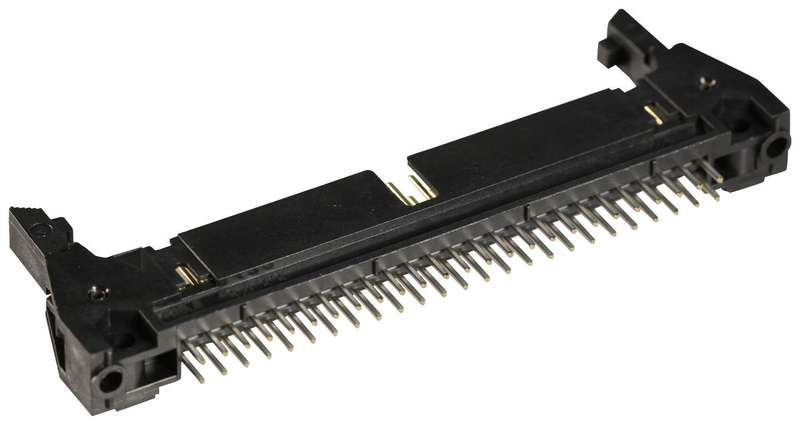

3M (N3433-6302RB) Pin Header, Long Latch, Wire-to-Board, 2.54 mm, 2 Rows

Pin Header, Long Latch, Wire-to-Board, 2.54 mm, 2 Rows, 50 Contacts, ThroughHole Straight, 3000Product OverviewThe N3433-6302RB is a 50-way 0.100 x 0.100-inch Pak 100 4-wall Straight Headerwith long roll pin latch/ejector, gold-plated copper alloy contacts and throughhole termination. This 3000 series header is glass filled polyester (PCT)insulated, suitable for reflow soldering using paste in hole techniques. Thishas military (with 3M's 3518 polarizing key) and centerbump polarization,mounting holes for securing header to board.Black colourUL94V-0 Flammability rating1A Current rating1 x 10?R at 500VDC Insulation resistance-55 to 105°C Temperature ratingApplicationsIndustrialProduct InformationConnector Systems: Wire-to-BoardPitch Spacing: 2.54mmNo. of Rows: 2RowsNo. of Contacts: 50ContactsContact Termination Type: Through Hole StraightProduct Range: 3000Connector Shroud: ShroudedContact Material: CopperContact Plating: Gold Plated Contacts
