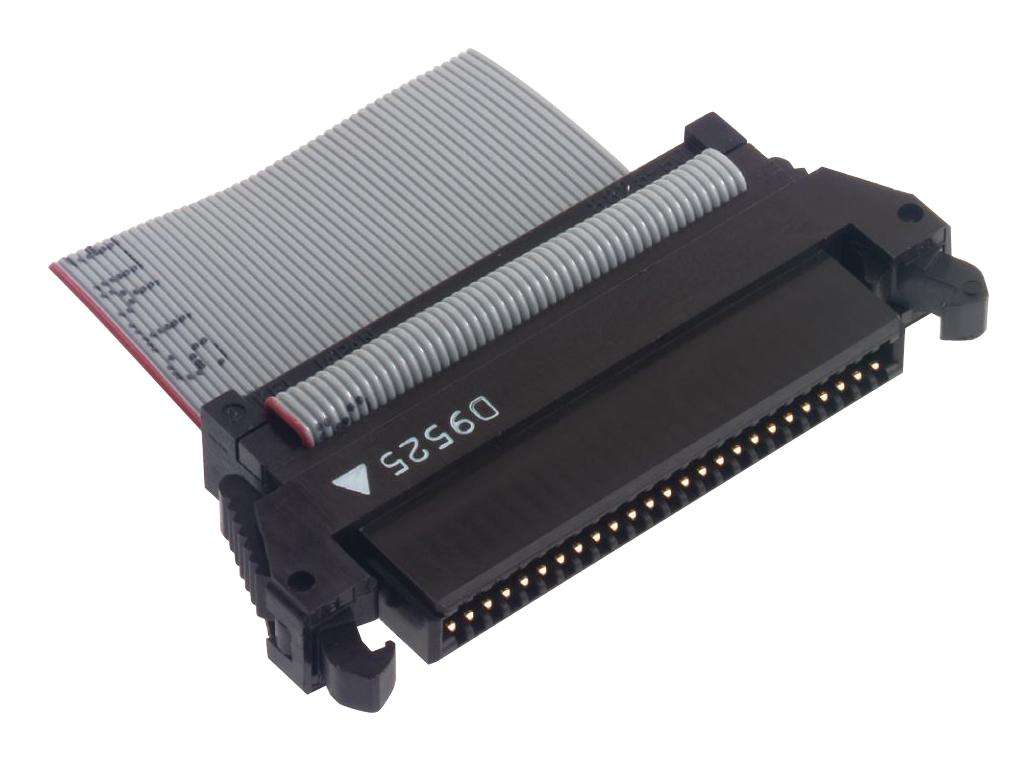

3M (P25E-050-S-EA) IDC Connector, IDC Receptacle, Female, 1.27 mm, 2 Row

IDC Connector, IDC Receptacle, Female, 1.27 mm, 2 Row, 50 Contacts, Cable MountProduct OverviewThe P25E series 0.05-inch wire-mount Socket designed to mate with P50 series IDCboard-mount connectors. The connector terminates 30AWG stranded 0.635mm pitchflat PVC cable (3754 series). It has phosphor bronze contact and glass-fillednylon insulator.Daisy chain capabilityLatch/eject mechanism maintains a secure connectionCable strain relief standardNo strain relief optionalFinished cable assemblies to customer specifications availableTooling available for customer cable assembly termination0.5A Current rating1 x 10?R at 250VDC Insulation resistance-55 to 85°C Temperature rangeUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationPitch Spacing: 1.27mmIDC Connector Type: IDC ReceptacleContact Gender: FemaleNo. of Contacts: 50ContactsNo. of Rows: 2 RowProduct Range: P25E SeriesConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated Contacts
