3pcs 0.36 Inch 4-Digit LED Display Tube 7-segments TM1637 30x14mm Yellow Decimal Point Module

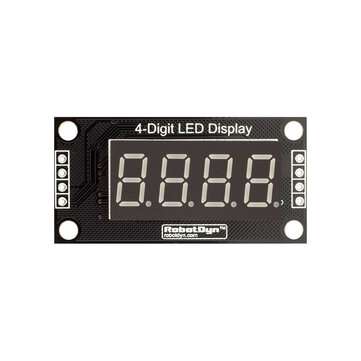

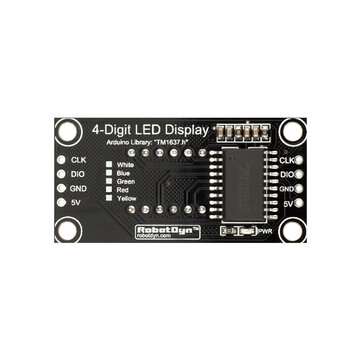

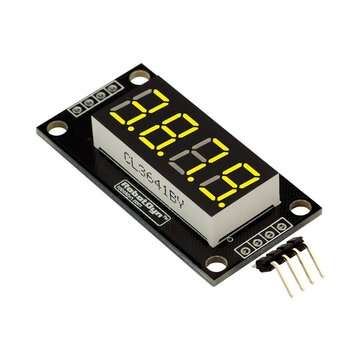

Description: This is a basic, 4-digit 7-segment display module (YELLOW). The display features decimal points per digit. Module connecting to digital I/O on 2 pins. For Arduino use library: TM1637.h

Digit dim.	0.36
Dots	decimal
Driver IC	TM1637
Color	YELLOW
Display size	30x14mm
Voltage	5V

Documents:

Package includes: 3 x Display Module

Scetch: #include TM1637.h // include the TM1637 library TM1637 display(2, 3);// // initialize the library for pins 2, 3 void setup() { display.init(); // Start display display.set(7); //Setup brightness 0 to 7 int8_t Disp[4]; //Dimension of digits } void loop() { Disp[0] = 1; //Write digits to dimension Disp[1] = 2; Disp[2] = 3; Disp[3] = 4; display.display(Disp); //Show dimension(digits) to display }
