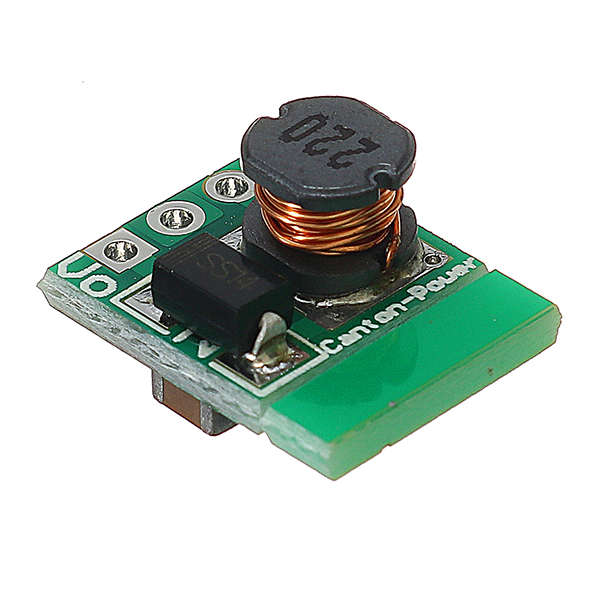

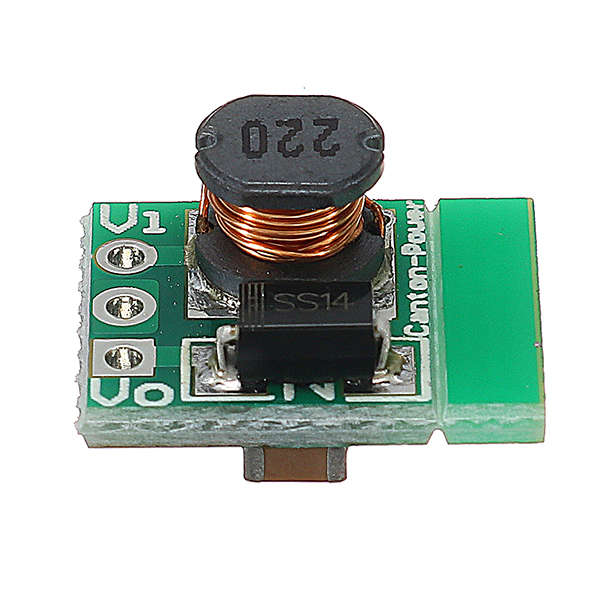

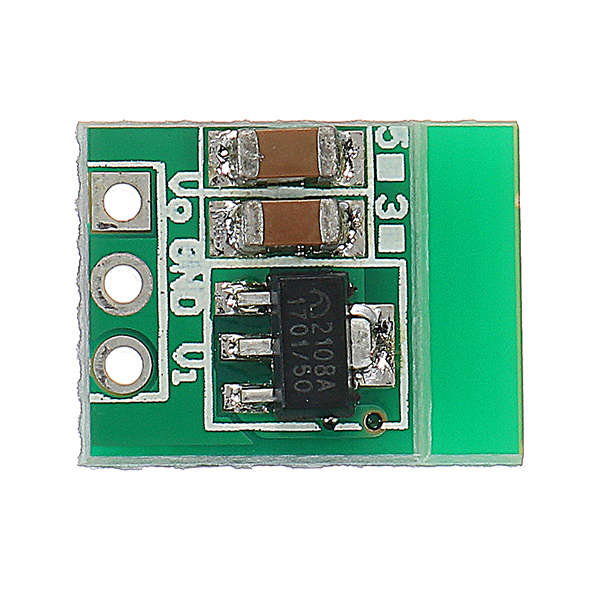

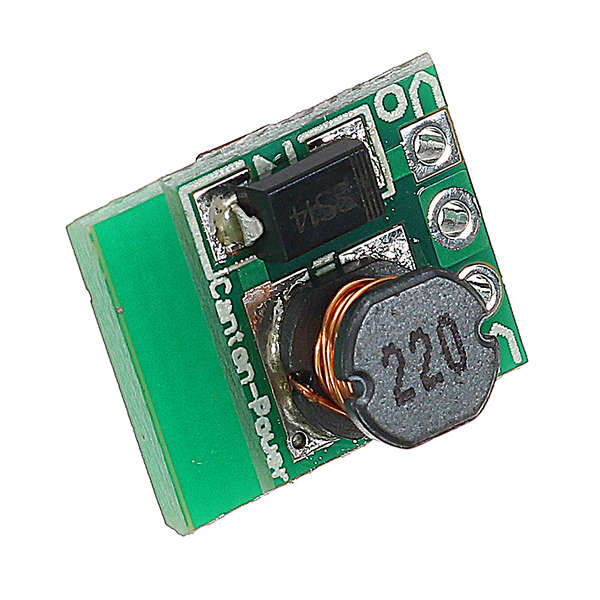

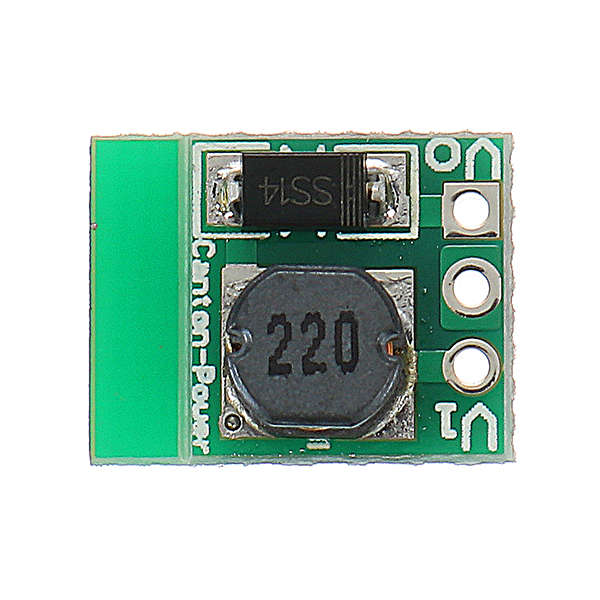

3Pcs 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V To 5V DC-DC Boost Converter Module Board

New

20 available

R398.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4014

92.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654082982

Feature: Input voltage 0.9-5V; output voltage 5V Maximum output current: 480Ma Starting voltage 0.8V, output current 7MA Input 1-1.5V, output 5V 40-100MA Input 1.5-2V, output 5V 100-150MA Input 2-3V, output 5V 150-380MA Input more than 3V, output 380-480MA Operating frequency: 150KHZ Typical conversion efficiency: 85% Pin 2.54MM spacing Size:11mm x 10.5mm x 7.5mm (very small) Weight: about 1 g

Note: 1. the input voltage is not greater than the nominal voltage, otherwise it will burn out the module 2. the input power must be greater than output power, otherwise the output voltage will be less than the nominal voltage. 3. the output load should not be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage Package includes: 3 x Converter Module
