3pcs +-10V TL341 Power Supply Voltage Reference Module for OPA ADC DAC LM324 AD0809 DAC0832 ARM STM3

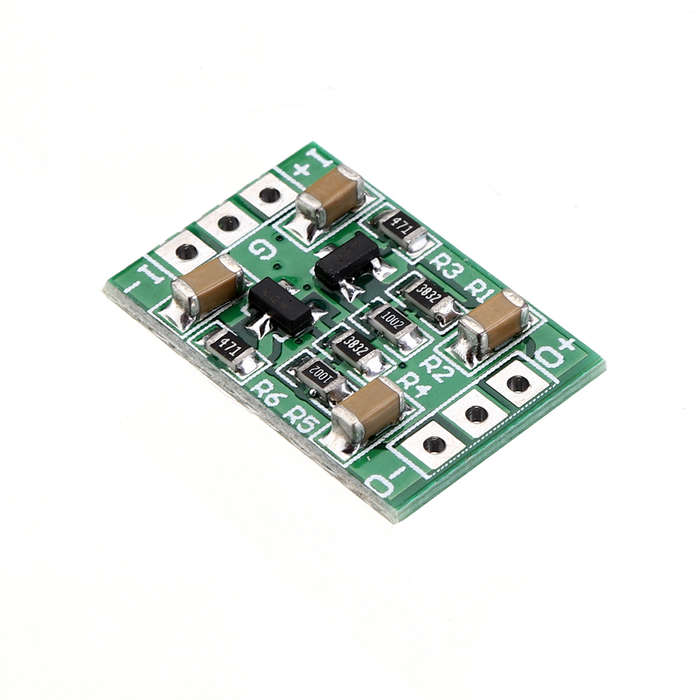

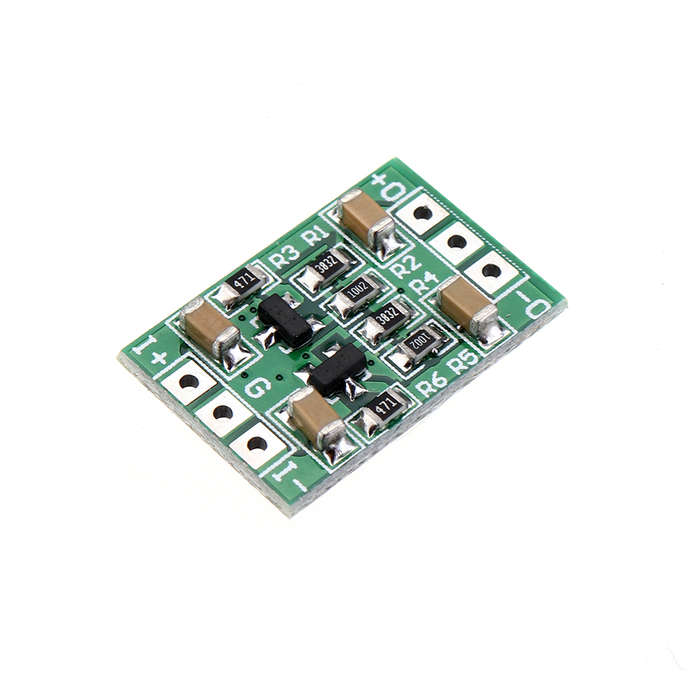

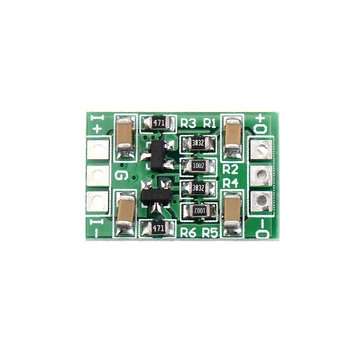

Description: TL431 Positive & Negative Dual Output ±1% Precision voltage reference Module
±10V:
Input Voltage ±11-17.6V,Output Voltage ±10V
Input Current 3-15MA,MAX Output Current 1-13MA
Accuracy: ±1%
Operating temperature range: -40~+125 Degrees Celsius
Storage temperature range: -65~+150 Degrees Celsius
2.54mm pin pitch, for MCU Development Board Breadboard friendly.

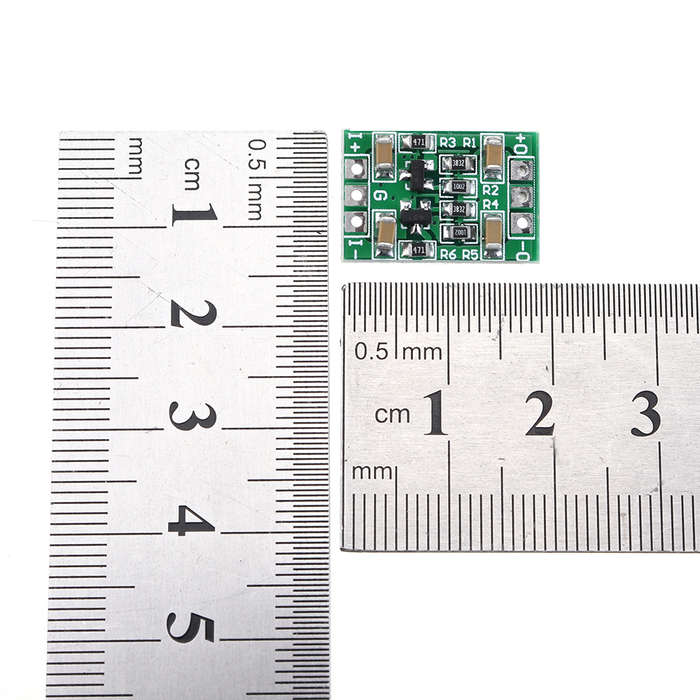

Size : 19 x 13 x 2.8mm
Weight: 0.9g

Note:

1. This is a voltage reference source, and its output current is small and cannot be used as a power supply.
2. If the input voltage is too small or the output current is too large, the output will be distorted.
3. If the input voltage is too large, the module will heat up.
Applications: Operational Amplifier: LM324 LM358 AD101 AD201 Etc.
ADC: ADC0809 MAX160 AD7705 Etc.
DAC: DAC0832 PCF8591 TL5615 MPC4822 TL5610
Replace: AD584 LM399LM4040MC1403 LM326 AD637 AD584
Audio equipment
RS232 RS485 RS422 Bus
LCD power supply
Instrumentation equipment
Wifi/Router/Ethernet devices
Package includes: 3x TL431voltage reference Module
