3pcs 12V XH-W2060 Embedded Digital Thermostat Cabinet Freezer Cold Storage Thermostat Temperature Co

20 available / new

R631.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3503

93.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643363921

Feature:

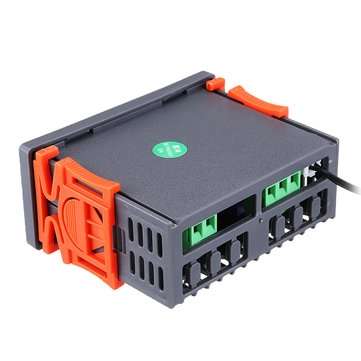

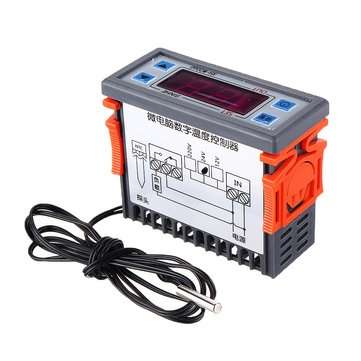

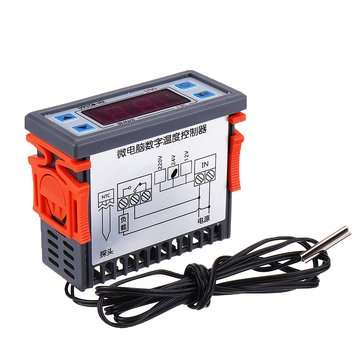

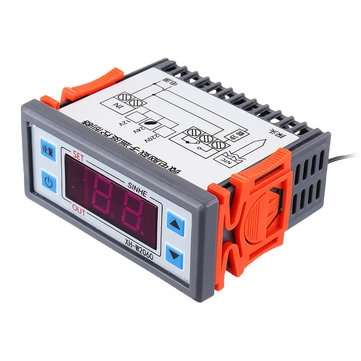

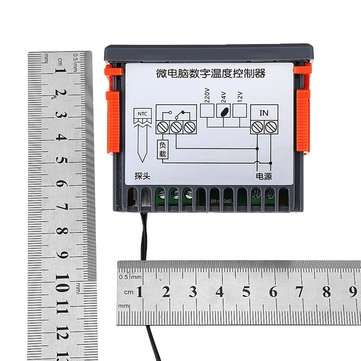

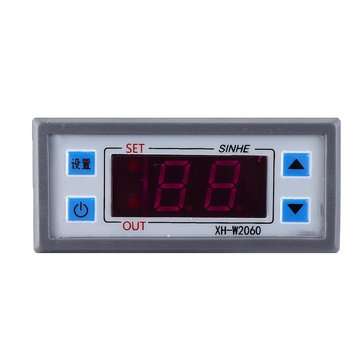

Product Name: Digital display embedded cabinet thermostat Product model: XH-W2060 Temperature range: -19~99 C Control range: -19~99 C Temperature control accuracy: 1 C Measurement input: NTC10K waterproof probe L = 1 m Refresh rate: 4 times / sec Use environment: -30~60C Humidity 20%-85% Use environment: 12/24/220V optional Output type: Relay output up to 10A Appearance size: 77 x 62 x 34.5mm Opening size: 71 x 29mm Other functions: Power-off memory, state memory, temperature correction, delay start

Code	Code Description	Setting Range	Factory settings	Unit
P0	Operating mode	C/H	C	/
P1	Hysteresis setting	0.1-50	2	C
P2	Temperature correction	-9~9	0	C
P3	Delayed start	0-9	0	Minute
P4	High temperature alarm	-19~99	99	C

P0: Temperature control mode C: Cooling mode H: Heating mode P1: Difference setting For example: P1=5 Cooling mode: When the detected temperature reaches the stop temperature, the relay is disconnected, the cooling is stopped, the temperature rises by 5 C, and the relay closes again. Heating mode: When the detected temperature reaches the stop temperature, the relay is disconnected, the heating is stopped, the temperature drops back to 5 C, and the relay closes again. P2: Temperature correction If the detected temperature and the actual temperature deviate, you can use this function to correct. Actual value = measured value + corrected value. For example, if the measured temperature is 25 C and the actual temperature is 26 C, then P2 can be set to 1, then The final temperature is 25+1=26 P3: Delayed start This function is used for compressor cooling. If it is used in a refrigerator freezer, this value must be set. According to the compressor back pressure, the value is usually set to 3-6 minutes. P4: High temperature alarm Set the high temperature alarm value. When the detected temperature exceeds this value, the screen flashes and the buzzer sounds an alarm.
Package includes:

3 xDigital display embedded cabinet thermostat
