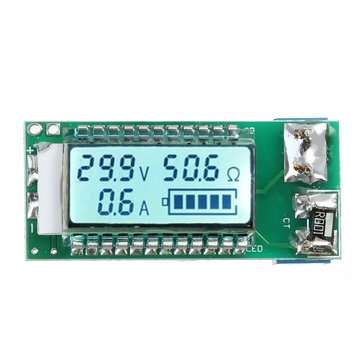

3pcs 18650 26650 Lithium Li-ion Battery Capacity Tester LCD Meter Voltage Current Capacity

Features:

Voltage: 2.8-30.0V
Current: 0-10.0A
18350/18650/26650
Resolution: 0.1
Accuracy: ±2%
Measure: Voltage/current/capacity/the load resistance

All in one meter
Suitable for: 18350 18650 26650 lithium li-ion battery and other battery for DIY project

Function description:

Measure the battery voltage
Range: 2.8~3.0V
Resolution: 0.1V
Accuracy: 2%
Measure the battery capacity
Battery capacity is the battery grid form on the LCD display, a total of five girds.
Battery capacity is distinguished by the battery voltage
Displaying X0 grids stand for full capacity, X1 girds for 4/5 capacity, X2 grids for 3/5 capacity, X3 grids for 2/5 capacity, X4 grid for 1/5 capacity, X5 grid for 0/5 capacity.
(default: 3.7V full capacity, 2.8V is exhausted)
Can be set the full capacity 2.9v-30.0V, the exhausted 2.8V-29.9V

Measure the current:

Range: 0.0~10.0A
Resolution: 0.1A
Accuracy: 2%

Measure the resistance of the current:

Range: 0.0~10.0A
Resolution: 0.1A
Accuracy: 2%

Measure the resistance of the load:

Range: 0~999, when over 999 display aOLa
Resolution: when less than 10, resolution is 0.01
When less than 100, resolution is 0.1
When less than 1000, resolution is 1
Accuracy: 2%
With Backlight, default off-backlight, you can turn on/off the backlight by button

Specifications:

Size: 42 x 19 x 12mm
Display size: 25 x 12mm
Note: battery: a2.8V
Working temperature: -10a to 40a

Package included:

3 x Lithium Li-ion battery tester module
