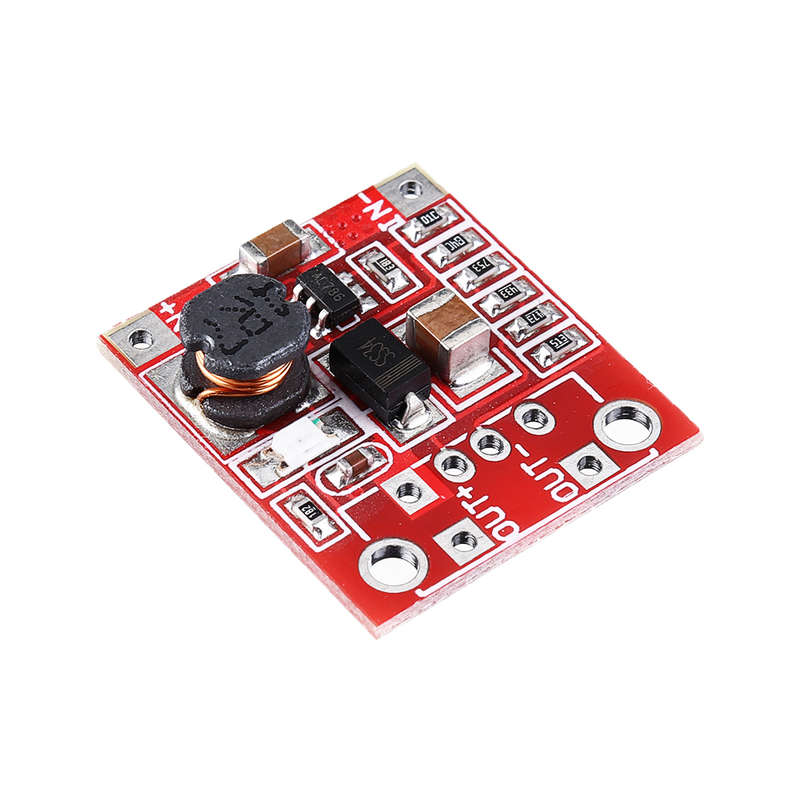

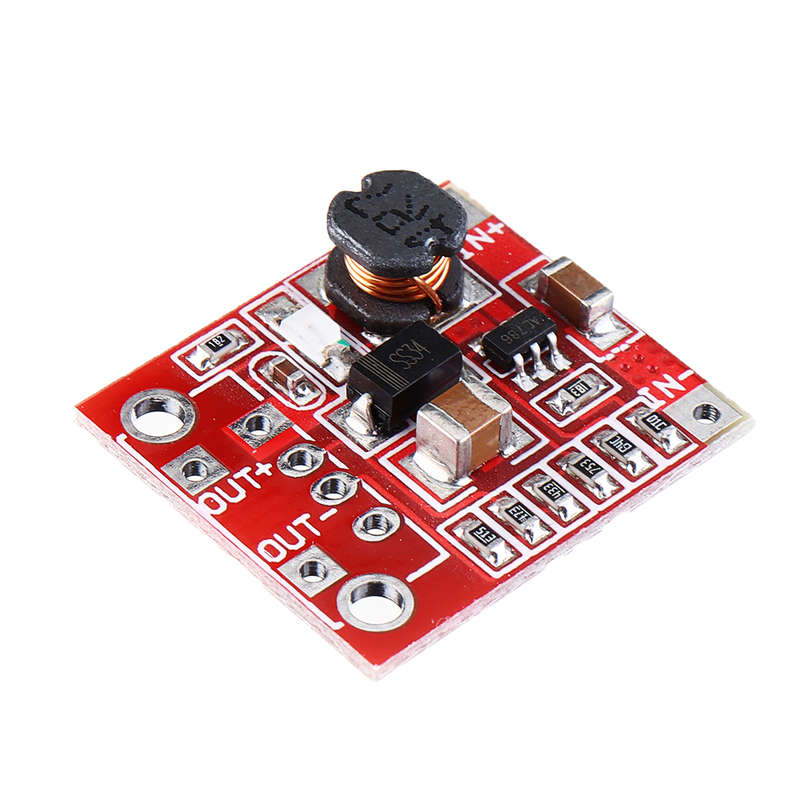

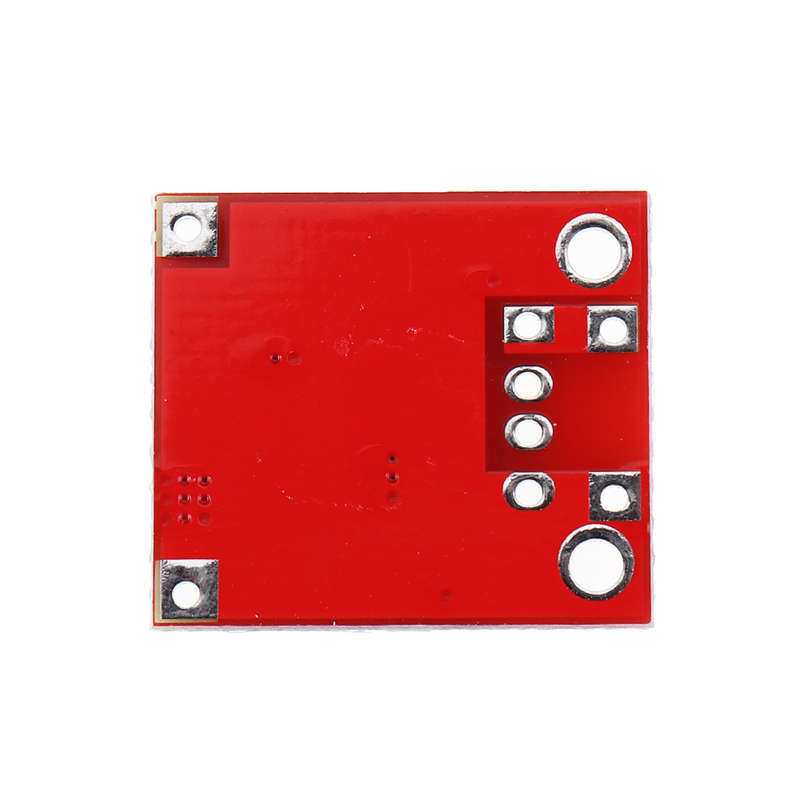

3pcs 1A DC-DC 3V to 5V Converter Step Up Boost Mobile Power Supply Module

20 available / new

R366.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.39 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641107969

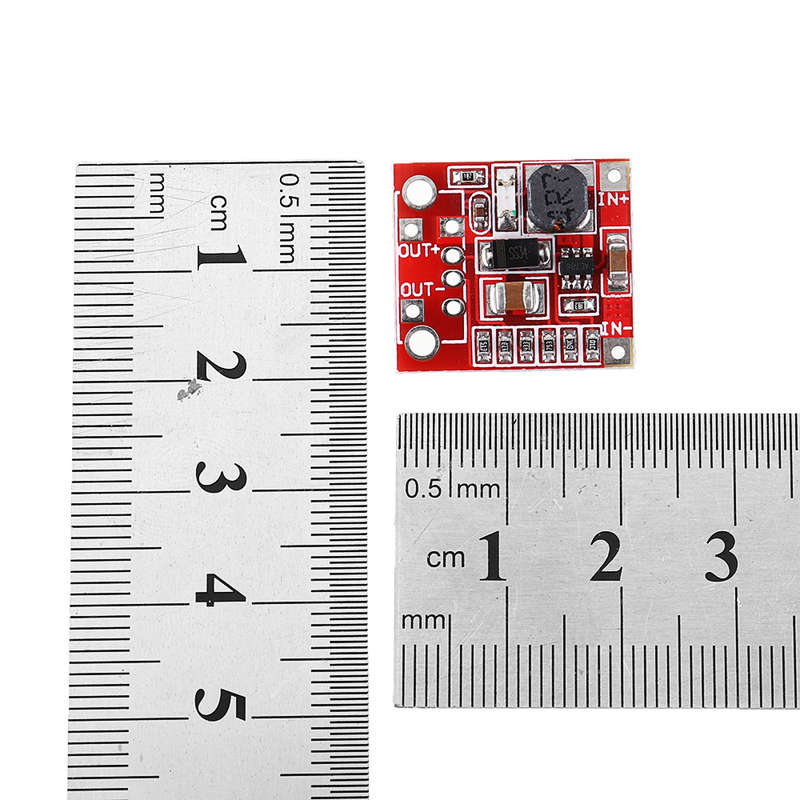

Feature: Size: 20 x 20 x 5mm/0.78 x 0.78 x 0.19(inch) (approx) Module properties: non-isolated boost Rectification: non-synchronous rectification Input voltage: 2.5V-6V Output voltage: 4V-12V (adjustable) Output current: 1000mA (Max) Conversion efficiency: 92% (the highest) Switching frequency: 1MHz Output ripple: 20mV (max) Load regulation: &pm; 0.5% Voltage regulation: &pm; 2.5%

Note: Formula output: VOUT = (R1/R2 +1v) * 0.6V Default resistance: R1 = 150K R2 = 20K (unit:ohm) By adjusting the voltage of this formula, which is calculated by the formula resistors, R1 or R2, replace the resistor can be calculated on the desired output voltage. The R1, R2 can be removed and replaced with other resistance. Example: I want the output voltage is 8V, then want to replace R1 , then 8 = (R1/20K +1) * 0.6, calculate R1, put on it. Package includes: 3 x Module
