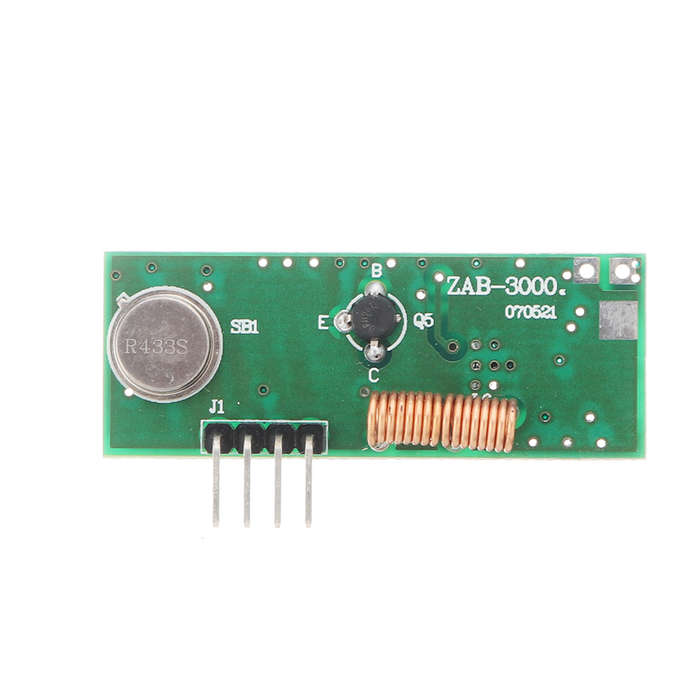

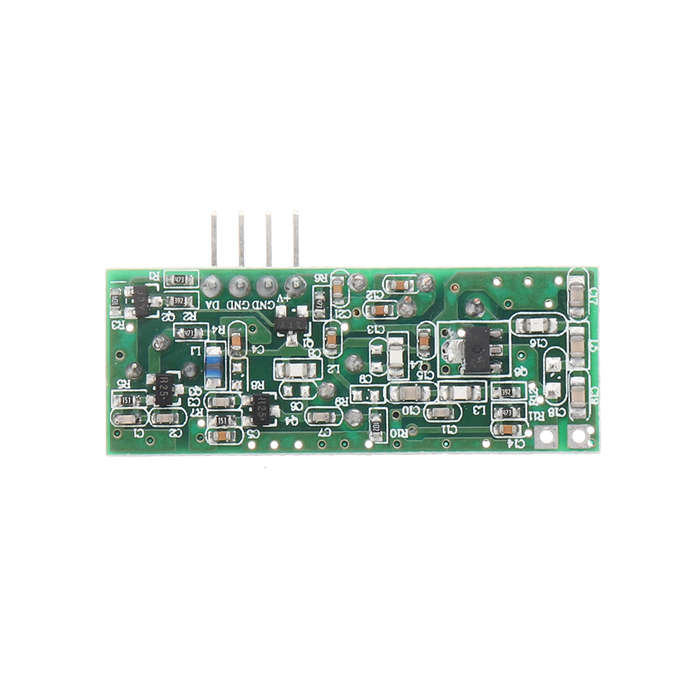

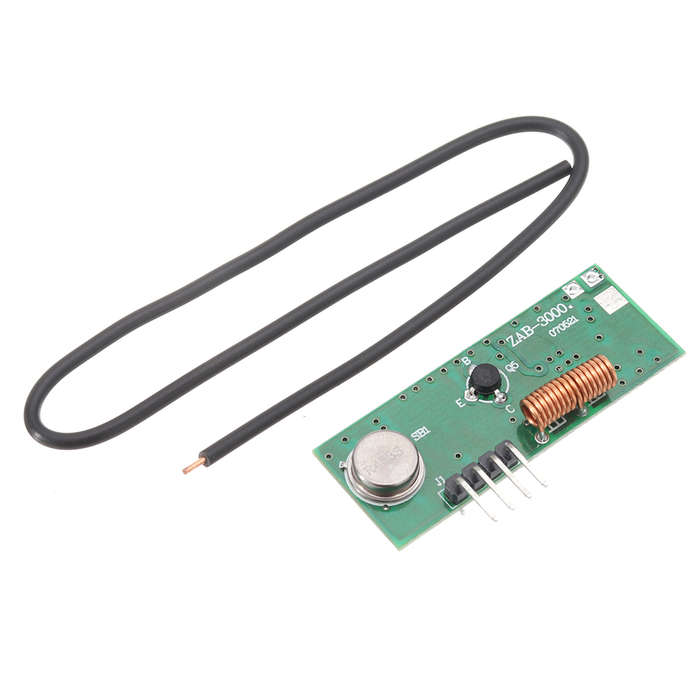

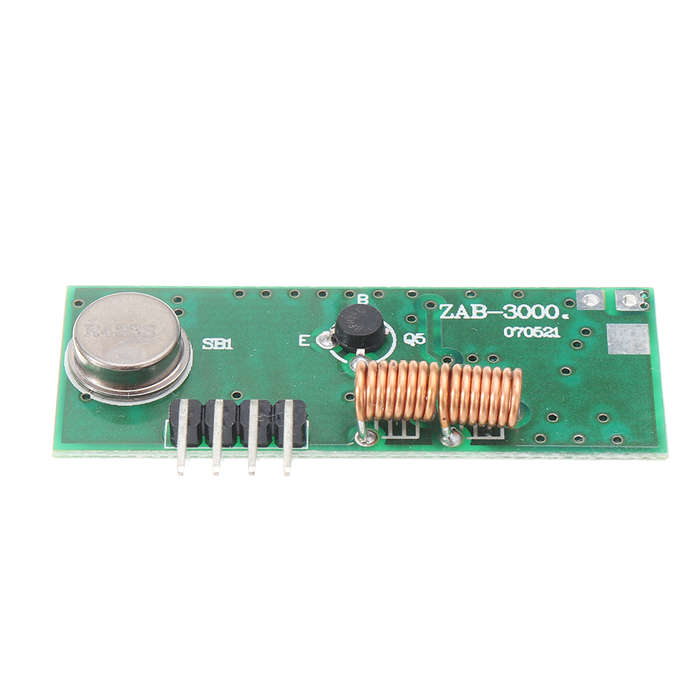

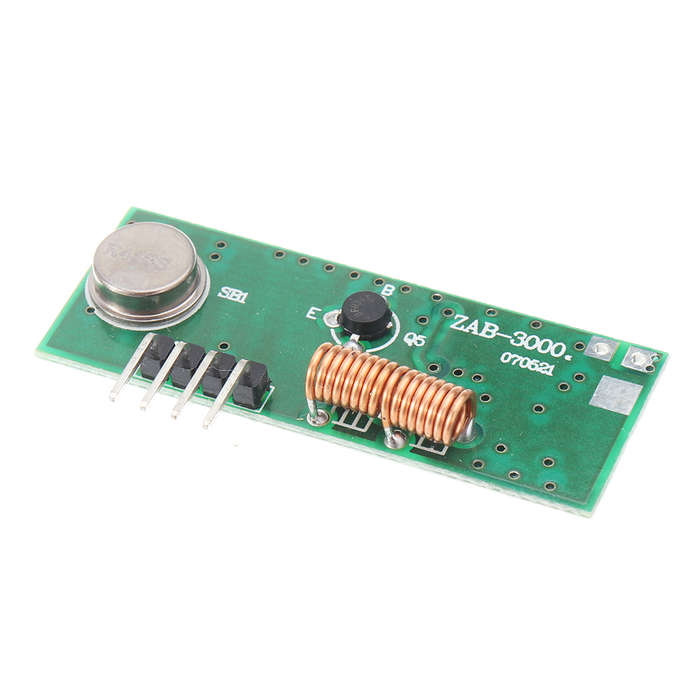

3pcs 315MHZ High Power Wireless Transmitter Module 3000M Long Range ASK Transceiver Board

New

20 available

R612.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4030

92.40 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654083146

Feature:

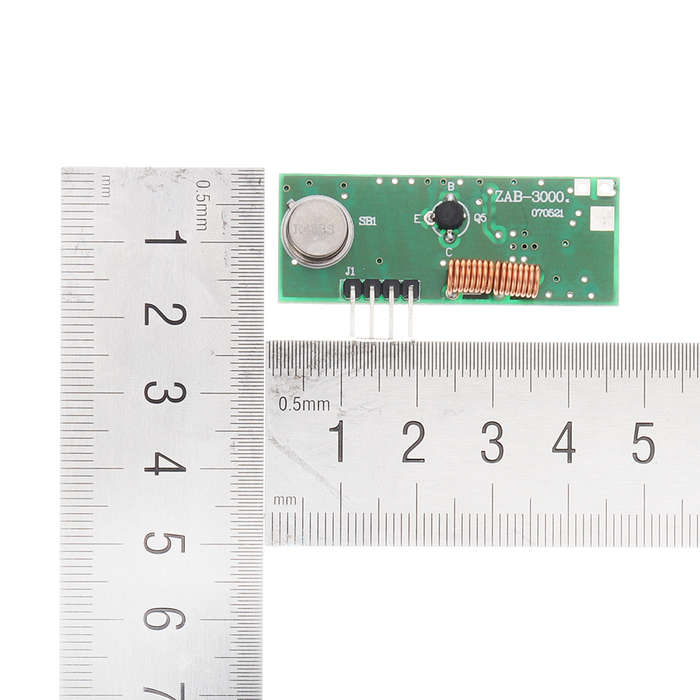

Product Name: Wireless 3000m Transmitter Module Product type ZAB-3000 (without coding) Dimensions : 45mm*17mm*6.2mm Working voltage: DC 9V ~12V Working current: 200~220mA Operating frequency: 315MHz Transmit power: >10mw Launch distance: 2000-3000 meters Radiated power: 1.5 W Modulation method: ASK Quiescent current: 0uA

Rated parameter	Symbol	Value
DC supply voltage	VDD-VSS	5V
Storage temperature range (TS)	TSTG	-12ﾣC to 75ﾣC
Welding temperature	+260ﾣC

	PIN	Description
1	ANT	RF signal input pin, this pin should be connected to the antenna
2	VSS	Positive power supply
3/4	GND	Negative power supply
5	DATA	Data signal output, compatible with CMOS levels
