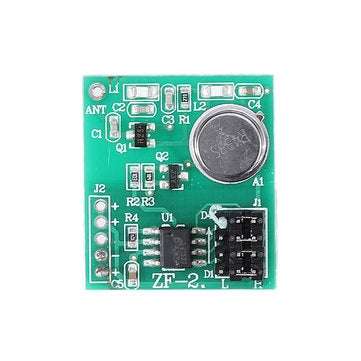

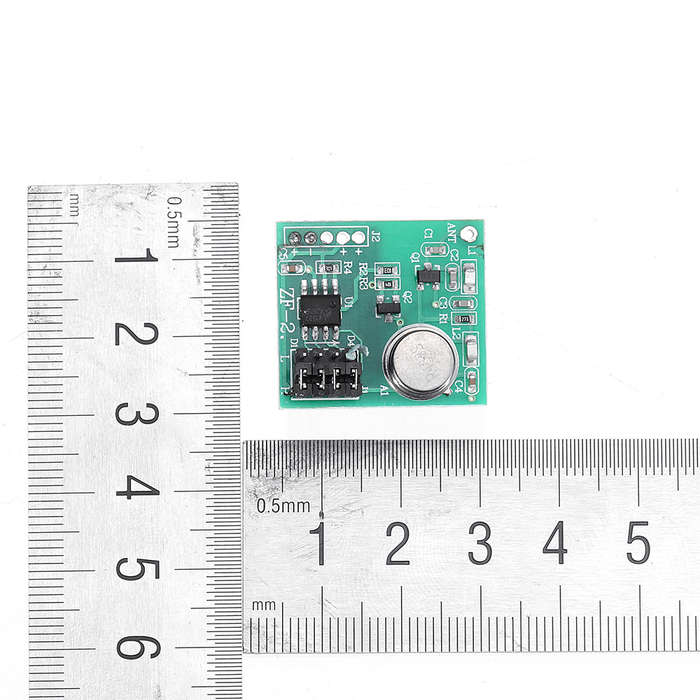

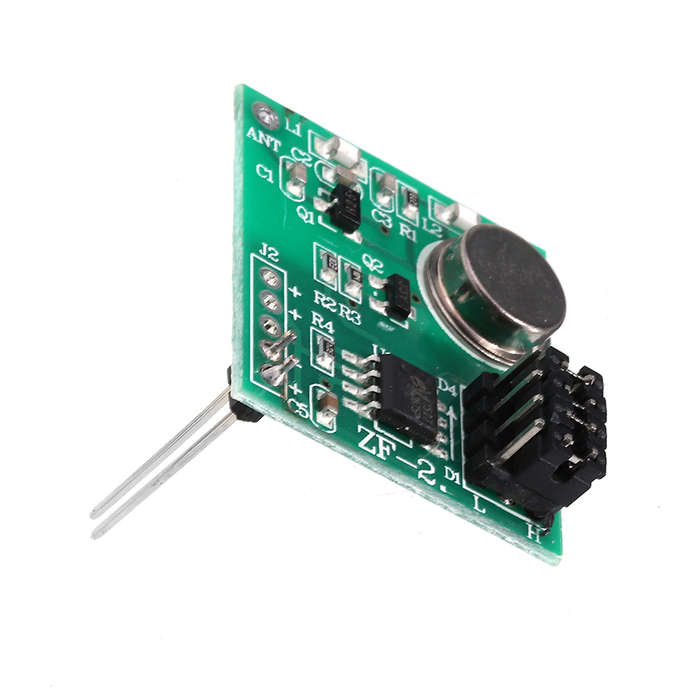

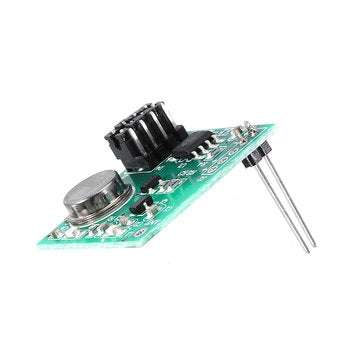

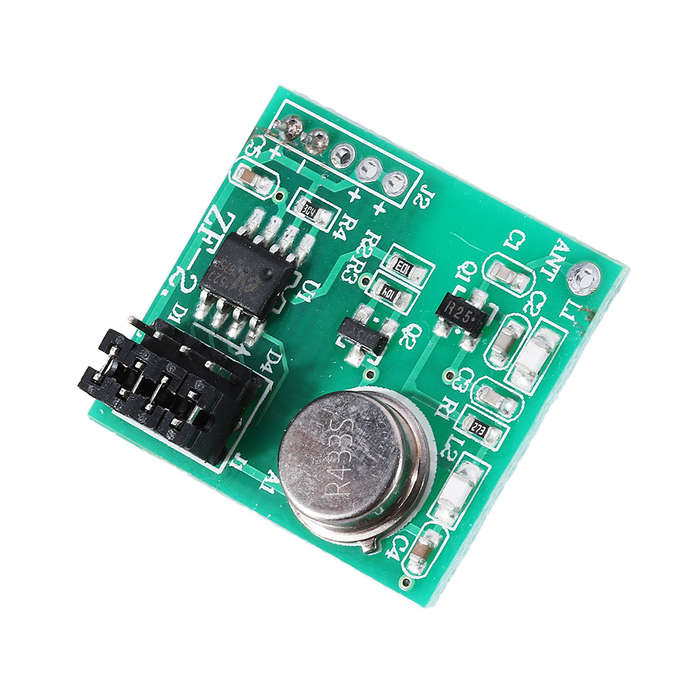

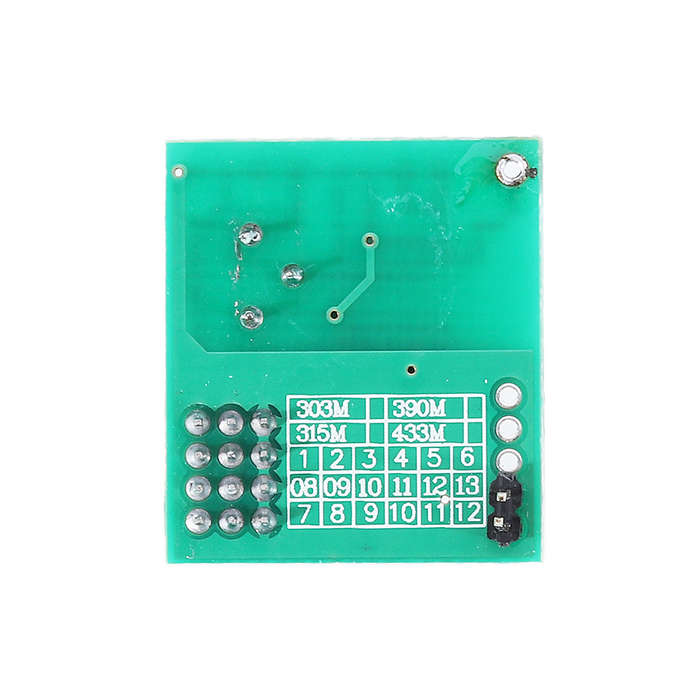

3pcs 315MHZ Wireless Transmitter Receiving Module ASK DC 9V-12V EV1527 Remote Control Switch Board

New 20 available
R420.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654083147
Technical request : Product model: ZF-2 (with code) Transmission frequency: 315MHZ Working voltage: DC 9V ~12V Modulation method: ASK Quiescent current: 0uA Working current: 8~10mA Coding type: learning code (EV1527) Radiated power: 10~15mW Shooting distance: 100-200 meters (receiver sensitivity -108dBm) Volume: 26.3mm*23.3mm*9mm

PIN NAME Function
1 ANT RF signal input pin, this pin needs to be connected to the antenna
2 12V- DC power supply negative input pin
3 12V+ DC power supply positive input pin

Rated parameter Symbol Value
DC power supply VDD-VSS 9V-12V
Storage temperature range (TS) TSTG -12C to 75C
Welding temperature +260C



Package includes:

3 x Receiving board
