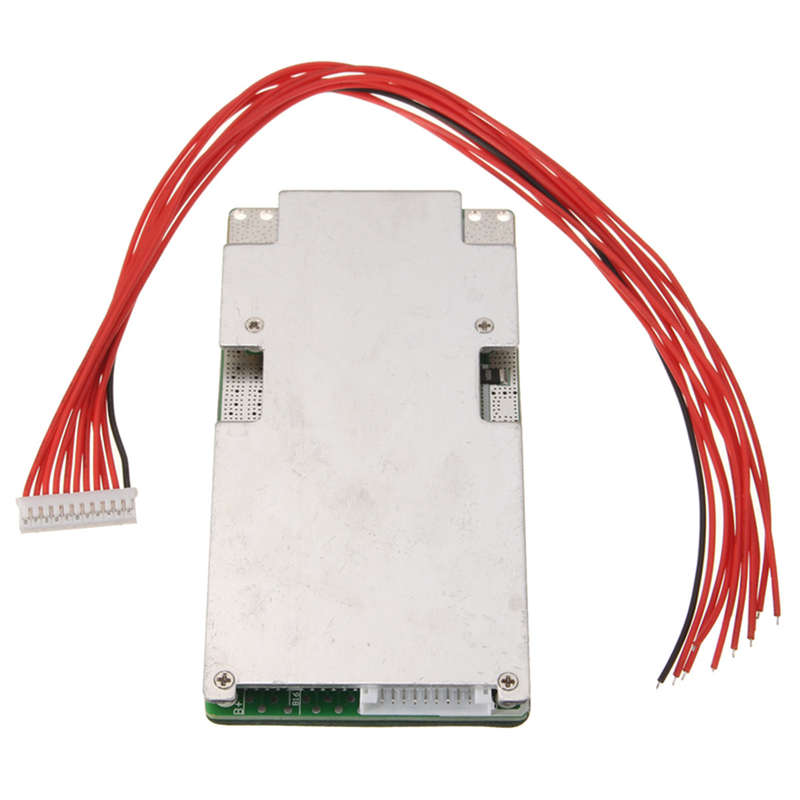

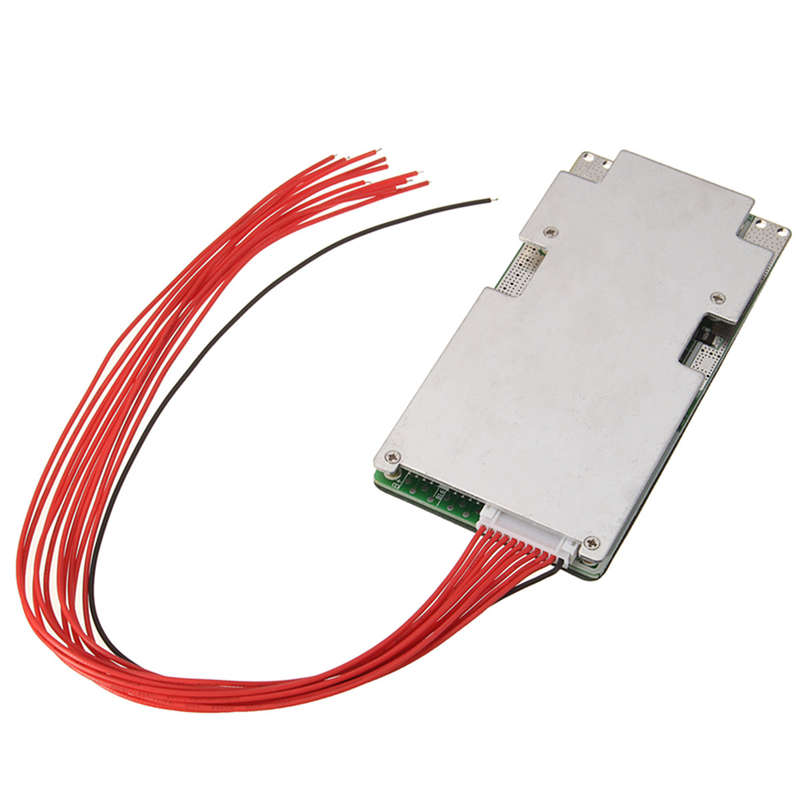

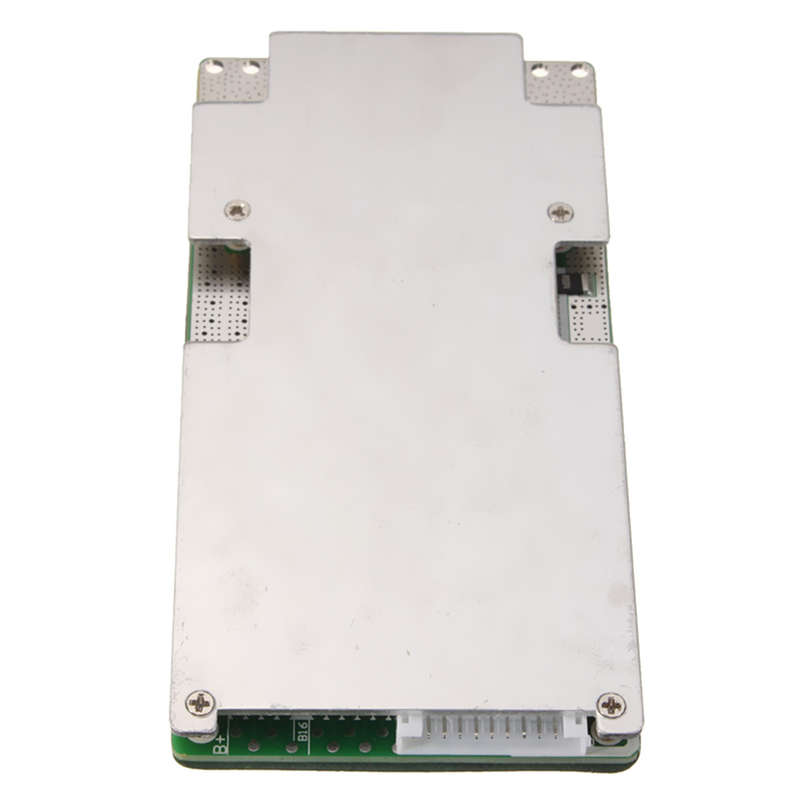

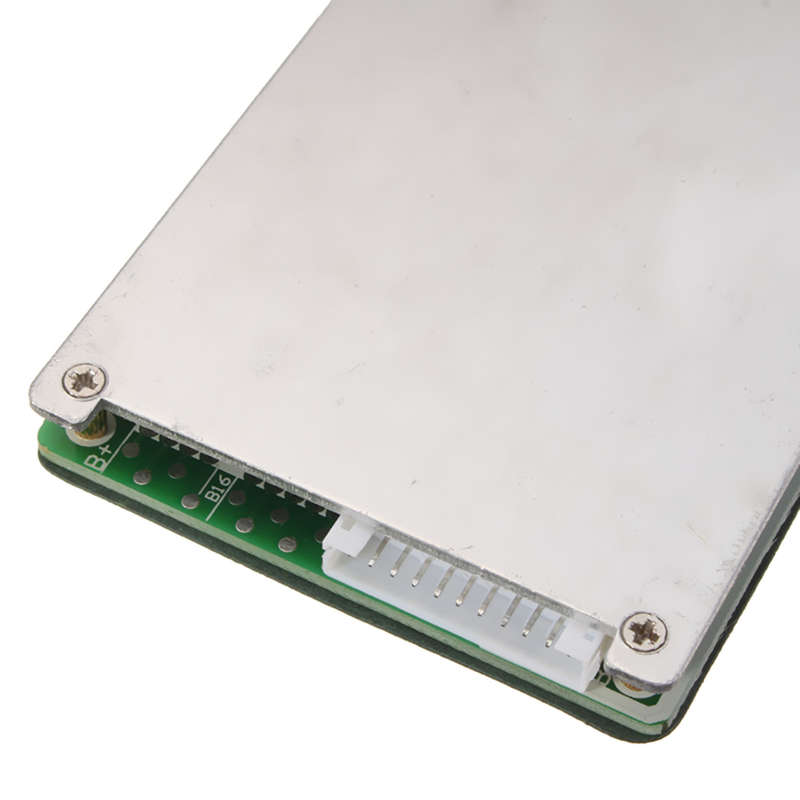

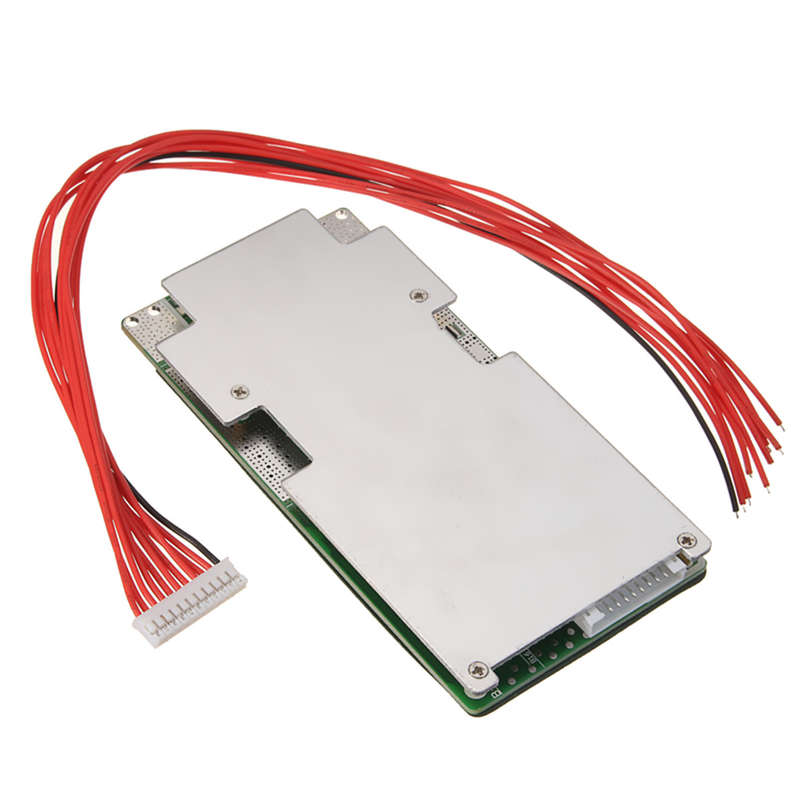

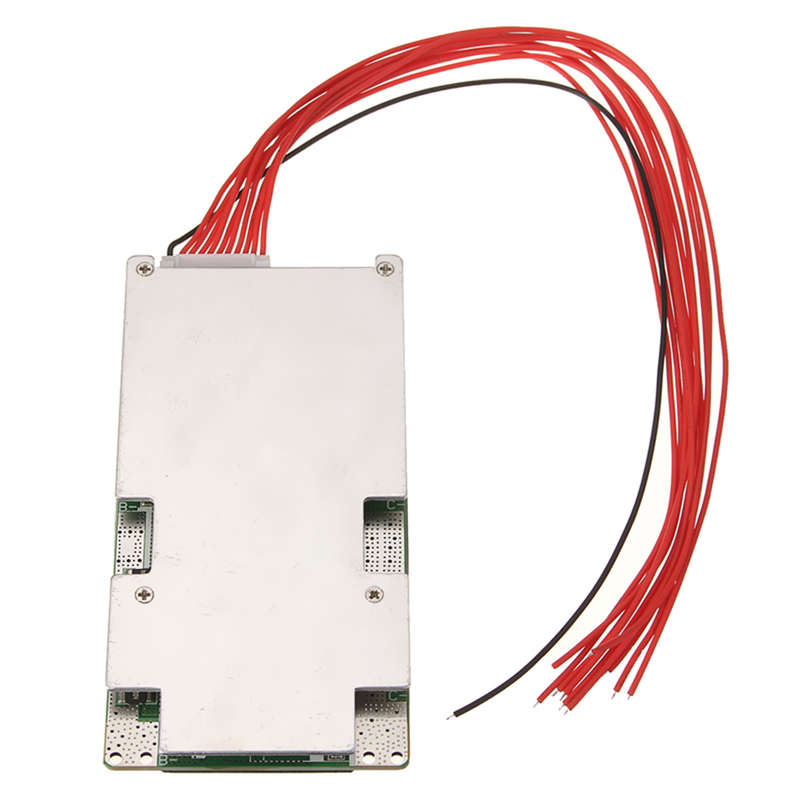

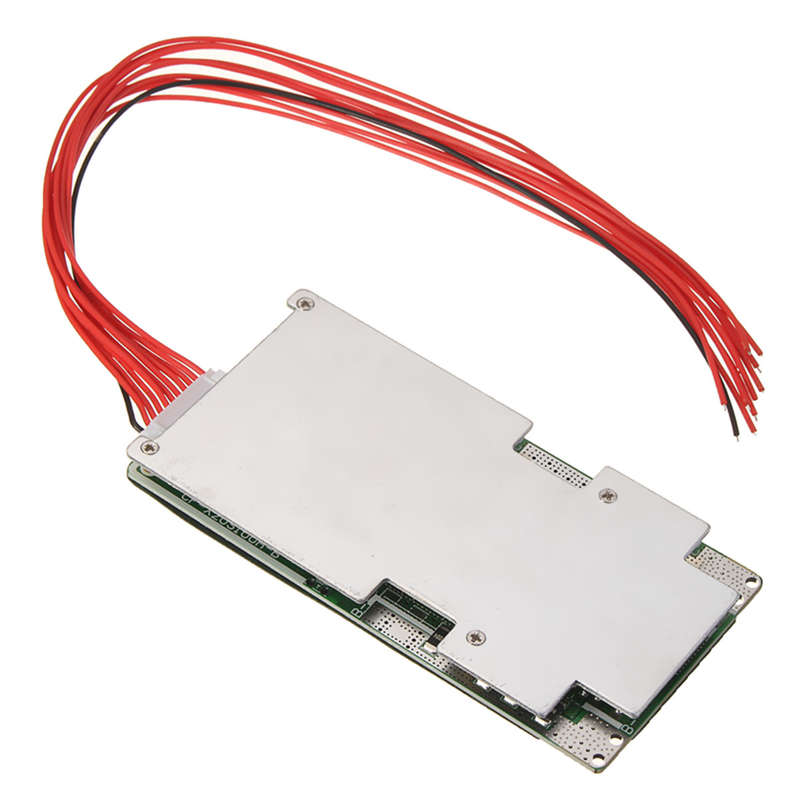

3pcs 37V 42V 10S 45A Li-ion Battery Protection Board BMS PCB System

20 available / new

R1,020.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3629

93.02 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

645860352

Specifications:

Continuous discharging current: 45A
Instantaneous diacharge current: 100A
Charging voltage: 42V
Charging current: 45A
Over-charge detect: 4.28&pm;0.05V
Protect delay: 100ms
Over-charge release: 4.08&pm;0.05V

Balance:

Detect voltage: 4.2&pm;0.025V
Release voltage: 4.2&pm;0.05V
Balance current: 60&pm;5mA
Over-discharge: 2.55&pm;0.08V
Over-discharge detect delay: 50mS
Release voltage: 2.9&pm;0.1V
Detect voltage: 150mV
Detect delay: 15mS
Current detect: 130&pm;10A
Resistance: a15m
Working current:a 50uA
Sleep current(when over-discharge): a10uA
Working temperature: -30 to 80a
Size: 120 x 60 x 9mm

Main function:

Over charge protection, over discharge protection function, short circuit protection
function, over current protection function,with band balance.

Connections:

Step1: Connect charging /discharging wire , battery pack negative wire
Step2: After confirm the wires are connected OK, plug the connector cable in the BMS
DO NOT plug CONNECTOR CABLE in the BMS before connect wire!!
Attention, ESD protection during work

Package included:

3 x 10S 45A Protection board

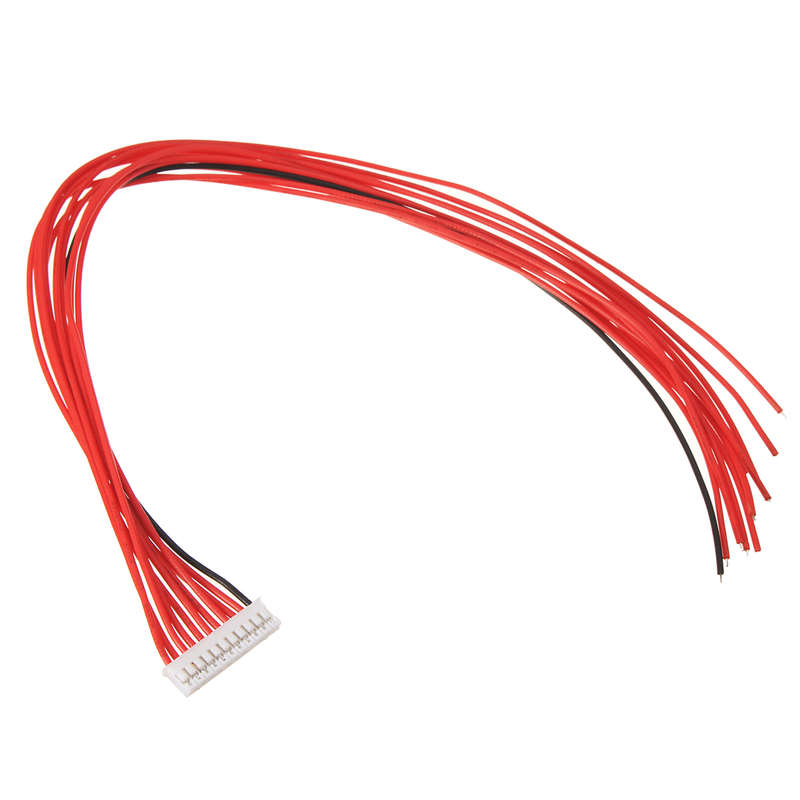

3 x Cabel
