3pcs 4 Channel DC5V 280MA Self-locking Relay Module Trigger Latch Relay Module Bistable

20 available / new

R686.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641108110

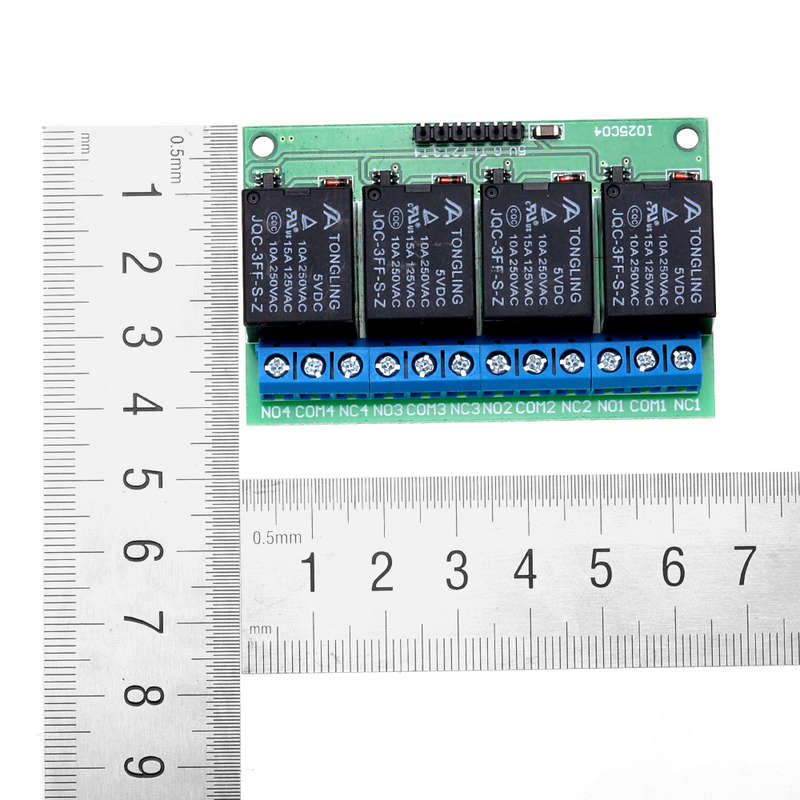

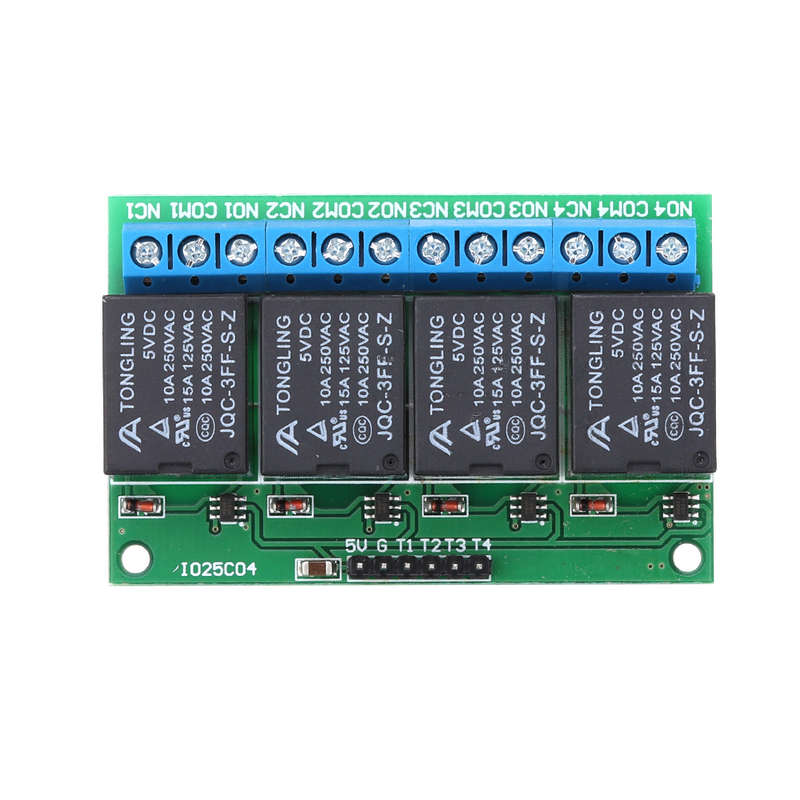

Description: Working voltage: DC 5V Working current: 4 relay 280MA Standby current: 4UA Load current: AC 250V / 10A, DC 30V / 10A Trigger mode: Low pulse trigger Size: 65mm * 42mm * 19mm (L * W * H), Small size Weight: 52 g USE 1: By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on. USE 2: By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the third low-pulse, the relay pull, and so on. Module interface: 1. VCC: positive power supply (VCC) 2. GND: negative power supply (GND) 3. T: Low pulse trigger Relay outputs: 1. NO: normally open relay interface 2. COM: Common Interface Relays 3. NC: normally closed relay interface USE: By default, the relay is released, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on Typical applications: Automotive electronics Motor LED Smart Home Emergency lighting MCU development board Toy car

Package includes:

3 x Relay module
