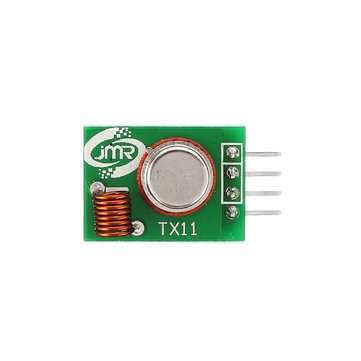

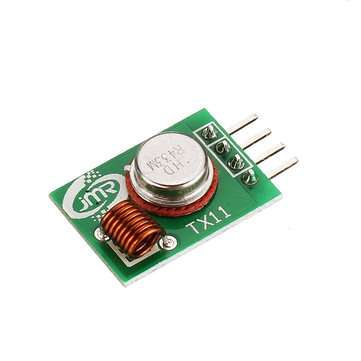

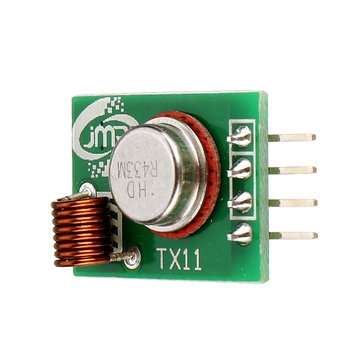

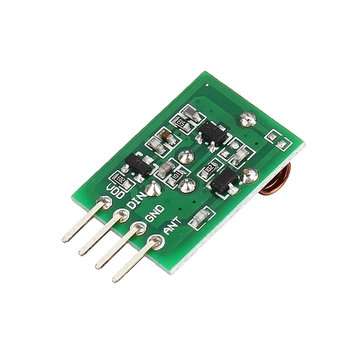

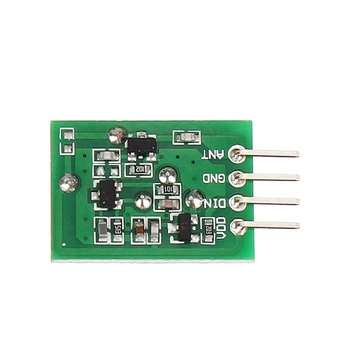

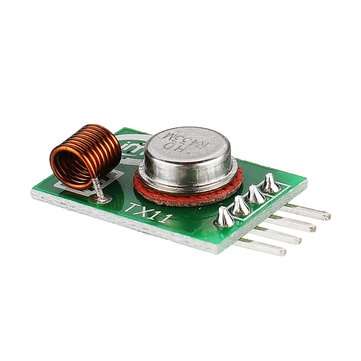

3pcs 433MHZ ASK Wireless Transmission Module TX11 High Power Module Infinite Emission Circuit Board

Features: (1) The transmission power is large, and the transmission power is greater than 30 mW; (2) Wide operating voltage, 2.5V-9V; (3) Operating frequency: 433.92 MHz (4) Using SAW frequency stabilization (+-75KHZ), the working frequency is stable; (5) With the RXB8 receiving module, the distance can reach 800 meters; (6) Static power consumption Low emission is current consumption: 10mA, there is basically no current consumption when there is no data transmission; (7) Working temperature: -20 ﾣ C ~ +60 ﾣ C; (8) Dimensions: 15x21x5.5mm;
(9) Modulation rate: 3KB/S (10) Input signal: TTL level. Application range: (1) Car remote control door switch (RKE); (2) Remote control door opener and gate; (3) Wireless security alarm; (4) Remote control curtain machine; (5) Wireless industrial controllers; (6) Wireless data transmission.

Package includes:

3 xASK Wireless Transmission Module
