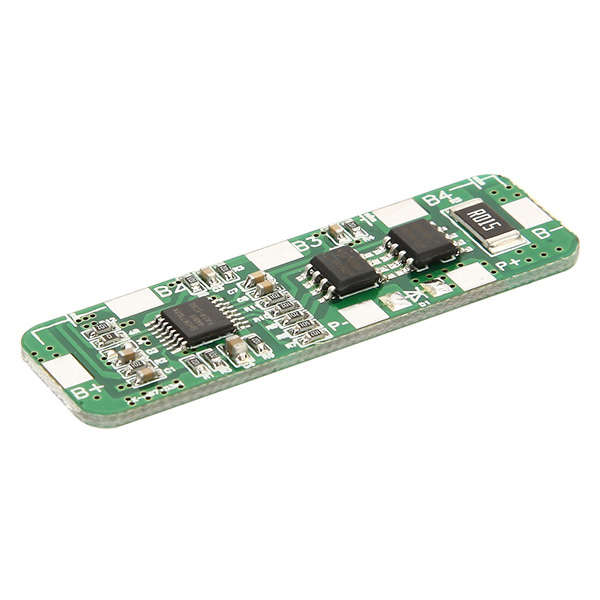

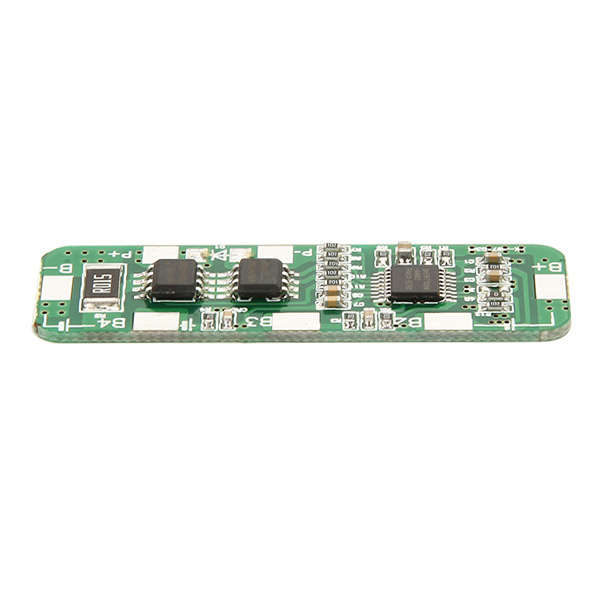

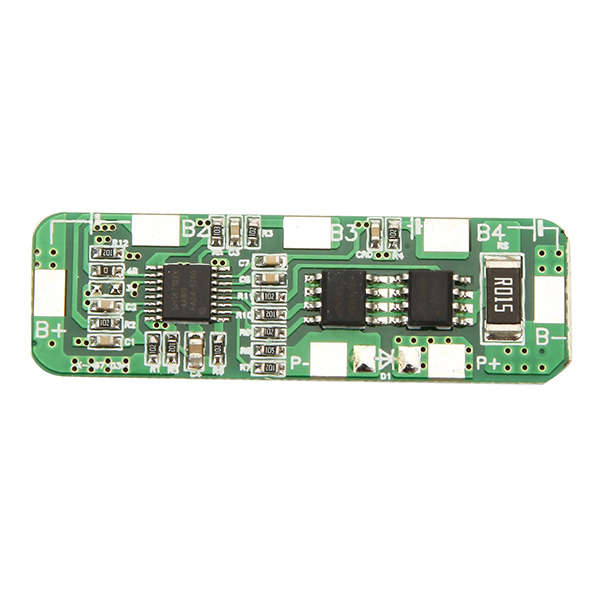

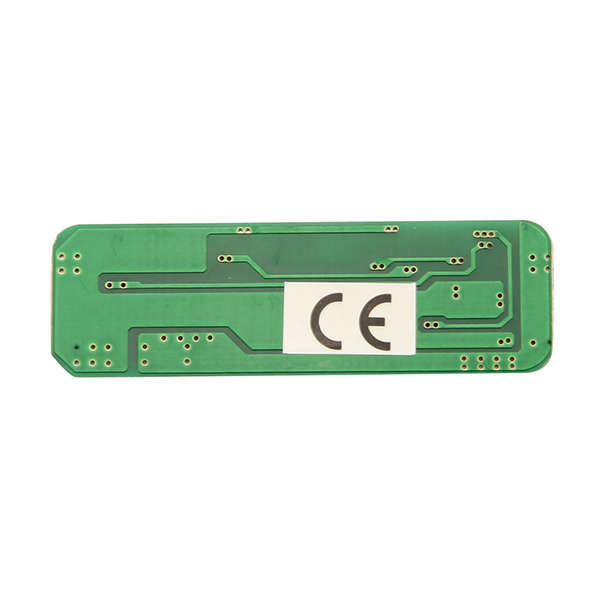

Name: 3Pcs 4A-5A 4 String 18650 Li-ion Lithium Battery Cell Protection Module Board
SKU: 1290297
Price: 187.00 ZAR
Availability: SoldOut

3Pcs 4A-5A 4 String 18650 Li-ion Lithium Battery Cell Protection Module Board

30 were available / new

Indicative market price: R399.00

R187.00

53% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Product code

1290297

Bob Shop ID

368310661

Package weight: 0.03 kg
Description:
Model: HH-P3-10.8
Charging voltage range: 4.25-4.35v ± 0.05v
Dimensions: 48 x 15 x 1.0mm
Over-discharge voltage range: 2.3-3.0v ± 0.05v
Maximum operating current: 4-5A
Operating temperature: -40 to + 50 ￢ﾄﾃ
The maximum instantaneous current: 6-7A
Storage conditions: -40 to + 80 ￢ﾄﾃ
Quiescent Current: less than 6uA
Effective life: more than 50,000 hours
Resistance: less than 45mΩ
Short circuit protection: Protect, need to be recharged recovery
Main functions and features:
Over charge protection, over-discharge protection, short circuit protection, overcurrent protection.
The protective plate using Japan's Ricoh rechargeable lithium iron phosphate battery protection IC;
High-accuracy voltage detection circuit;
Terminal of the charger using high voltage devices;
Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit);
MOS transistor can be controlled by a battery charge and discharge;
Low standby current consumption.
Function and Description:
1.the lithium battery with protection board according to wiring diagram, when the battery voltage is overcharge and over-discharge voltage between the voltage, and P +, P- 1 second after charging, P + and P- output voltage of the battery voltage.
2.Battery charge function: between P + and P- plus charger, battery charging, the battery voltage charge to overcharge detection voltage (4.25 ± 0.025V), the protection circuit to cut off the charging path, to achieve overcharge protection.
3.Battery over-discharge protection: in between the P + and P- connected load to the battery discharge when the battery voltage drops to over-discharge voltage (2.4 ± 0.08V), the protection circuit, shut off the discharge path to achieve the over-discharge protection.
4.Short circuit protection: When the P + and P- short circuit protection circuit will act quickly in 5-50uS, cut off access, short-circuit protection.
Overcurrent protection function: When the V- terminal voltage of (0.15 ± 0.02V), the protection circuit will act quickly in 6.7-13.9ms, cut off access, overcurrent protection.
Note: If the correct welding, testing with non-output, use other ways to activate charging about protection board!
Package included:
3 x 18650 Li-ion lithium Battery Cell
