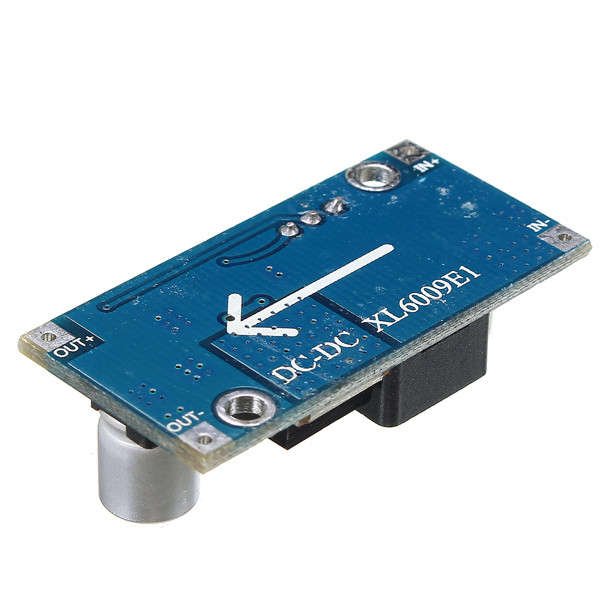

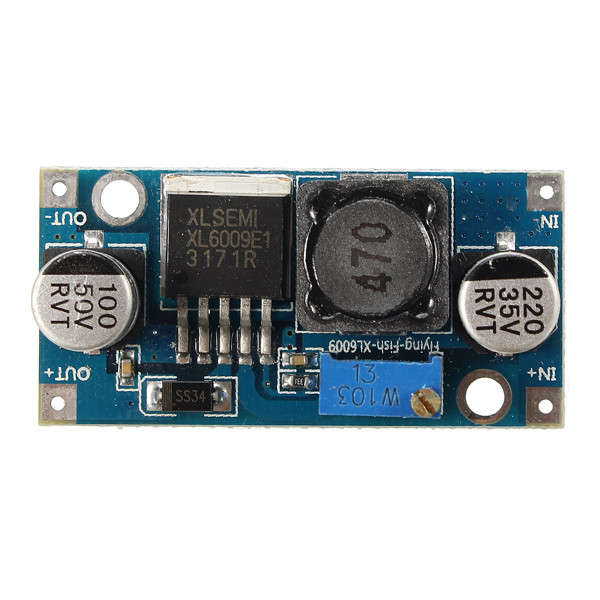

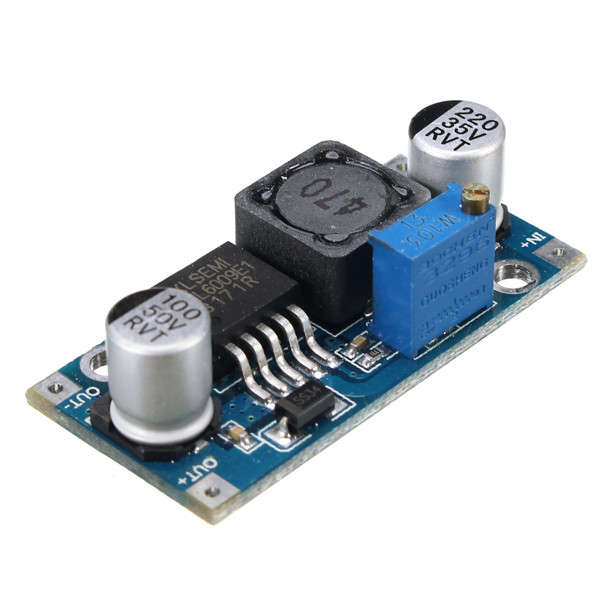

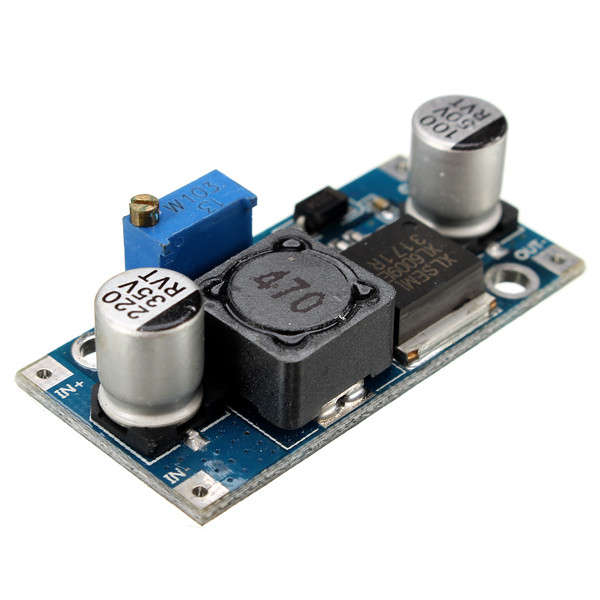

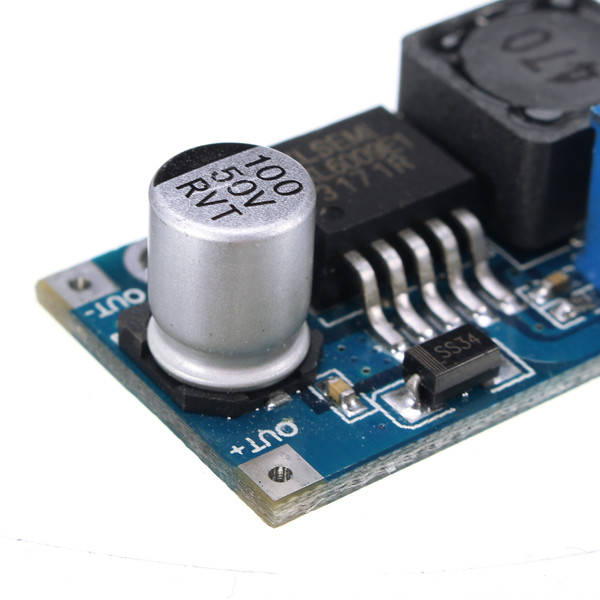

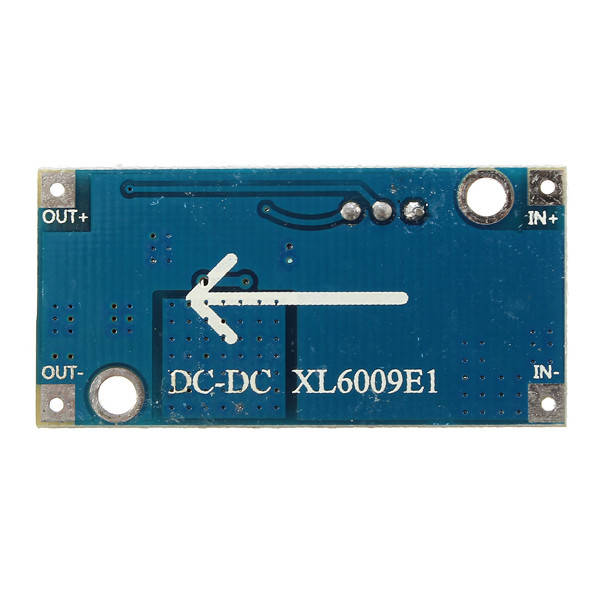

3Pcs 4A XL6009E1 Adjustable DC-DC Step Up Boost Converter Power Supply Module

Package weight: 0.03 kg
Description:

The XL6009 is a high-performance step-up (BOOST) module with 4A switching current. The module uses the second generation of high-frequency switching technology XL6009E1 as the core chip, performance far more than the first generation of technology LM2577. XL6009 step-up module cost lower, more excellent performance, LM2577 module is about to be eliminated.
ultra-wide input voltage 3V ~ 32V, the best working voltage range is 5 ~ 32V;
ultra-wide output voltage of 5V ~ 35V;
built-in 4A high efficiency MOSFET switch, the efficiency of up to 94%; (LM2577 current only 3A)
ultra-high switching frequency 400KHz, you can use a small capacity filter capacitor that can achieve very good results, smaller ripple, smaller. (LM2577 frequency only 50KHz)

Feature:

Module nature: Non-Isolated Boost (BOOST)
Rectification method: Non-synchronous rectification
Input range: 3V ~ 32V
Output range: 5V ~ 35V
Input Current: 4A (max), no load 18mA (5V input, 8V output, no load less than 18mA. The higher the voltage, the greater the no-load current.)
Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency)
Switching frequency: 400KHz
Output ripple: 50mV (the higher the voltage, the greater the current, the larger the ripple)
Load Regulation: ±0.5%
Voltage regulation: ±0.5%
Operating temperature: -40 ￢ﾄﾃ ~ + 85 ￢ﾄﾃ
Dimensions: 43mm * 21mm * 14mm (L * W * H)

Package included:

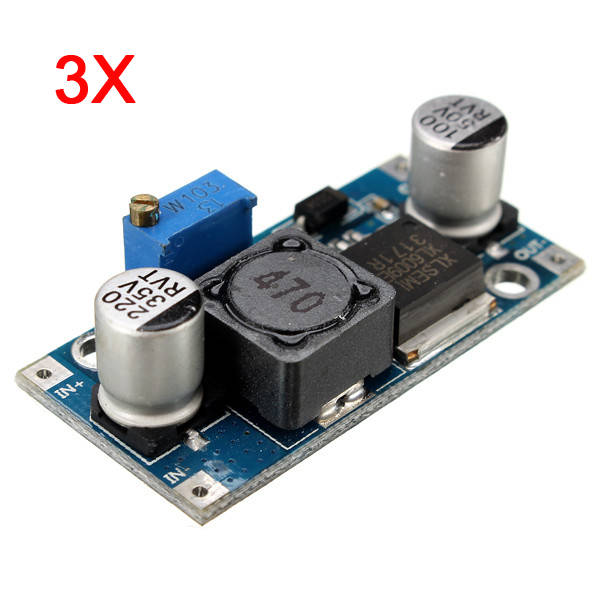

3 x 4A XL6009E1 Adjustable DC-DC Step Up Boost Converter Power Supply Module
