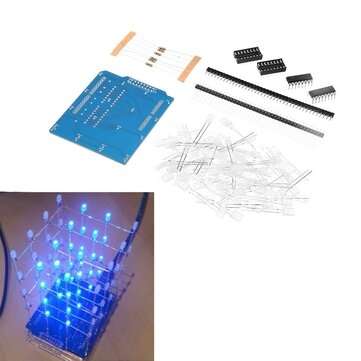

3pcs 4X4X4 Blue LED Light Cube Kit 3D LED DIY Kit For DIY Kit

Description:

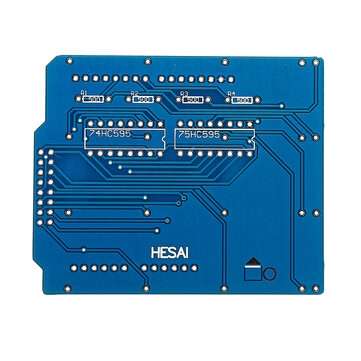

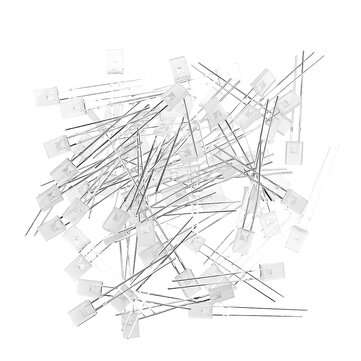

4x4x4 Light Cube kit uses 64 cuboid LED. Expansion board uses two 74HC595 shift register chips, using eight I/Os can light the 4x4x4 Light Cube, itas hardware resources needed is less than other 4x4x4 light cubic expansion board(needs 20 I/Os to control).

Circuit Description:

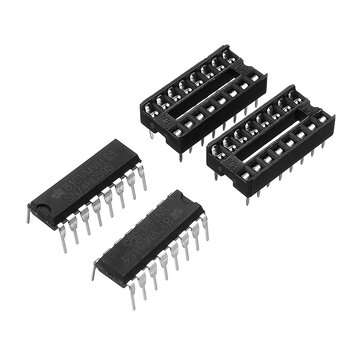

The display part of4x4x4 Light Cube kit consists of 64 cuboids LED, uses two 74HC595shift register chip to control LED anode, the 4 I/O ports controls 4 common cathodes of LED.

Parameters:

Control module: control board

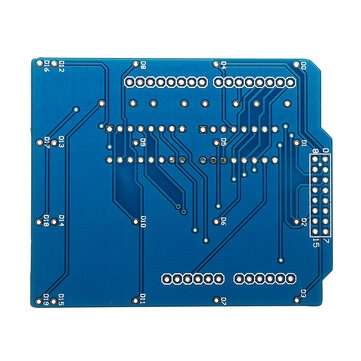

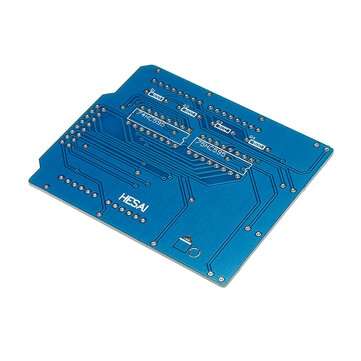

PCB size: 61*74mm
LED color: blue

Attention:

This kit is4x4x4 light cubic expansion board, without control chip or control module.

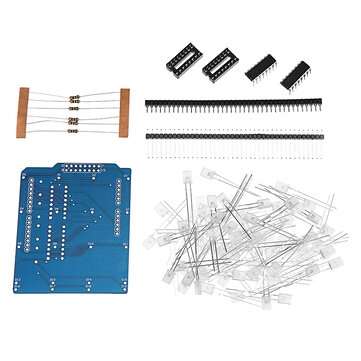

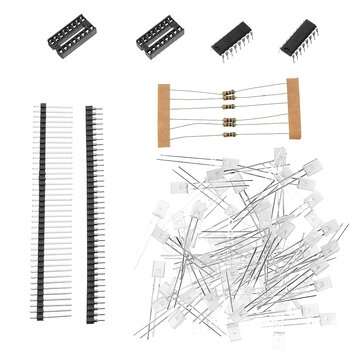

Package included:

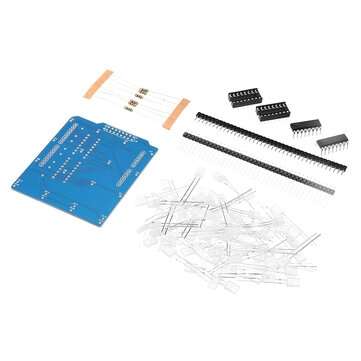

3 x4X4X4 Blue LED Light Cube Kit
