Description: Multifunction USB converter board fully supports Win8, Win7, WinXp,WinCE, Linux, 32-bit, 64-bit systems it!
The history of the most powerful USB serial debugging tools, set USB to serial (TTL), to 232, turn 485, TTL, 232,485 conversion six practical function in a professional debugging tools, and the other supports 3.3V, 5V Oh the power output. Module ingenious design, making the board at the same time put the heat shrink tubing protection, without affecting the operation of the module. Module easy to operate, simple and can be used for single-chip program download, serial communications, 485, etc., are carried out pro microcontroller development essential artifact! !
Module Features: Module size: A compact design, the module is only 3.5 * 1.8CM ultra-small size, even if the design is very compact laptop plugged module does not affect the other USB port to insert other devices.
Power Output: Supports 5V / 500mA, 3.3V / 100mA power output, you can easily give 3.3V or 5V power microcontroller download program.
Module Protection: onboard 500mA self-recovery fuse, always protect your computer from a large current module and harm; supporting transparent shrink tube to prevent static electricity or electrical conductor hands of the module short circuit, causing damage to the module (put Heat Shrink Tubing will not affect the operation of your module oh).
Operation: to achieve mutual conversion USB, TTL, 232,485 physical switch function switch, please read the specific operation.
Indicator: connection, receive, send indicator lets you know whether the real-time module is connected to the computer or on the send and receive data.
Communication quality: clever circuit design, PCB layout professional, making module communication efficient, stable, communication baud rate can reach up to 2Mbps.

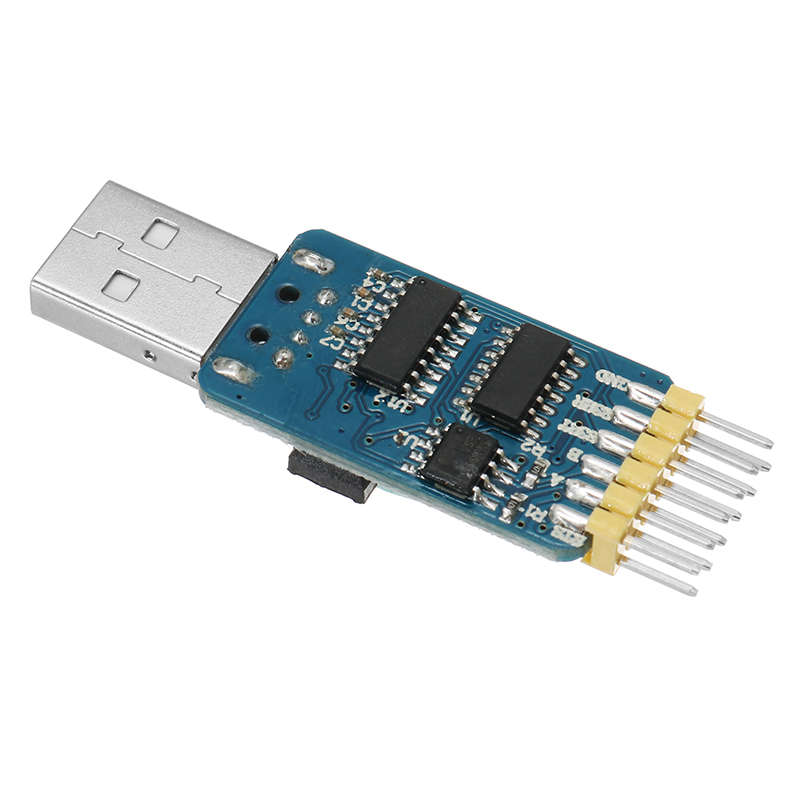

PCB Quality: Module chips used are industrial grade chips, modules for mass production, professional SMT chip, anti-static packaging after rigorous testing.

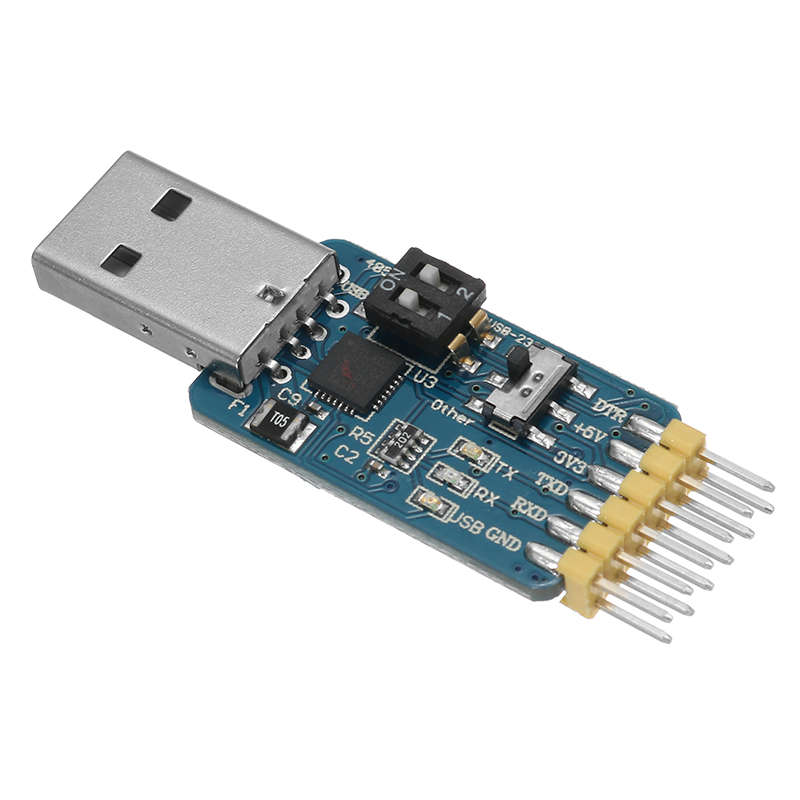

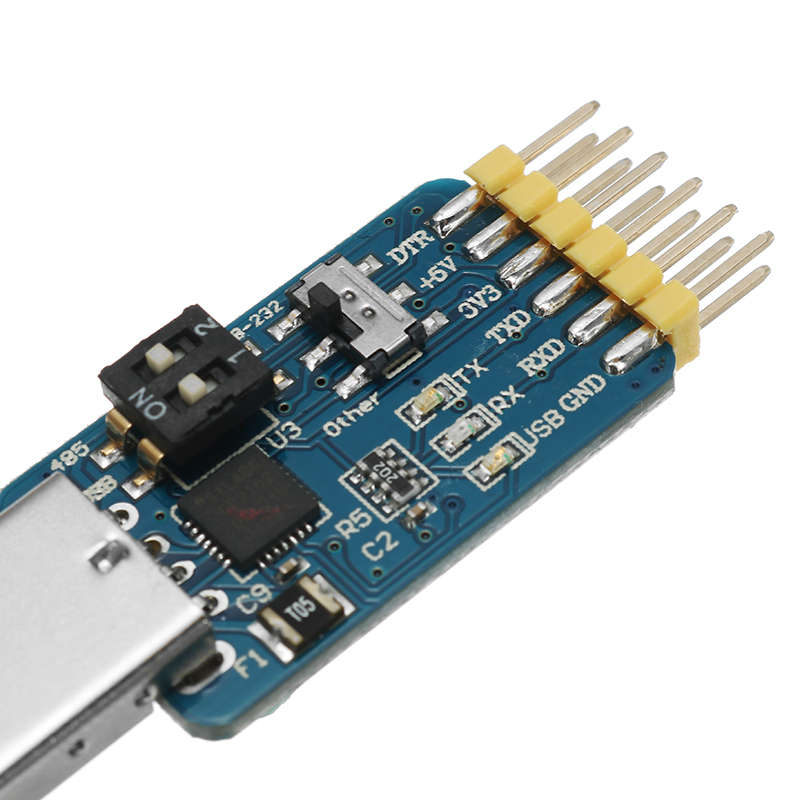

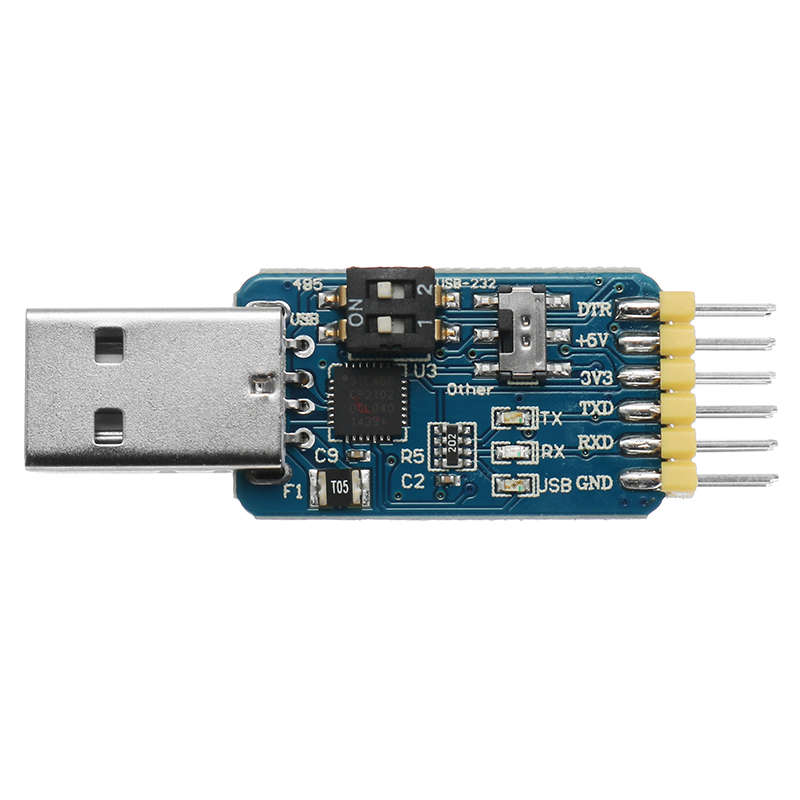

Module interface: module left 3.3V, 5V, GND power supply interface, TTL level serial TXD, RXD, serial 232, 232T, 232R interface, 485 A, B interface, and DTR, RTS interface, easy DSP430 and other microcontrollers the program downloads.

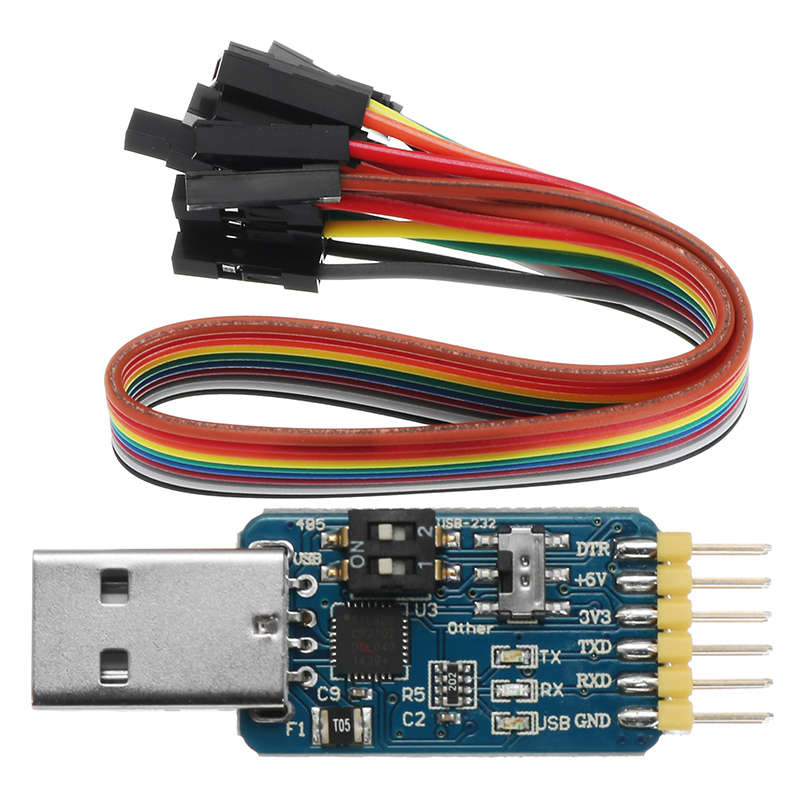

Package included: 3 x6 In 1 CP2102 USB To TTL 485 232 Converter Module
