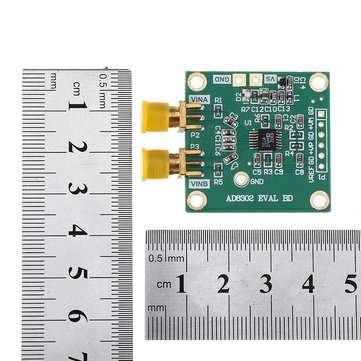

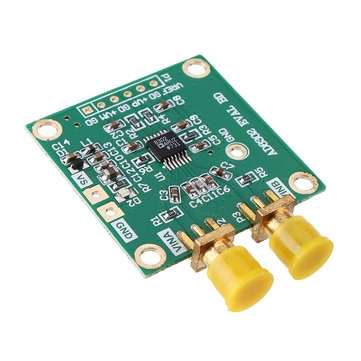

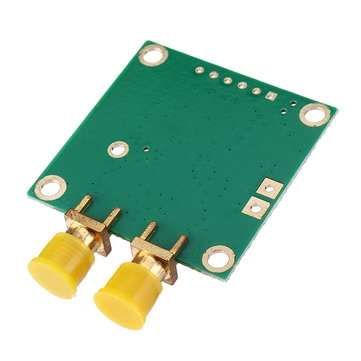

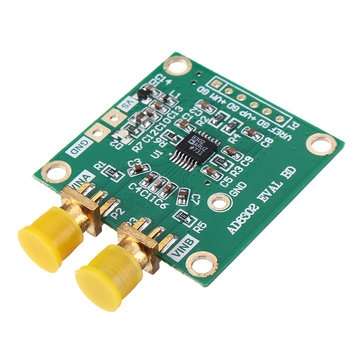

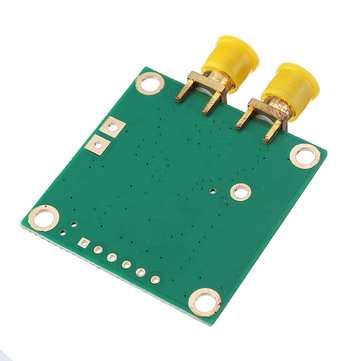

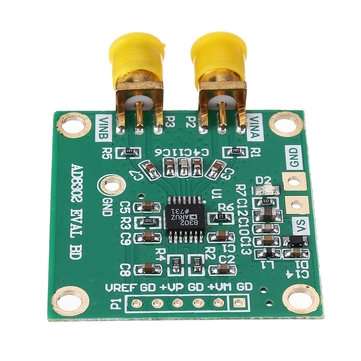

3pcs AD8302 Wideband Amplitude Phase Detection Impedance Analysis Module Amplifier Filter Mixer Loss

Feature:

Single chip silicon bipolar device, amplitude / phase measurement The AD8302 is a fully integrated RF IC that measures the amplitude and phase between two independent input signals. The device operates from low frequencies to 2.7 GHz. The AD8302 contains two precision-matched wideband log amps, a wideband linear multiplier/phase detector, a 1.8V precision voltage reference, and an analog output proportional operation circuit. The input signal range is -60 dBm to 0dBm (reference impedance 50) with a corresponding dynamic range of 60dB. The AD8302 output provides accurate amplitude measurements in the +/-30dB range with a slope of 30mV/dB; a phase measurement range of 0 to 180ﾣ with a slope of 10mV/degree. Note: Please refer to application note AN-691 for module low frequency detection. The AD8302 is available in a 14-pin TSSOP package and operates over a temperature range of -40ﾣC to 85ﾣC. Module application: 1. Measurement of insertion loss and phase of an amplifier, filter or mixer 2. Measure the vector reflection coefficient of any load 3. Impedance analysis

Support cable:

BNC male to SMA male SMA male to SMA male

Frequency Hz	Signal source RMS@50 ohm		Source phase (degrees)		Output voltage V
	CH1	CH2	CH1	CH2	VM	VP
500K	0.2V	0.2V	0	90	0.908V	0.907V
500K	0.1V	0.2V	0	90	0.724V	0.906V
500K	0.2V	0.1V	0	90	1.093V	0.908V
500K	0.2V	0.2V	0	180	0.908V	0.032V
500K	0.2V	0.1V	0	180	1.094V	0.023V
500K	0.1V	0.2V	0	180	0.725V	0.022V
500K	0.2V/	0.2V	0	-90
