3Pcs Adjustable Potentiometer Volume Control Knob Switch Rotary Angle Sensor Module

New

20 available

R457.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3903

92.56 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651213355

Description:

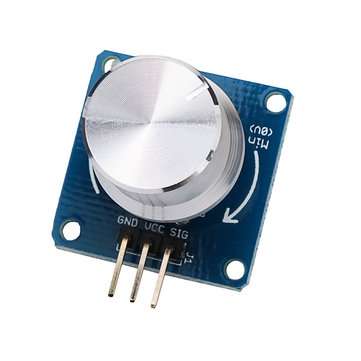

Rotary Angle Sensor is based on the 10k the adjustable potentiometer knob Angle sensor module, the output is 0 ~ VCC simulation values, the output voltage will be as the potentiometer rotation Angle and linear changes. Apply to 3.3 V and 5 V of the SCM system, and the board are compatible. Especially suitable for the volume regulator, such as lighting regulator DIY project

Feature:

Easy to use
Electronic building blocks Interface
Power supply is 3 ~ 5.5VDC
4 M2 screw positioning holes for easy installation

Parameter:

Item	Minimum	Typical Value	Maximum	Unit
VCC	3	5	5.5	V
VOUT	0	N/A	VCC	V
Rotation Angle	0	N/A	280	Deg
Size	24 x 29 x 27			mm

Interface:

Control Interface: GND to ground, VCC power supply, SIG is the signal output pin.
Knob Potentiometer: 10K ohm linear adjustable potentiometer, add aluminum knob cap.
Positioning holes: 4 M2 screws positioning holes with a diameter of 2.2mm, easy to install, implement the module combinations.

Package included:

3 xRotary Angle Sensor
