3pcs AM2320 DC 3.1-5.5V Digital Temperature And Humidity Sensor Single Bus / I2C Signal Output

20 available / new
R486.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641108290
Description:

AM2320 digital temperature and humidity sensor is a kind of temperature and humidity complex sensor with calibrated digital signal output. The sensor includes a capacitive humidity sensing element and a high-precision integrated temperature measuring element, and is connected with a high-performance microprocessor. The product has excellent quality, ultra fast response, anti-interference ability, cost-effective and so on.
AM2320 communication mode adopts single bus, standard I2C two communication methods. The two modes of communication can be freely switched, the user is free to choose, easy to use, wide range of applications.
Application range:
HVAC, dehumidifier, testing and testing equipment, consumer goods, automotive, automatic control, data recorder, weather station, home appliances, medical and other related humidity control, humidity measurement and control.
Product highlights:
Fully interchangeable, low cost, long-term stability, relative humidity and temperature measurement, long distance signal transmission, digital signal output, accurate calibration, low power consumption, single bus digital interface standard, I2C standard bus digital interface, communication mode can be free to choose.
Technical parameter:
Measuring range Temperature range: -40 - +80a, humidity range: 0-99.9%RH
Accuracy (25aenvironment) Temperature accurate value: ±0.5a, humidity accurate value:±3%RH (10...90%RH) Resolving power Temperature: 0.1a, humidity: 0.1%RH
Attenuation value
Temperature:<0.1a/ year, humidity: <1%RH / year Sensor type Temperature: resistance type sensor, humidity: capacitive sensor
Response time
Temperature: 5s, humidity: 5s 1/e (63%)
Operating temperature range: -40 - +80a
Power source: DC 3.1-5.5V
Output signal: single bus /I2C signal
Shell material: PC plastic

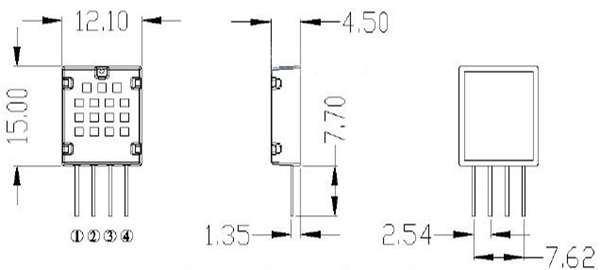

Dimension: 15 x 12.1 x 4.5mm

Package included:

3 x Temperature and humidity sensor

, , ,
