Description:

232 level output, 9600, 1HZ output, standard NMEA-0183 protocol output.

Parameter	Description
Chip characteristics	Chip	U-blox U7
	Receiving mode	GPS, QZSS, WAAS, SBAS, EGNOS, MSAS
	Frequency	GPSL1, SBAS L1
	Channel	56 search channels
Sensitivity	Track	-162dBm
	Recapture	-160dBm
	Cold start	-148dBm
Precision	Horizontal accuracy	2.0 m CEP 2D RMS SBAS assist (open space)
	Speed accuracy	0.1m/s 95% (SA off)
	Time accuracy	1us
Start Time	Cold start	29s
	Warm start	25s
	Hot Start	1s
Output Data	Baud rate	4800bps-921600bps,default 9600bps
	Output level	TTL or RS232, default RS-232 level
	Output protocol	Default NMEA-0183 protocol
	Standard GNSS	1Hz-10Hz, default 1Hz
Work limit	Height	50,000m maximum
	Speed	515m/s maximum
	Gravity acceleration	4g maximum
Power consumption	Voltage	DC 3.6V-5.5V, typical: 5.0V
Power consumption	Current	Normal 45mA@5.0V

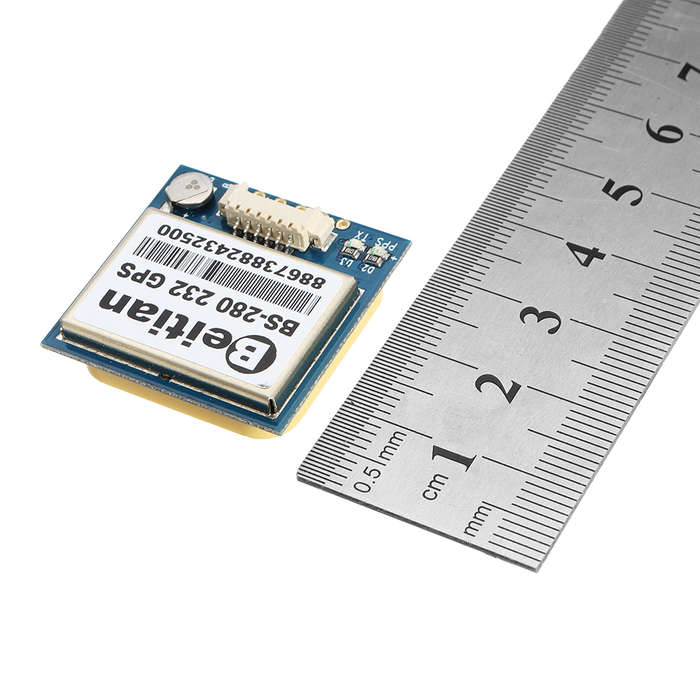

Physical parameter	Size	28mm28mm8mm
	Weight	11.5grams
	Line length	2m
	Connector	1.25 pitch 6pin socket
Surroundings	Operating temperature	-40 ﾣC ~ +85 ﾣC
Surroundings	storage temperature	-40ﾣC ~ +85ﾣC

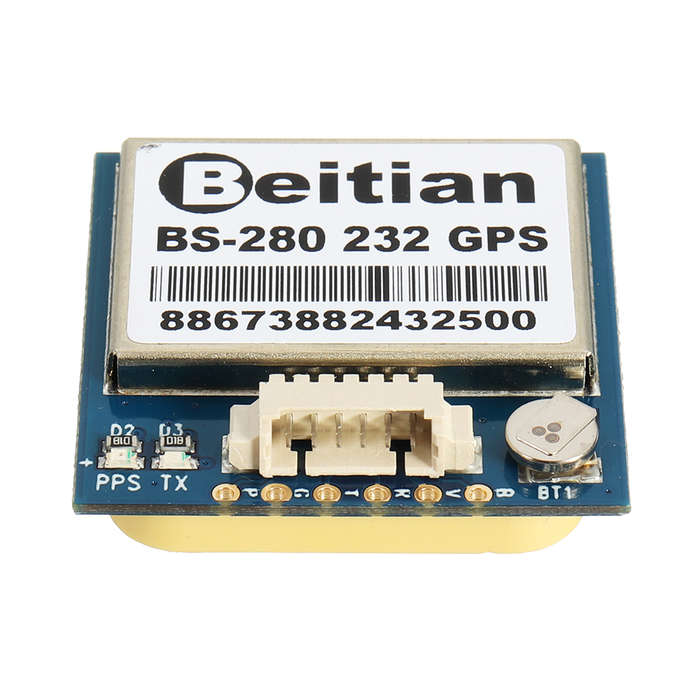

Indicator light	TX light	Power-on blue light flashes to indicate that there is data output.
Indicator light	PPS light	The light is not lit when it is not positioned. After 3D positioning, it starts to blink.

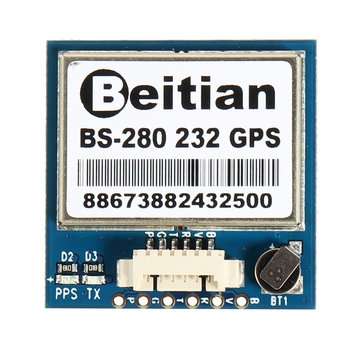

The pins of the module are: 1.PPS, there is a second pulse output after positioning, the pulse period is 1s, and the high level lasts for 100ms, which is used for system synchronization. 2. GND, ground. 3.TX, the data output of the module. 4.RX, the data input of the module. 5.VCC, 3.6-5.5V, recommended 5.0V. 6. BOOT, please hang out during normal work.

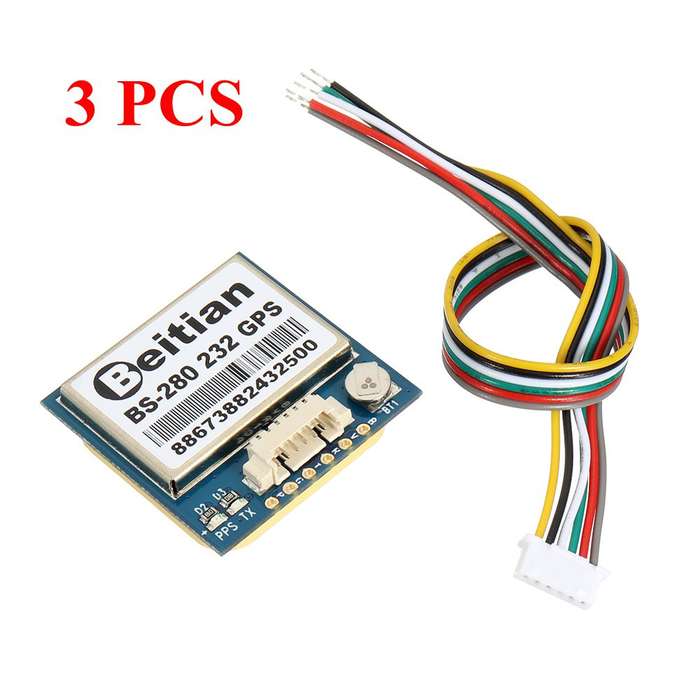

Package included:

3 xBeitian BS-280 232 GPS Receiver Module

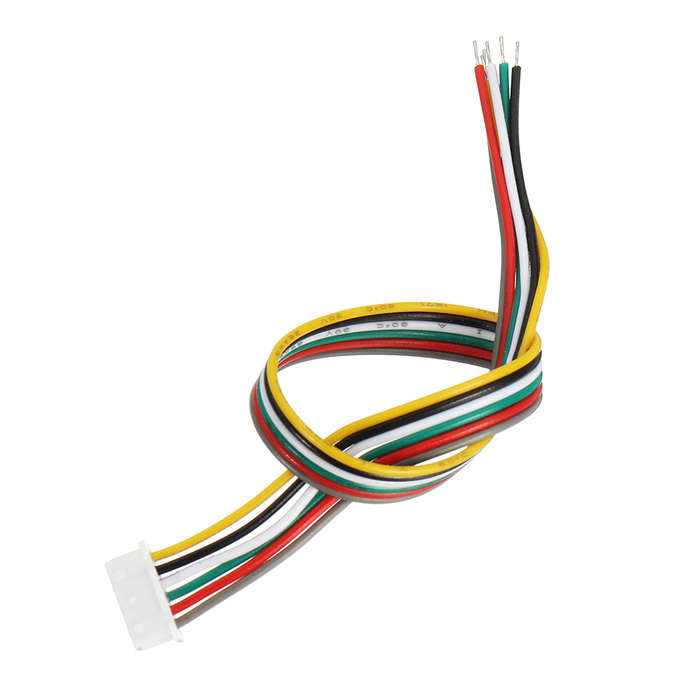

3 x cable
