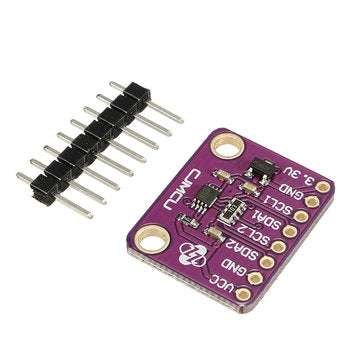

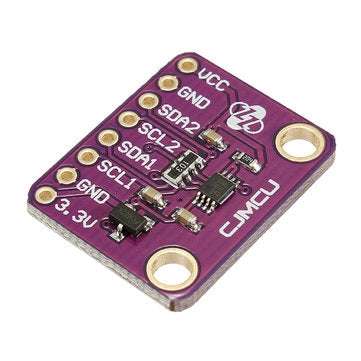

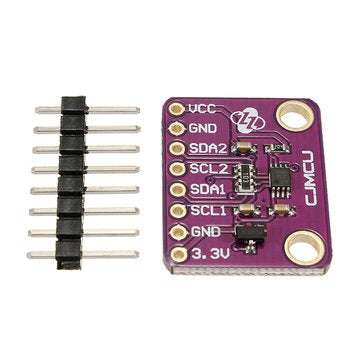

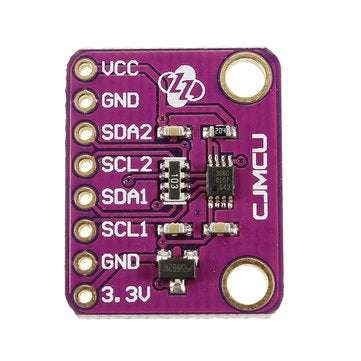

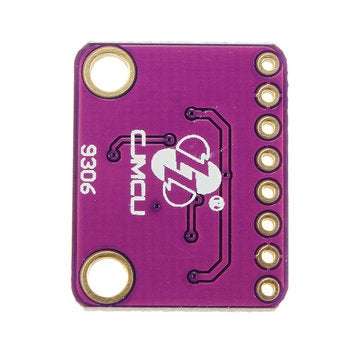

3Pcs CJMCU-9306 PCA9306 2-Bit Bidirectional I2C Bus And SMBus Voltage Level Translator

20 available / new

R451.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3614

92.91 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643364353

Description:

CJMCU-9306device is a dual bidirectional I2C and SMBus voltage-level translator with an enable (EN) input
and is operational from 1.2-V to 3.3-V V _REF1and 1.8-V to 5.5-V V _REF2.
The PCA9306 device allows bidirectional voltage translations between 1.2 V and 5 V, without the use of a direction pin.
The low ON-state resistance (RON) of the switch allows connections to be made with minimal propagation delay.
When EN is high, the translator switch is ON, and the SCL1 and SDA1 I/O are connected to the SCL2 and SDA2 I/O,
respectively, allowing bidirectional data flow between ports. When EN is low, the translator switch is off,
and a high-impedance state exists between ports.
In addition to voltage translation, the PCA9306 device can be used to isolate a 400-kHz bus from a100-kHzbusy controlling the EN pin,
and disconnecting the slower bus during fast-mode communication.

Package included:

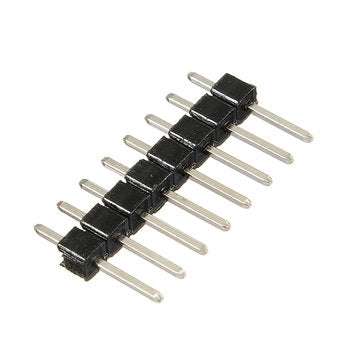

3 xCJMCU-9306 PCA9306 2-Bit Bidirectional I2C Bus And SMBus Voltage Level Translator
