Name: 3Pcs DC 1 Channel 1 Route IRF540 MOSFET Switch Module For Arduino
SKU: 1204947
Price: 189.00 ZAR
Availability: SoldOut

3Pcs DC 1 Channel 1 Route IRF540 MOSFET Switch Module For Arduino

5 were available / new

Indicative market price: R285.00

R189.00

34% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

WorldWide Traders1484

95.02 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: Only if item is faulty.

Get it now, pay later

Condition

New

Location

International

Product code

1204947

Bob Shop ID

388155891

Please read and understand terms of sale under the Shipping Tab before making your purchase.

Please note:
If there are options for this order then the price indicated is for the basic model.
Please use Ask a Question to ask for the price of any of the other models of the other models listed.

Instruction:

MOSFET is an electronic device having a good switching characteristics, is widely used in the electronic switch circuit needs, such as switching power supplies and motor drives, and a lighting dimming.
We designed this four-way MOSFET switch can provide up to four groups of electronic switches, were used to control different circuit modules.
Affected MOSFET works, the electronic building blocks can be used to control the DC circuit, such as DC LED screen, etc., are not suitable for controlling the AC circuit.
Under extreme circumstances of the MOSFET switch can be used to control 100V / 33A DC circuit, but is recommended not less than the minimum DC voltage 9V.

Wiring (To control a 12V LED lights, for example):

1. Connect power for +/-
2. LED lights "+" connect to module "+", LED lights "-" connect to S1, if there are other LED lights, connect to the switch 2 (S2), switch 3 (S3) and switch 4 (S4) in tuns;
3. Connection control side is much simpler, we only need to use a sensor cable, the corresponding control port and Arduino sensor expansion board connected, then you can control the 12V LED lights by Arduino.

Package includes:

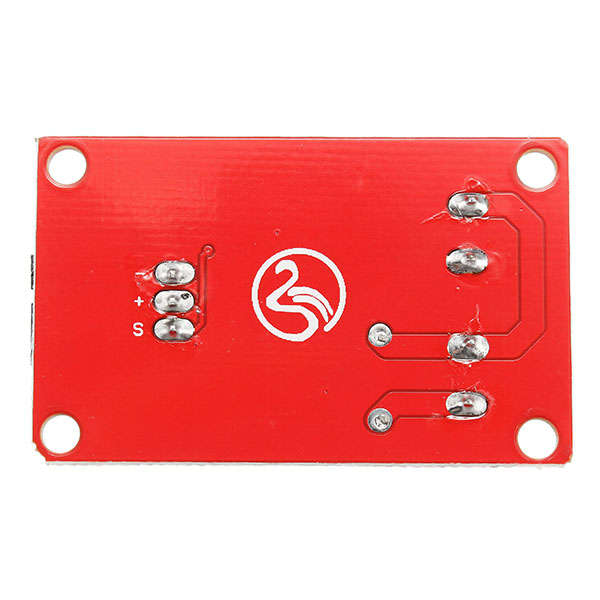

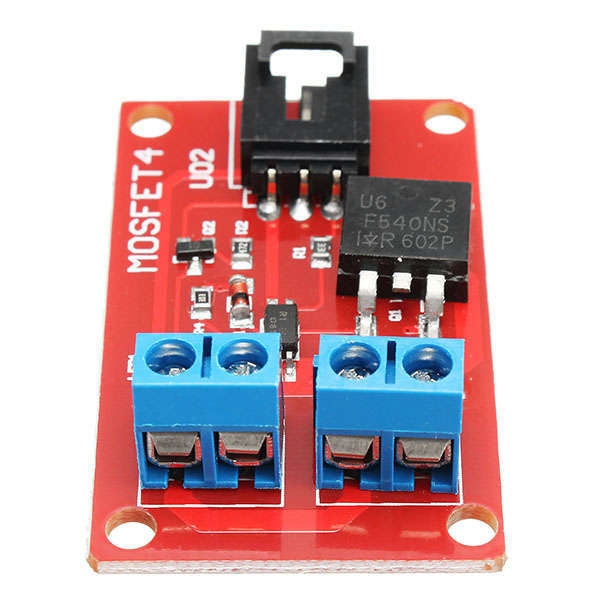

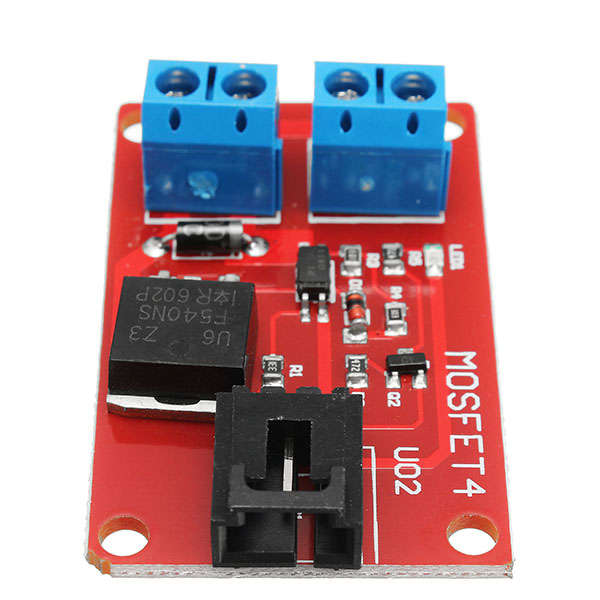

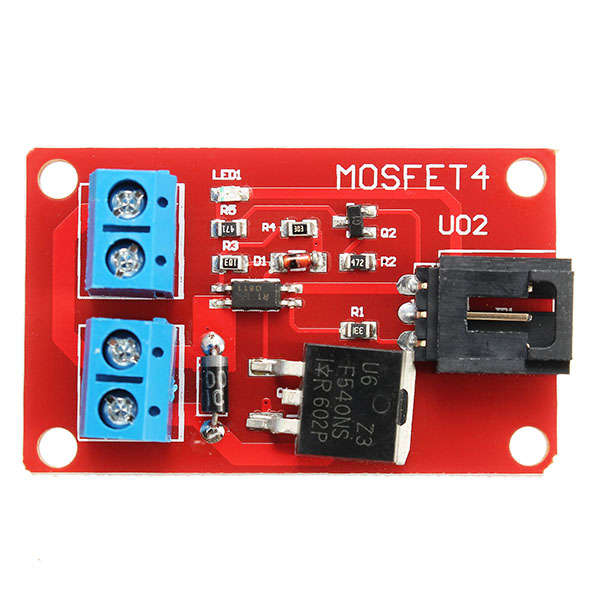

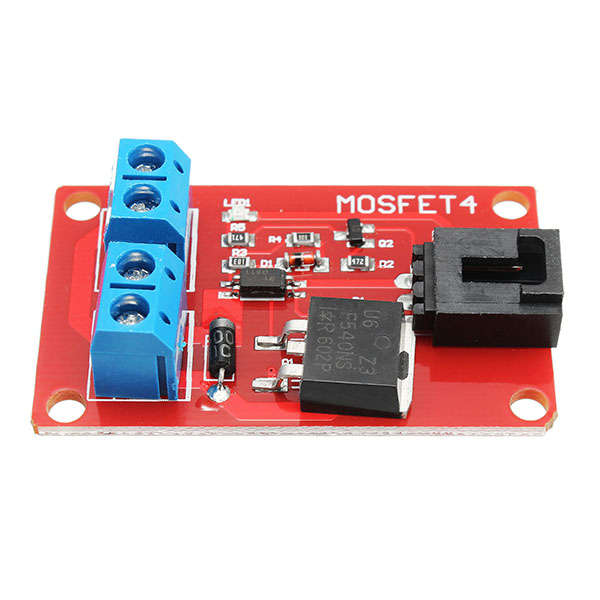

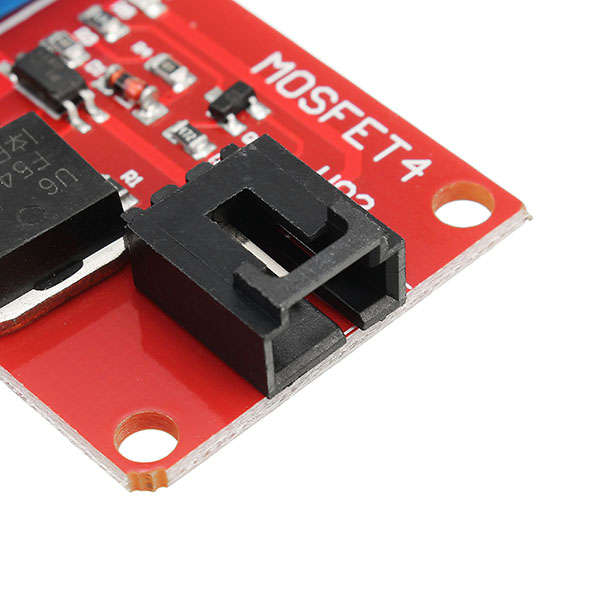

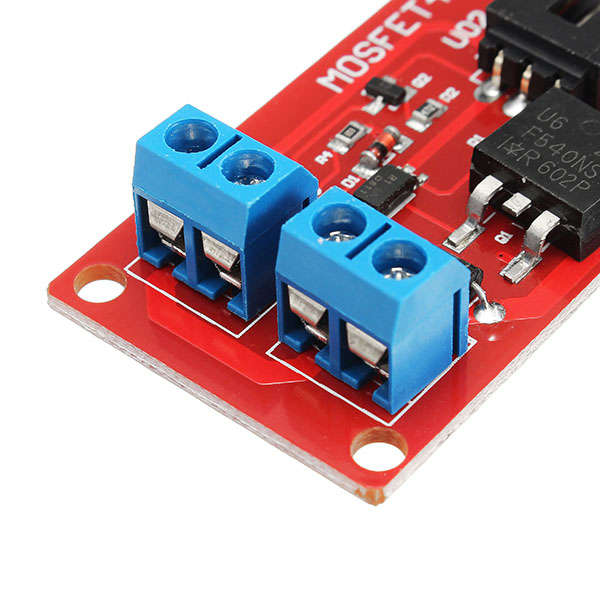

3 x IRF540 + MOSFET Switch Module

Test code as follows:

int s1Pin = 6;
int s2Pin = 7;

void setup() {
pinMode(s1Pin, OUTPUT);
pinMode(s2Pin, OUTPUT);
}

void loop() {
int i;

digitalWrite(s1Pin, HIGH);
digitalWrite(s2Pin, HIGH);
delay(500);

digitalWrite(s1Pin, LOW);
digitalWrite(s2Pin, LOW);
delay(500);

for (i = 0; i < 10; i ++) {
digitalWrite(s1Pin, HIGH);
delay(500);
digitalWrite(s1Pin, LOW);
delay(500);
}

for (i = 0; i < 100; i ++) {
digitalWrite(s2Pin, HIGH);
delay(50);
digitalWrite(s2Pin, LOW);
delay(50);
}
}
