3pcs DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with L 3pcs DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with L 3pcs DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with L
3pcs DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with L 3pcs DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with L 3pcs DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with L

3pcs DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with L

20 available / new
R493.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641108405

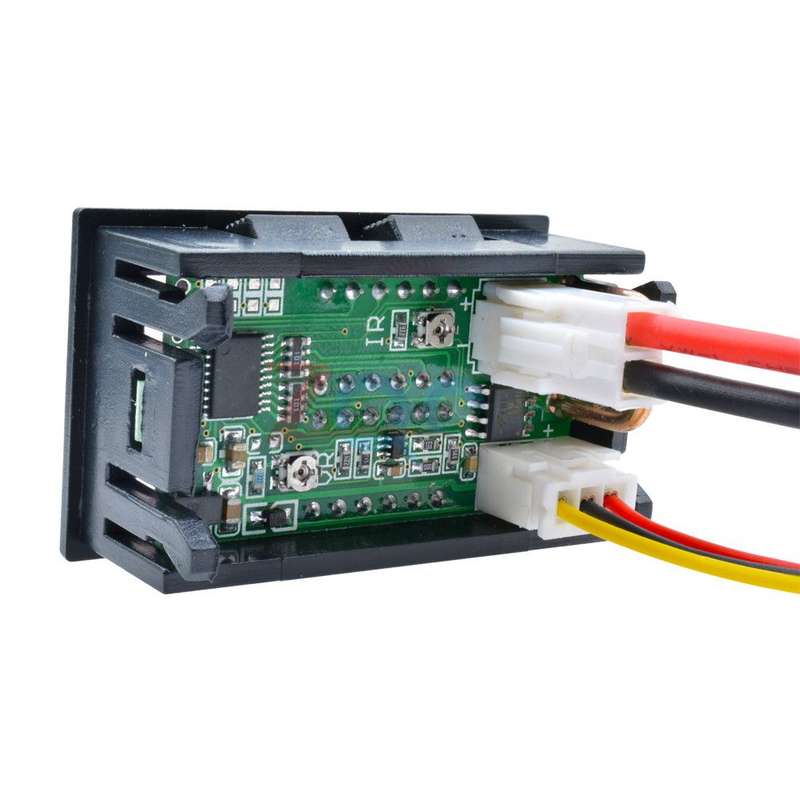

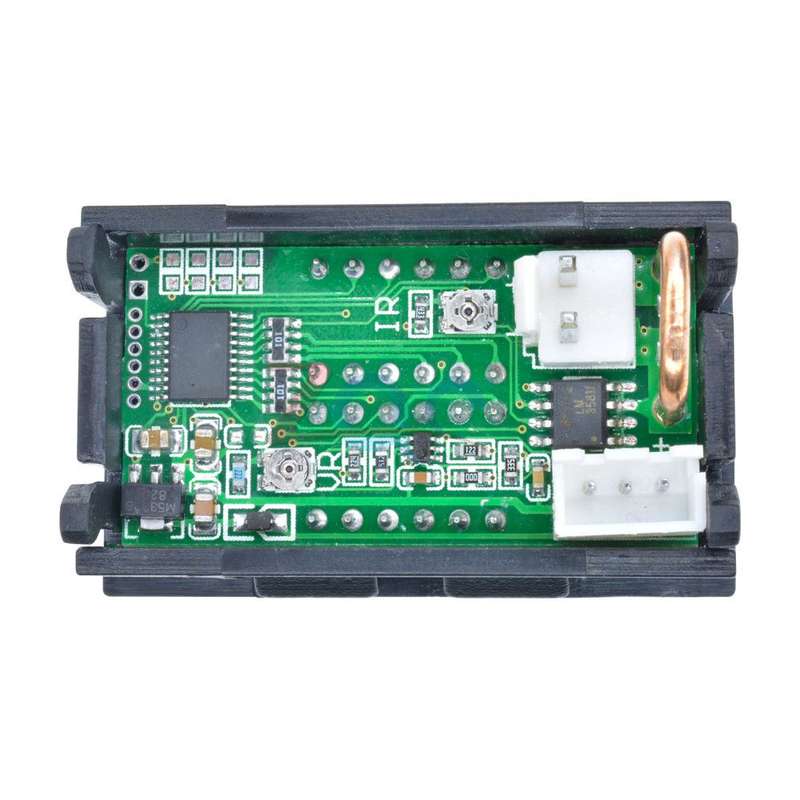

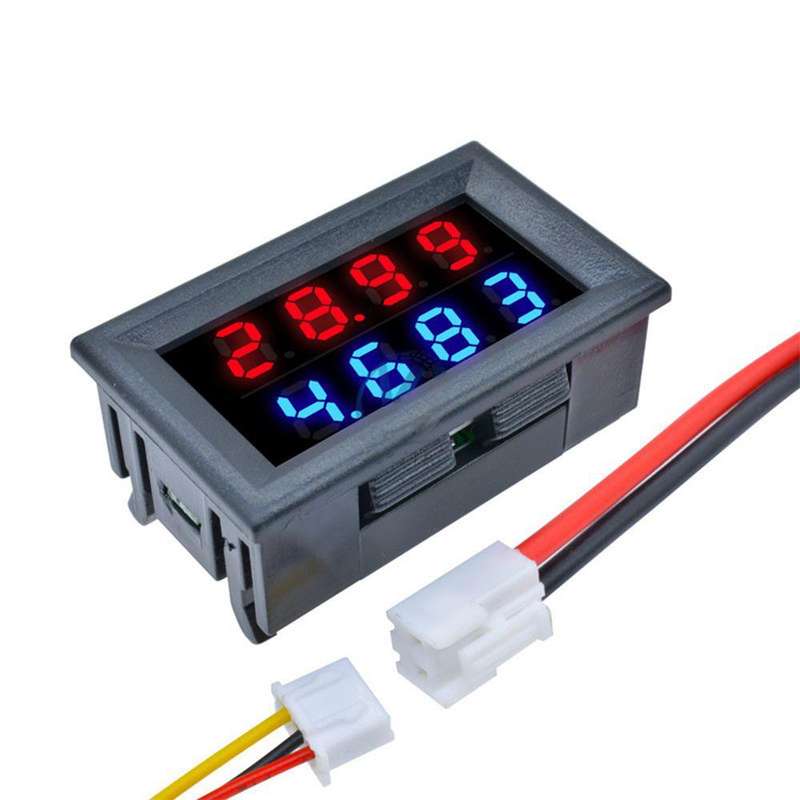

Features: High precision: 4-digit Working voltage: DC 4V-28V Working current: <20mA Display: 0.28 Red + Blue Dual LED Display Voltage Measuring Range: DC 0.000V-100.0V Current Measuring Range: 0-9.999A Refresh rate: about 1S / 3times Operating temperature: -10ᆪC - 65ᆪC Working pressure: 80 to 106 kPa Size : 48x29x20 mm Mounting hole: 46 x 27 mm Current: Range x 0.08%+Two decimal point Voltage: Range x 0.08%+Two decimal point Wiring: Red line thin: power supply + Red line (thick): IN+, current input Yellow line (thick): PW+, measuring terminal voltage input positiv Black line thick: COM, common measuring Note: Please follow the wiring diagram, special attention, the load can only be connected to the positive, not negative! Otherwise burn the table! Package Included: 3 x DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter
