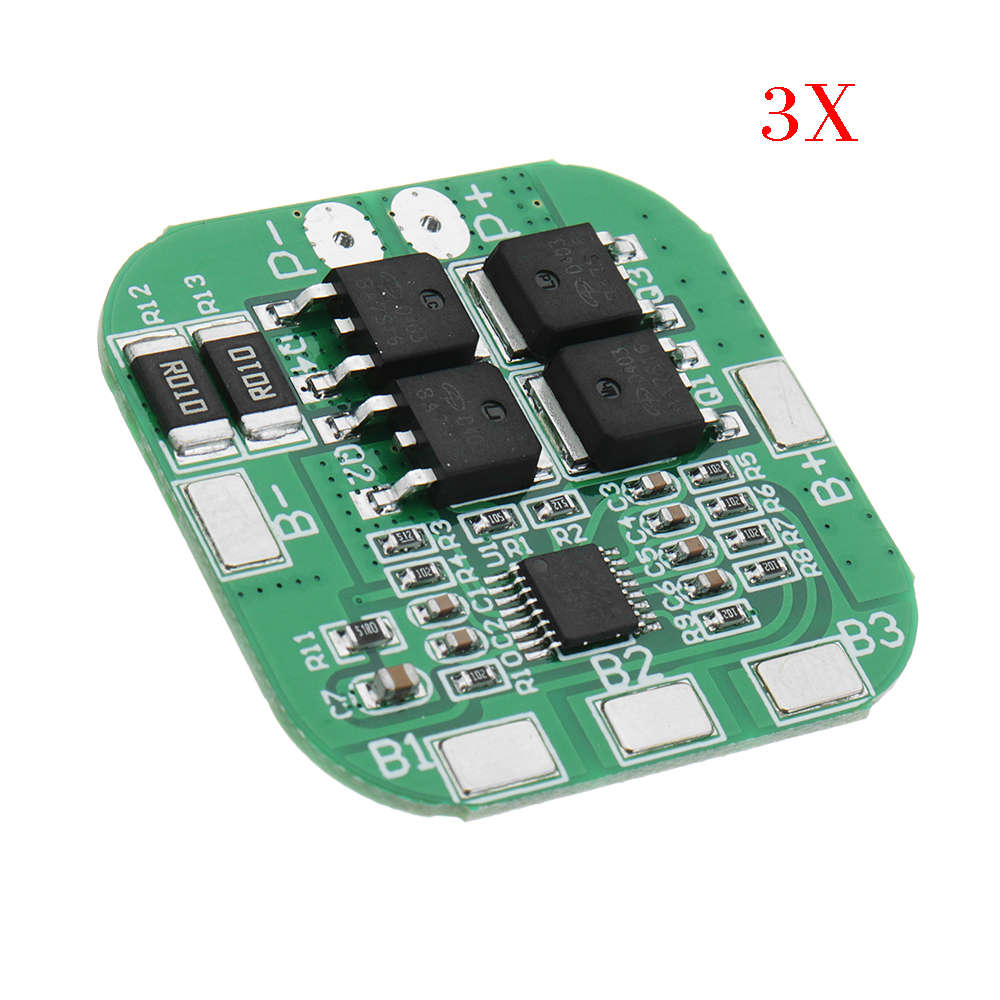

3pcs DC 14.8V / 16.8V 20A 4S Lithium Battery Protection Board BMS PCM Module
New
Indicative market price: R399
R184.62
54% OFF
Closed
3 Feb 19 17:19
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Customer ratings:
Product code
1323815
Bob Shop ID
393349591
Package weight: 0.02 kg
Description:

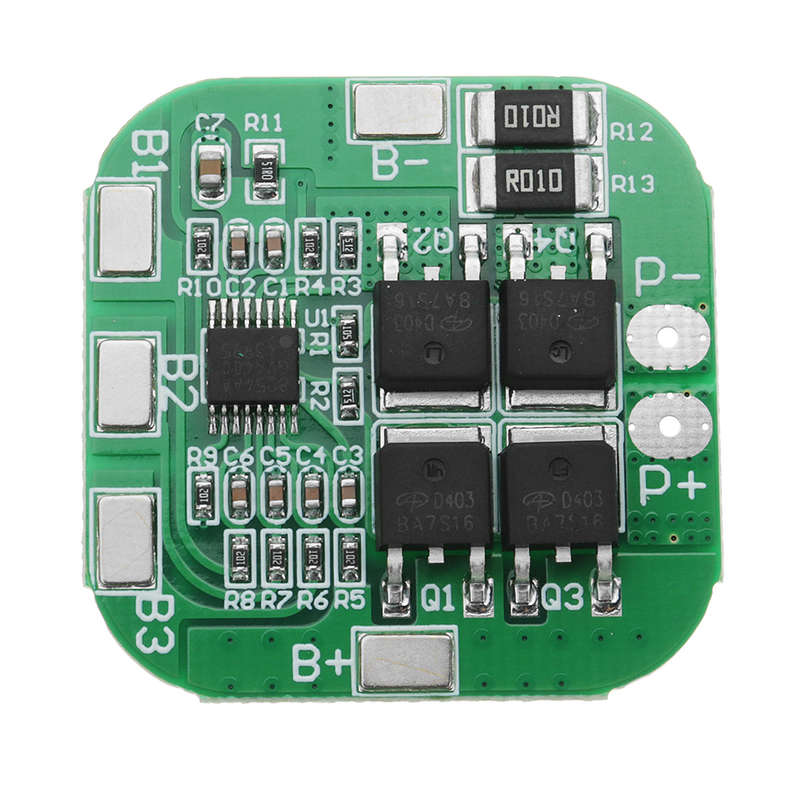

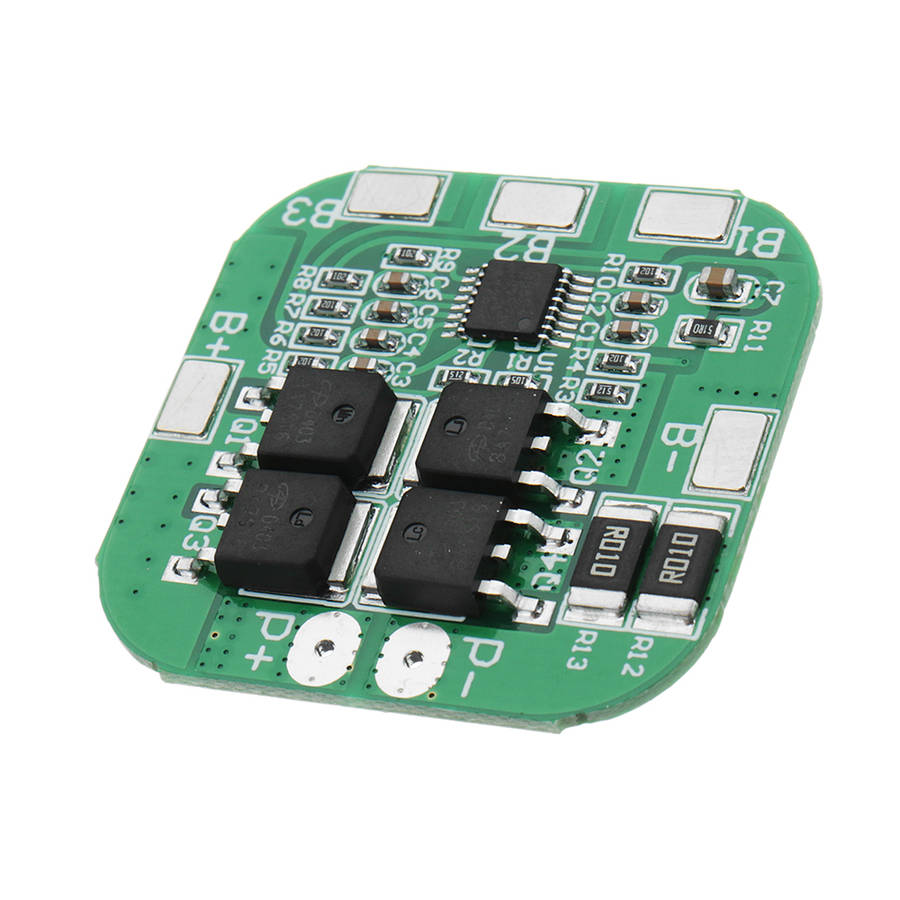

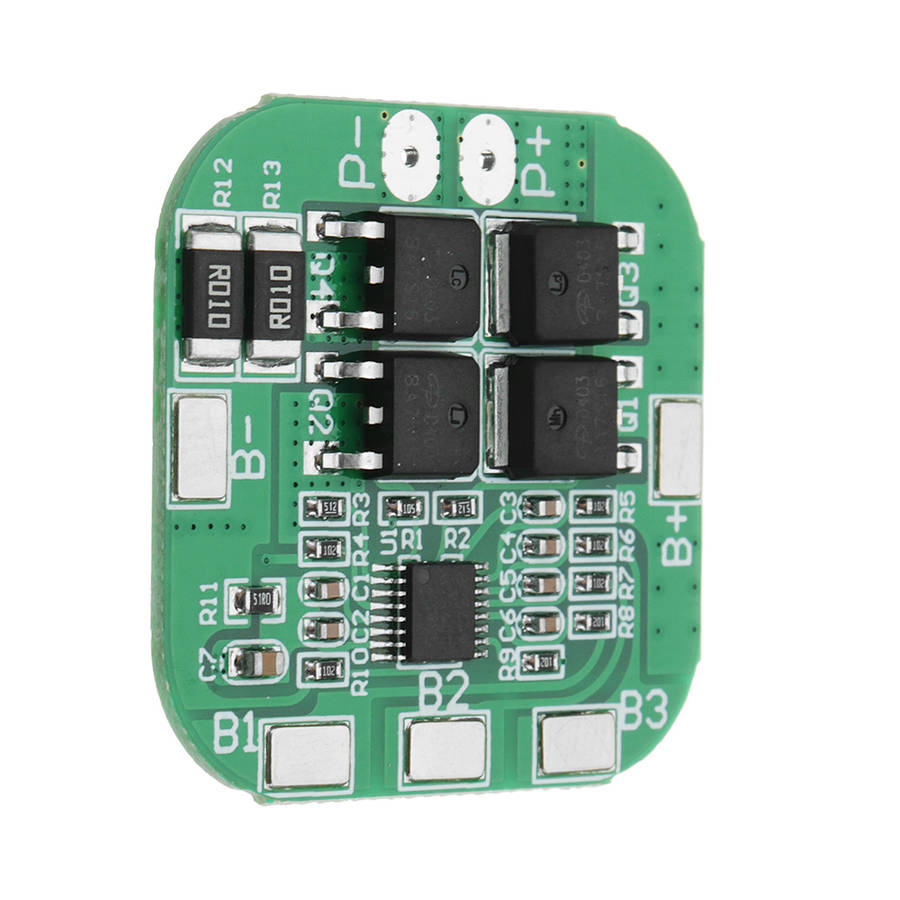

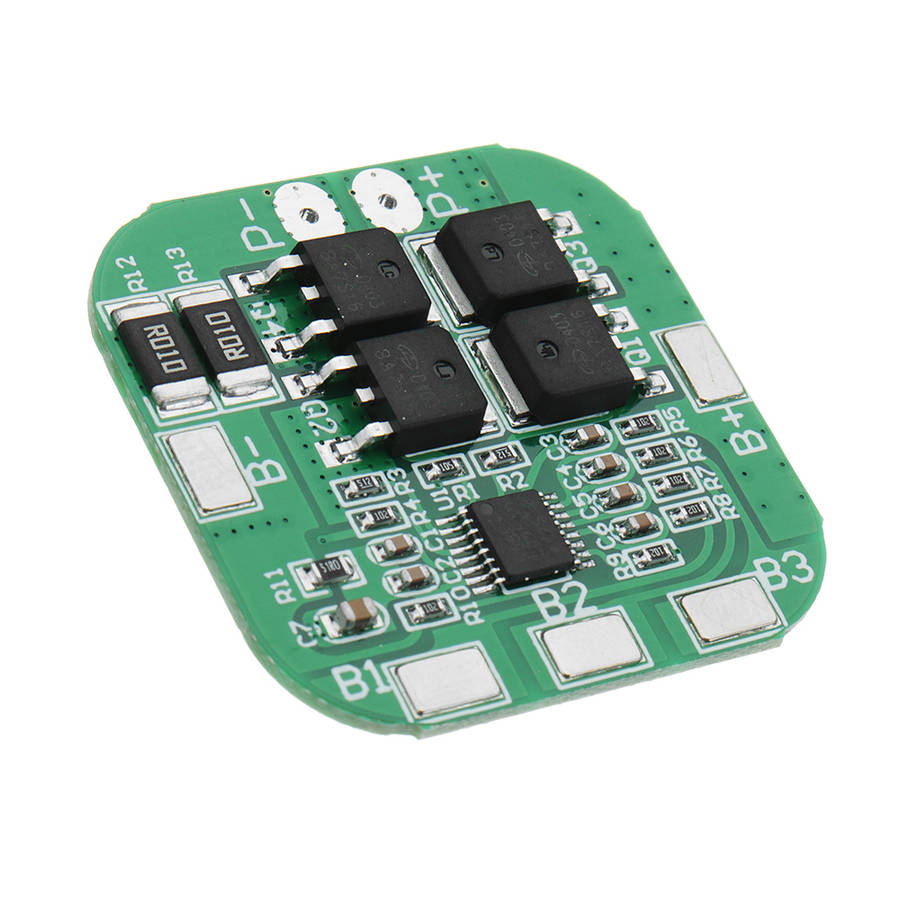

B+ connected battery positive;
B1 the connect point between battery 1 and battery 2;
B2 connect the point between battery2 and battery 3;
B3 Connect the point between battery 3 and battery 4;
B- connect to battery negative end;
P- + connection charge / discharge positive;
P- connection charge / discharge negative;
4S Li-ion18650, LiCoO2, LiMn2O4, Li(NiCoMn)O2 rechargeable batteries;
4S Lipo rechargeable batteries;
High-accuracy voltage detection circuit;
Terminal of the charger using high voltage device;
Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
MOS transistor can control the battery charge and discharge;
Low standby current consumption.
Parameter:
Over charge voltage: DC 4.25-4.35V ± 0.05V
Over discharge voltage: DC 2.3-3.0V ± 0.05V
Max working current:10A
Max peak current: 20A
Working temperature: -40￢ﾄﾃ - +50￢ﾄﾃ
Storage temperature:-40￢ﾄﾃ - +80￢ﾄﾃ
Small current: 6uA
Life cycle: 50000hours
Resistance: 45mΩ
Short cut protection: protectable ,change for repair
Size: 35*35*3.0mm
Package Included:
3 x 4S lithium battery protection board
