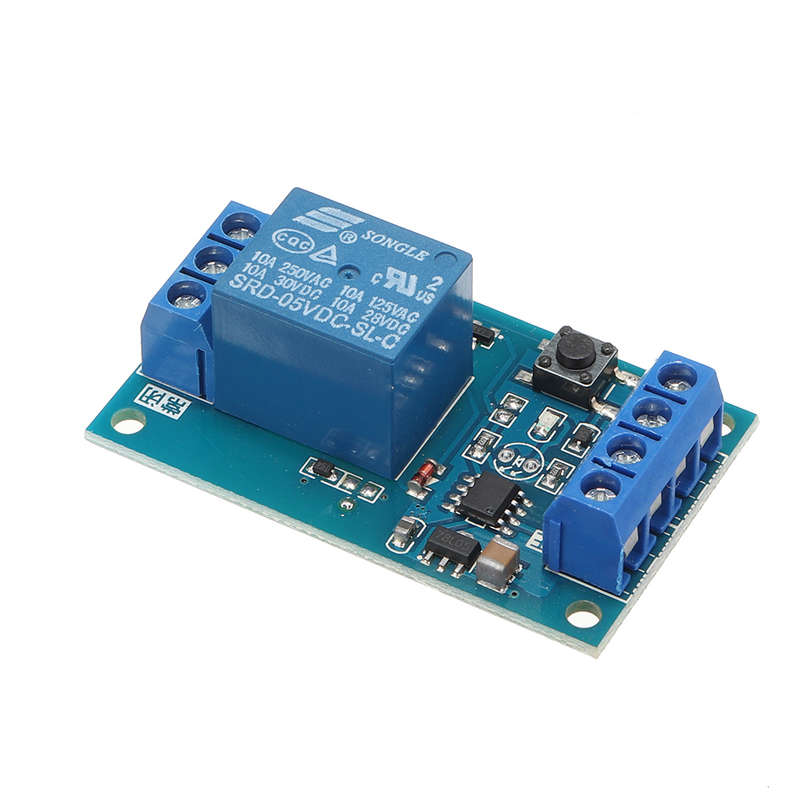

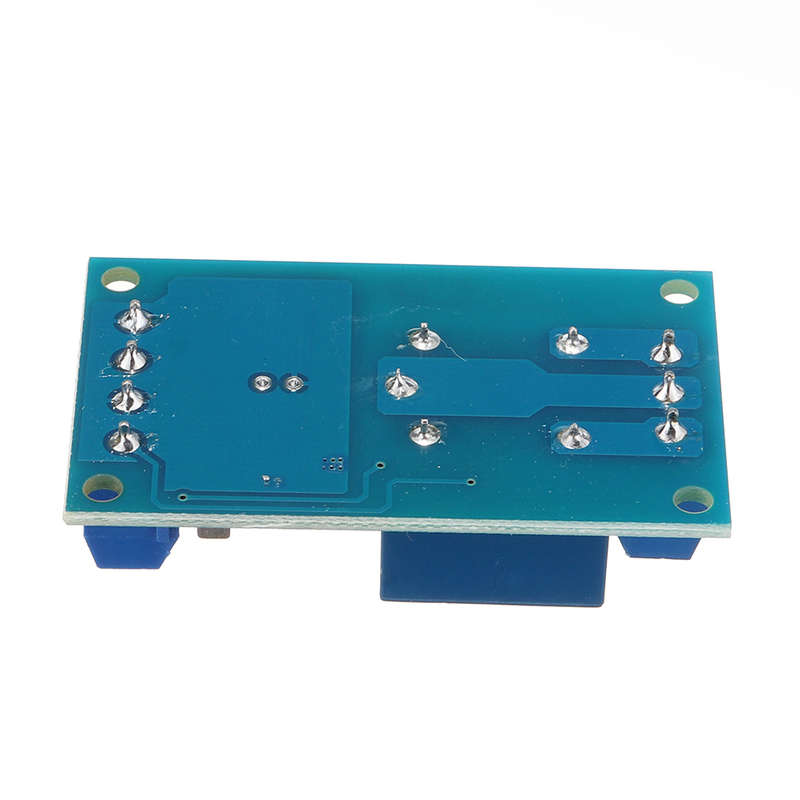

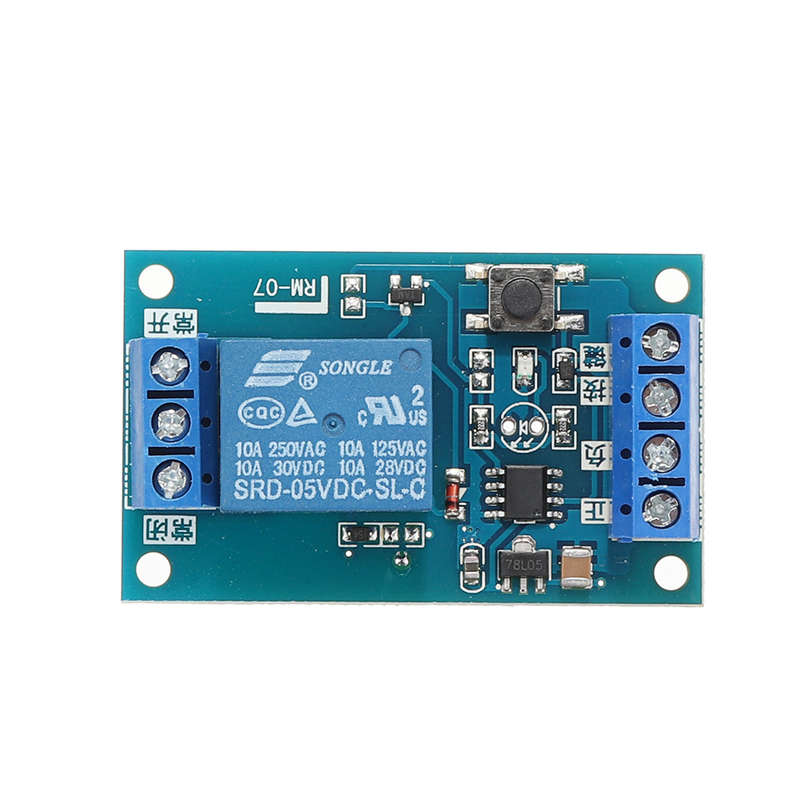

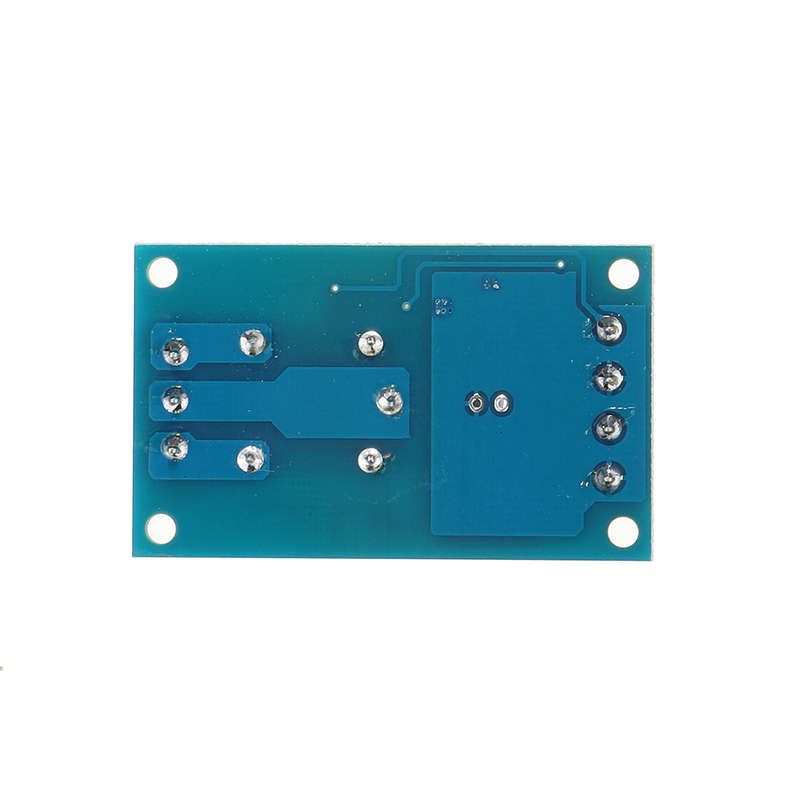

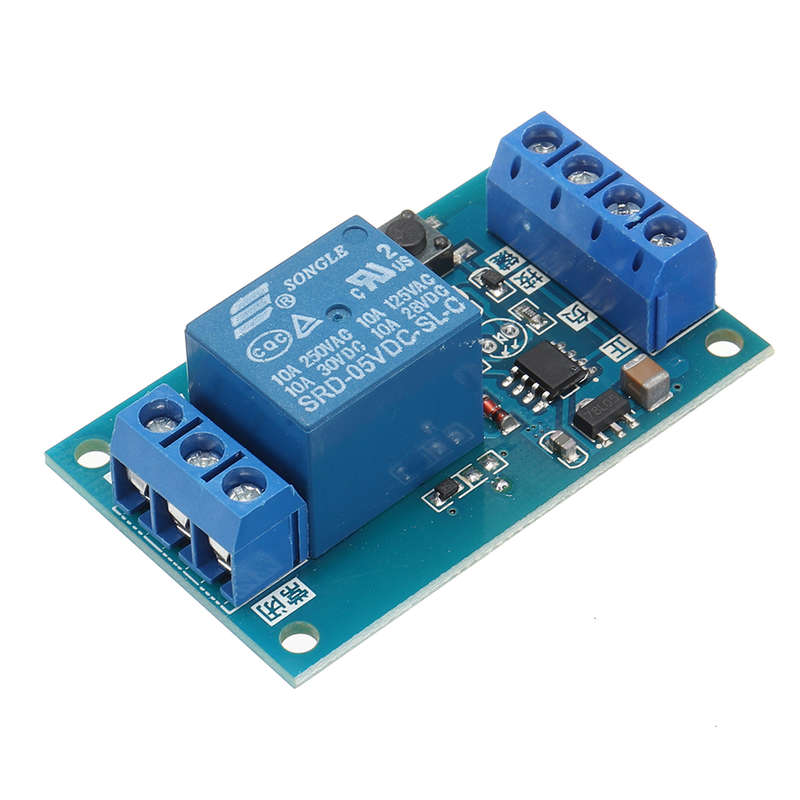

3pcs DC 5V Single Bond Button Bistable Relay Module Modified Car Start and Stop Self-Locking Switch

20 available / new

R432.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.49 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641108436

Introduction: 1. The power supply: 5V 2. Module size: 52.8mm x 32mm x 18mm 3. According to the board of the key, or an external button to make the relay module to attract or disconnect, click on the pull, and then press the button to disconnect, low level trigger. Power on again when the relay is in off state. 4.The secondary output end of the relay to withstand the maximum current is 10A, that is the maximum working current cannot be accused of a circuit or device is greater than 10A, according to their own needs to be connected to the normally open or normally closed terminal. 5. Reserved external pull lights welding position, and the board has good welding the attraction indication lamp. Package Included: 3 x DC5V Single Bond Button Bistable Relay Module
