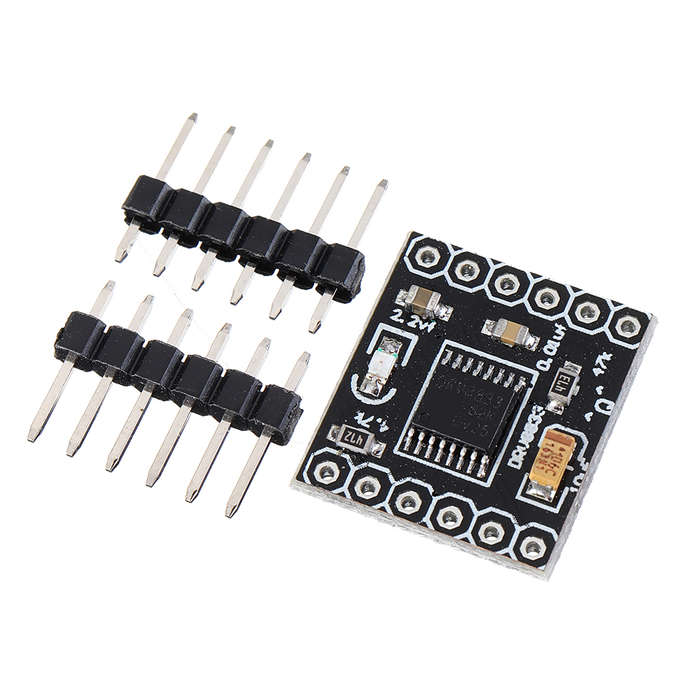

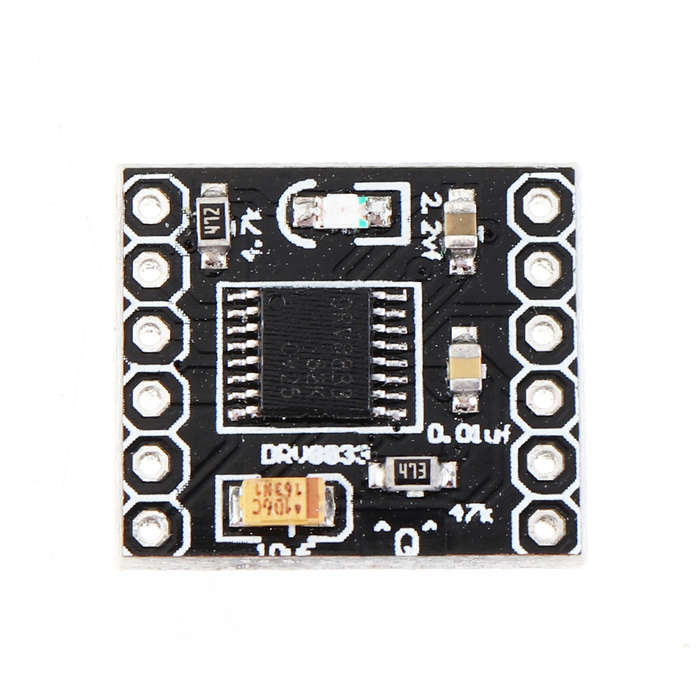

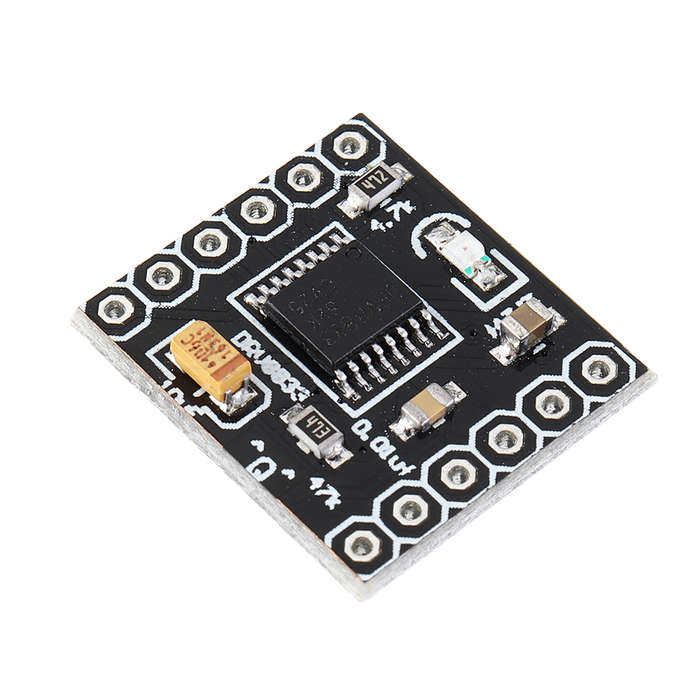

3pcs DC Motor Driver Board 2 Way DRV8833 Motor Drive Module DC 3-10V

New

20 available

R374.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4026

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654083528

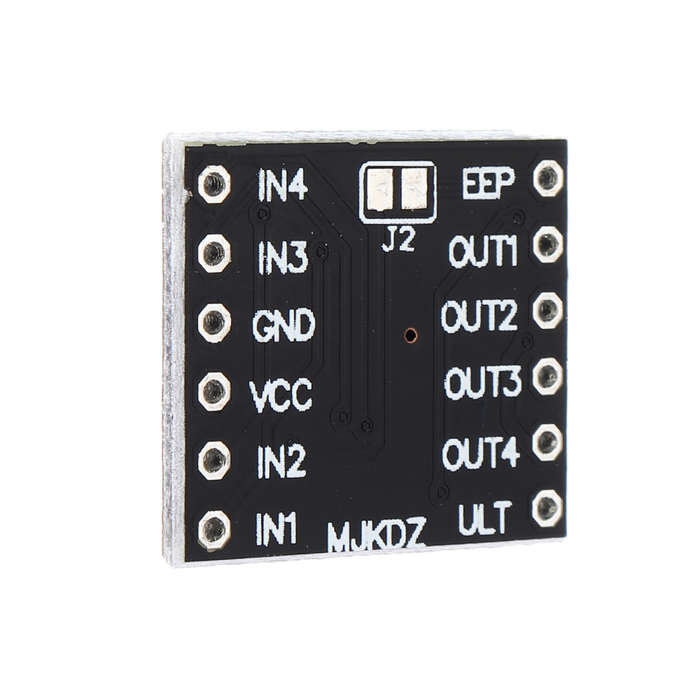

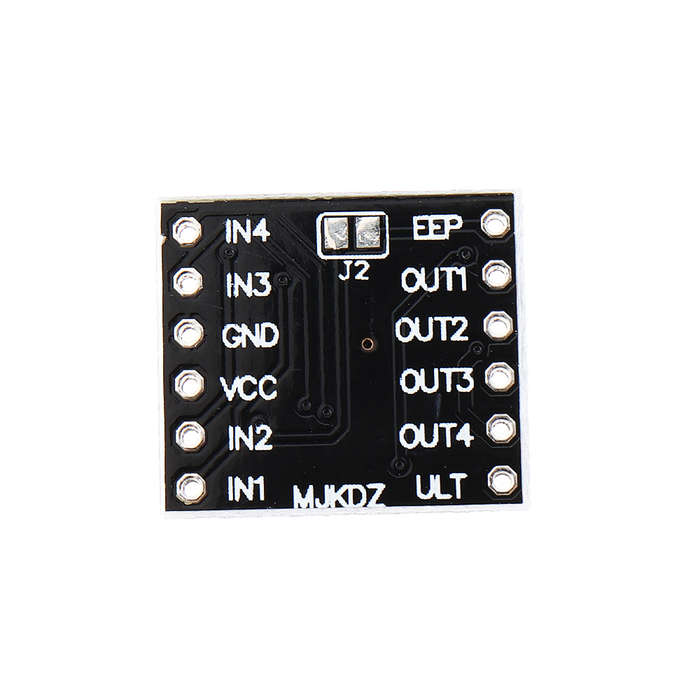

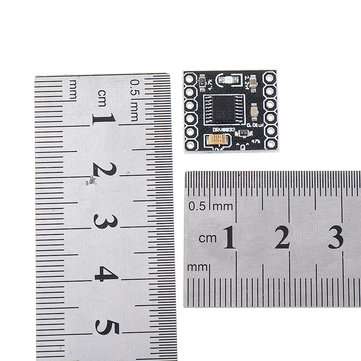

Parameters: Size: 18.5 x 16 mm Input voltage: 3-10V Single H bridge output current: 1.5A, can drive 2 dc deceleration motors. Built-in overcurrent protection, short circuit protection, undervoltage latching and overheating protection. Sleep mode with low power consumption. Purpose: drive dc motor and 4-wire stepping motor up to 1.5A. Instructions: ULT low level is in sleep mode (need to disconnect J2 short welding spot behind the module) OUT1, 0UT2 is 1 H bridge, corresponding control is IN1, IN2. OUT3, 0UT4 is the second H bridge, corresponding control is IN3, IN4. EEP to protect the output, the default is not. VCC for voltage input 3 to 10V. GND grounded. Package includes: 3 x DC Motor Driver Board
