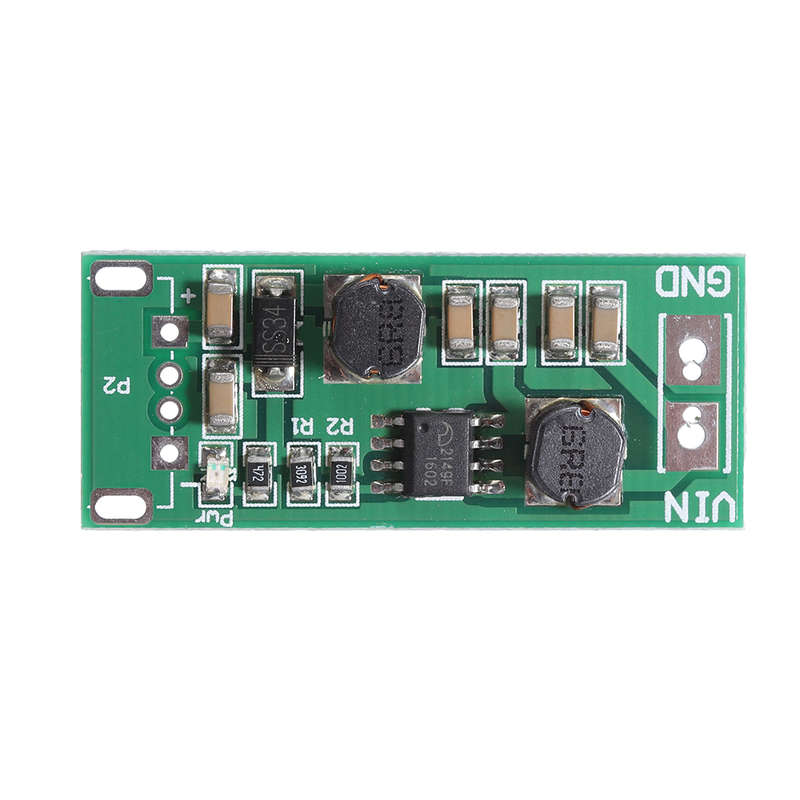

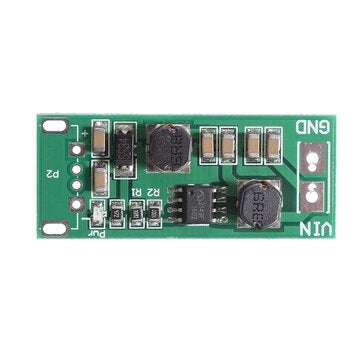

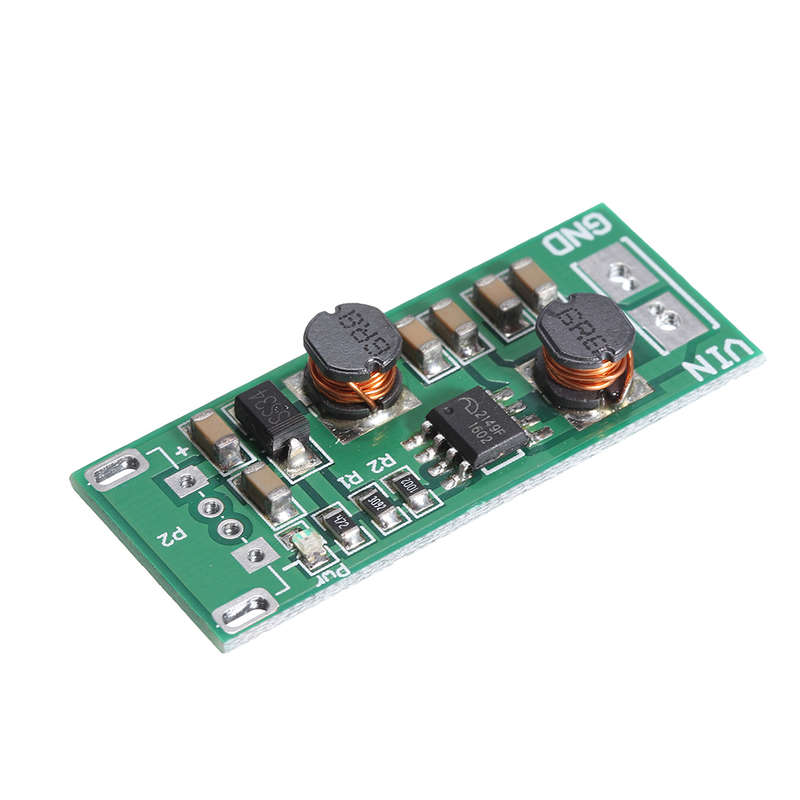

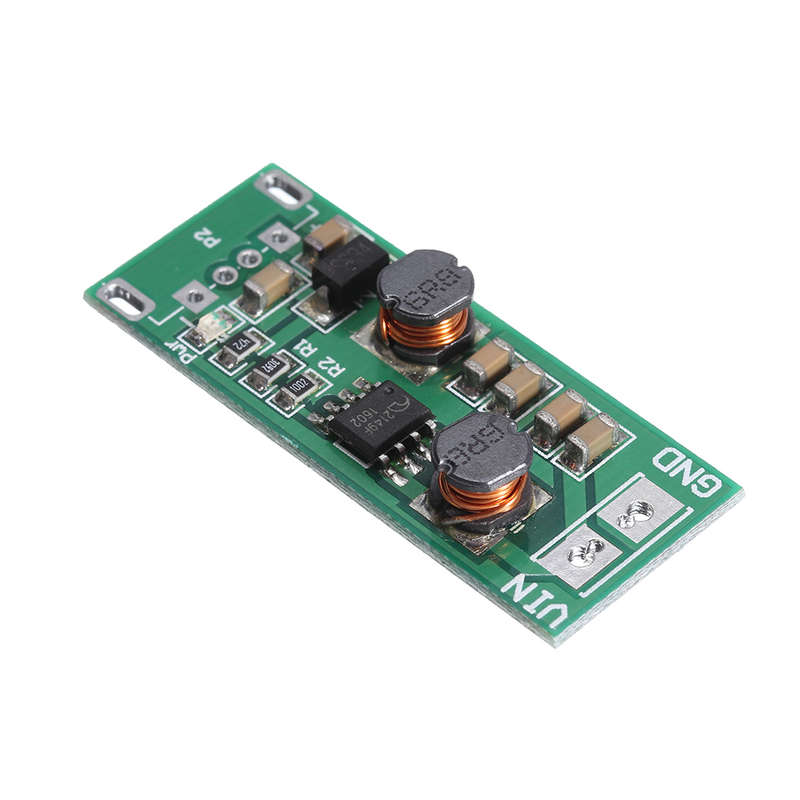

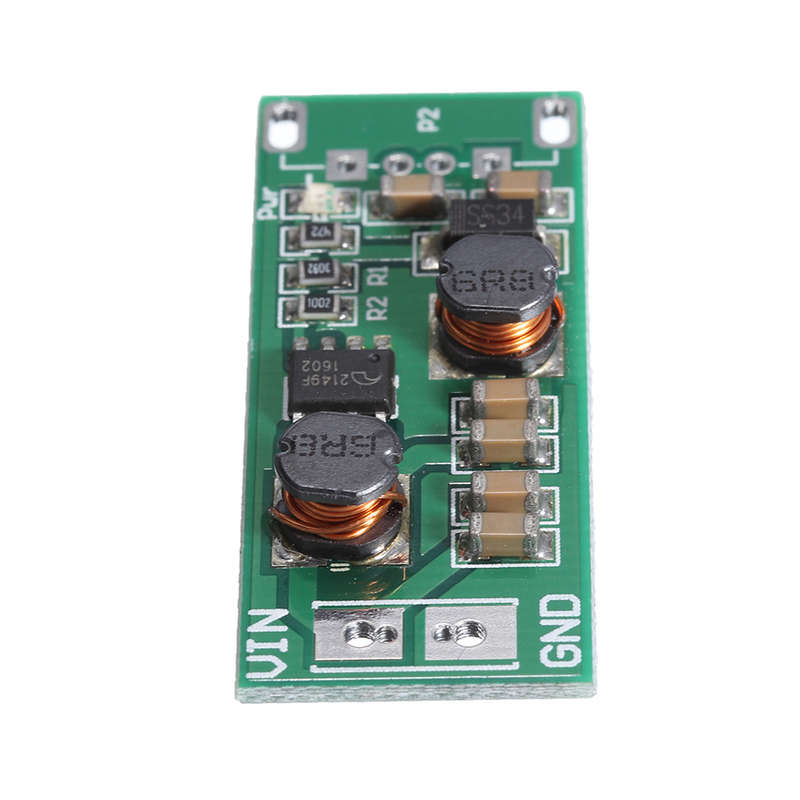

3pcs DD1205UA DC to DC 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter Step Up Down Voltage Conve

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;} Description:
Input voltage DC 1 ~ 6V, output DC 5V(+-6%) The maximum input voltage can not exceed 6.5V Short-term maximum output current : 12000mA Long time maximum output current: 1000mA Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 60%-85% . Operating temperature: -25~+85 Degrees Celsius Storage temperature: -45~+125 Degrees Celsius Size : 38mm x 16mm x 5.7mm Weight : 3g

Applications: Battery powered equipment Wireless Module,NRF24L01 CC1101 CC2500 etc. MCU Development Board,AVR PIC FPGA/CPLD STM32 ArduiuoUNO3mega2560 due Breadboard for Raspberry Pi LED Lighting Wireless communication equipment Audio equipment Digital cameras,GPS,wireless transceiver Portable devices
Attention: 1. Input voltage can not be greater than the maximum input. 2. Output power can not be greater than the maximum load for a long time. 3. Input power must be greater than the output power, because the power consumption of the module itself.
Package Included:
3 x 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter
