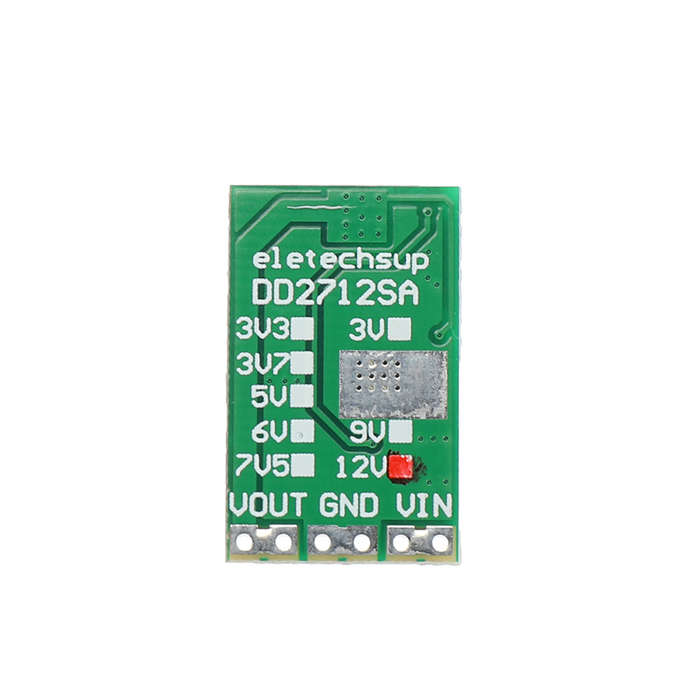

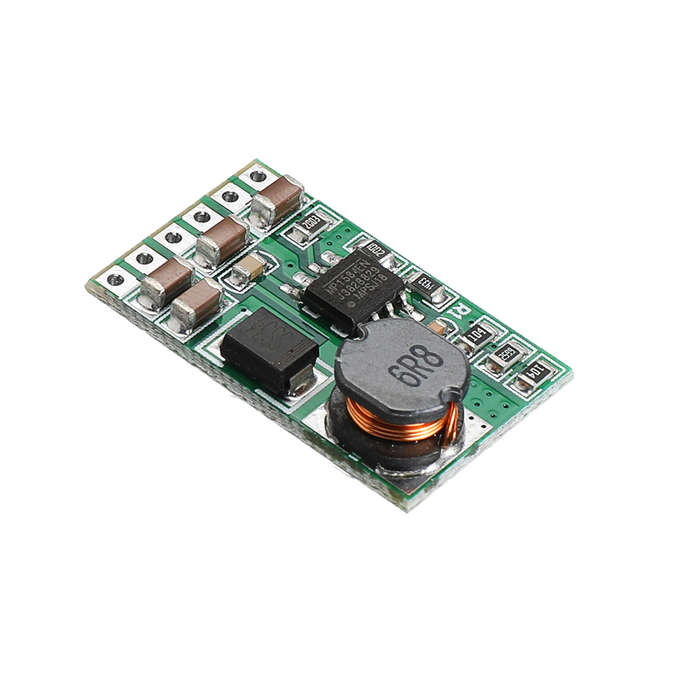

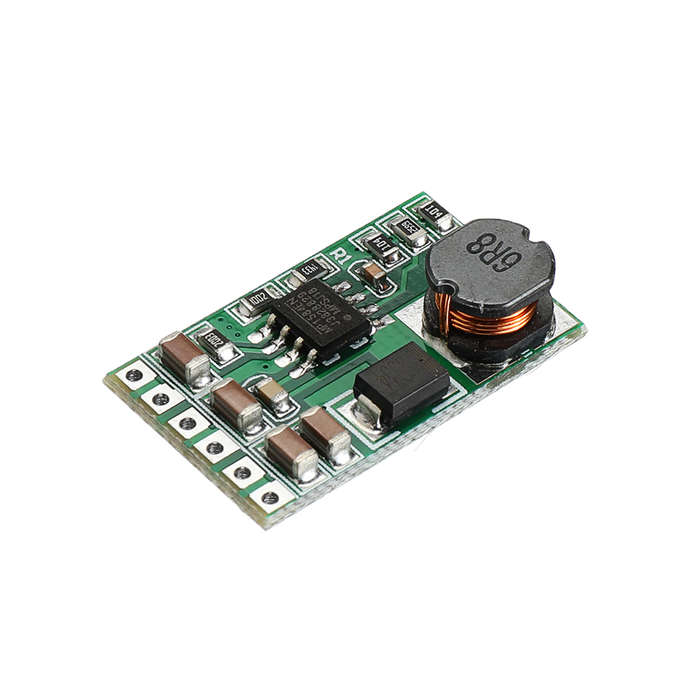

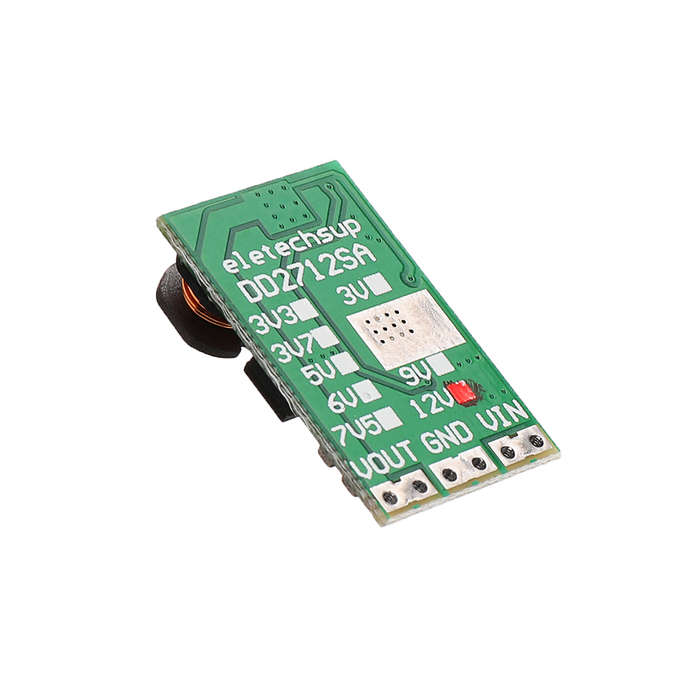

3pcs DD2712SA 3.5A Mini 5V-27V to 12V DC DC Step Down Buck Power Converter Module Voltage Regulator

New

20 available

R462.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4014

92.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654083569

Description: Input voltage: 5-27V Output voltage: 5V Maximum output current: 2.5A Short time maximum output current: 3.5A Quiescent current: about 250uA Working frequency: 900KHz. Working efficiency: 77-92% Size : 25 x 15 x 6.3 mm Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection. Note : 1. Input voltage can not be greater than the maximum input range. 2. Output power can not be greater than the maximum load for a long time. 3. Input power must be greater than the output power, because the power consumption of the module itself.

Applications: 5V MCU ARM STM32 CPU FPGA/CPLD 5V Motor CCTV camera Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee Smart home / home automation Distributed Power Systems Battery Charger Pre-Regulator for Linear Regulators areplace AMS1117-5.0 LM7805 LDO Package Included: 3 x DD2712SA 3.5A Mini 5V-27V to 12V Converter
