3pcs Electronic Analog Multiplexer Demultiplexer Module HC4051A8 8 Channel Switch Module 74HC4051 Bo

20 available / new
R377.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641108566

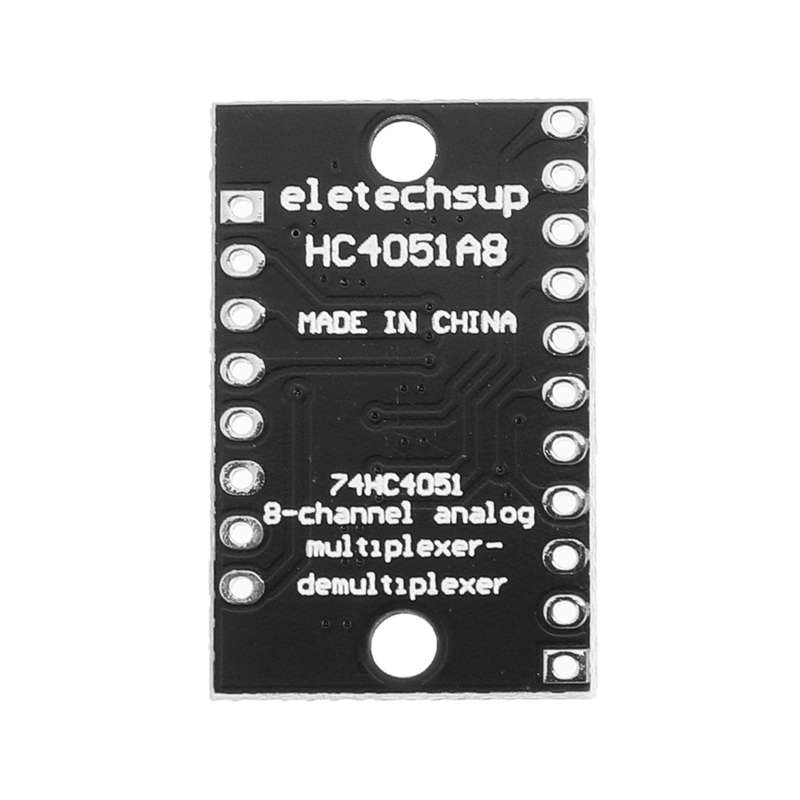

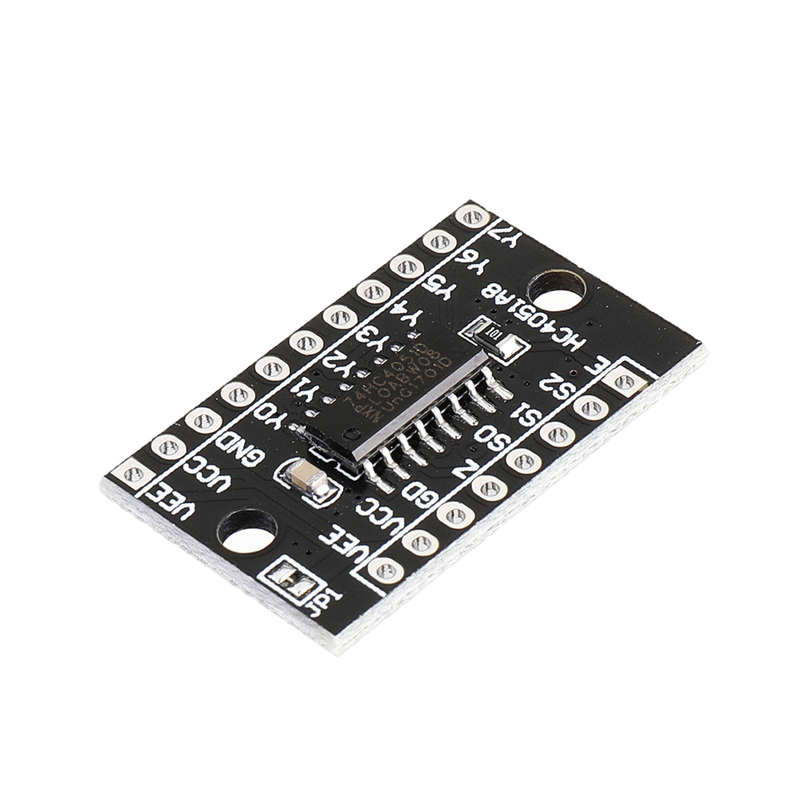

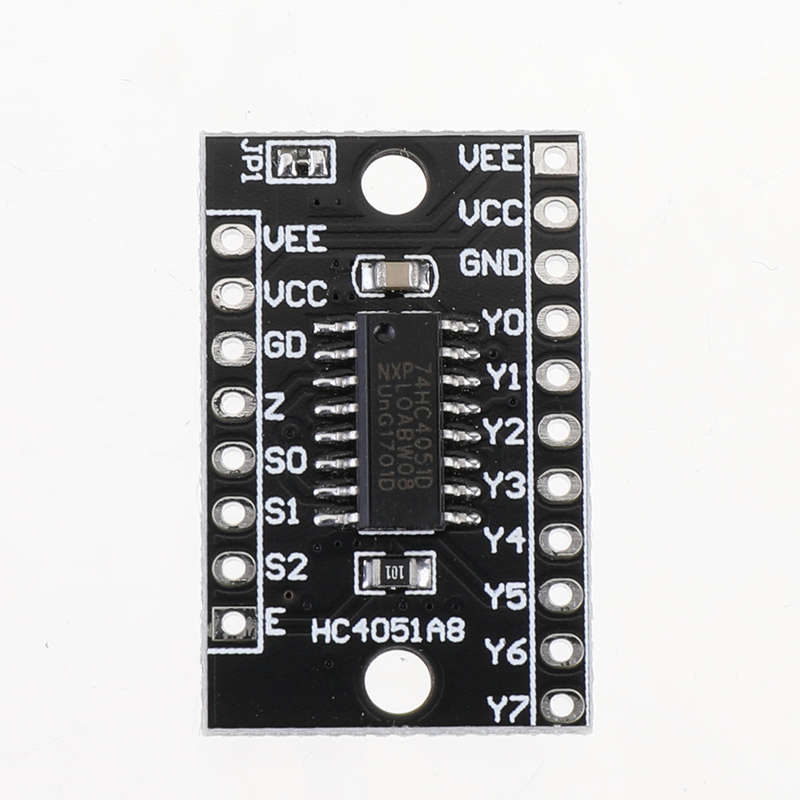

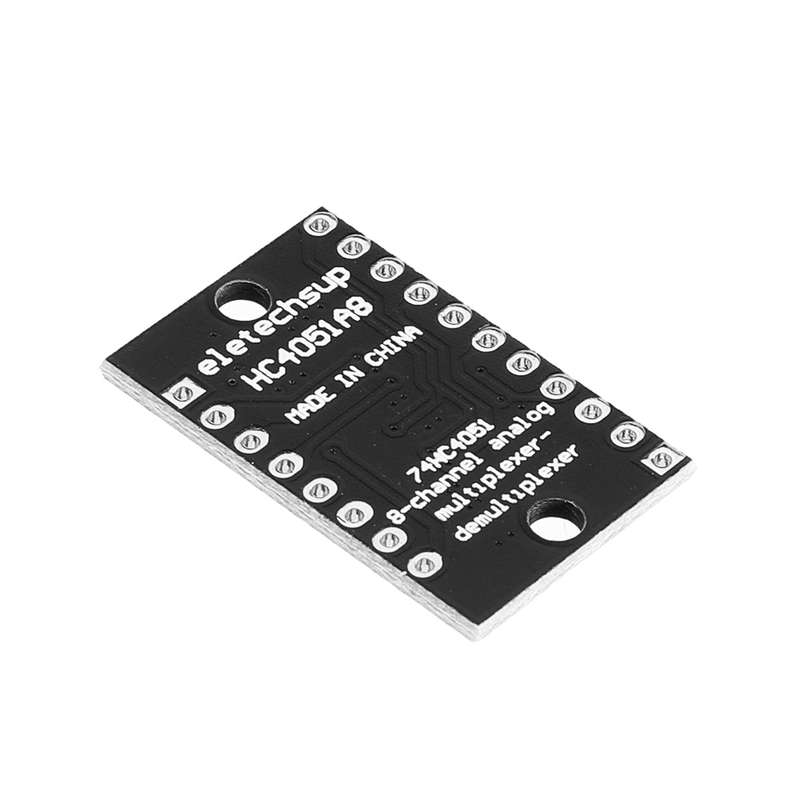

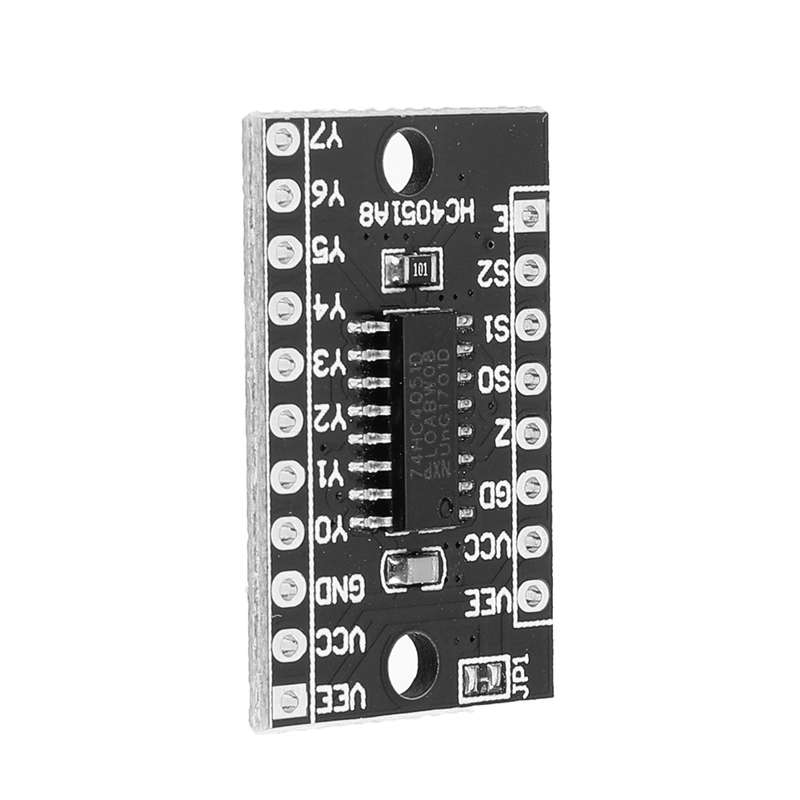

Features: 1. Wide analog input voltage range from -5 V to +5 V. 2. The low on-resistance has three typical value of different VEE. 3. Logic level conversion: enables 5 V logic to communicate with ±5 V analog signal. 4. ESD protection: HBM JESD22-A114F exceeds 2000 V; MM JESD22-A115-A exceeds 200 V; CDM JESD22-C101E exceeds 1000 V. 5. The HC4051A8 is a single-pole, eight-throw analog switch (SP8T) for analog or digital 8:1 multiplexer/demultiplexer applications. 6. The switch has three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), one common input/output (Z) and one digital enable input (E). 7. When E is high, the switch is turned off. The input includes a clamp diode. This enables the use of a current limiting resistor to connect the input to a voltage that exceeds VCC. Specification: Input Analog Voltage:-5~+5V Low On-Resistance: - VCC is 80 (typical) - VEE = 4.5 V. - VCC is 70 (typical) - VEE = 6.0 V. - VCC is 60 (typical) - VEE = 9.0 V. Logic Level Translation: Communicate 5 V Logic with ±5 V Analog Signals. Break before Close:Built-In ESD protection: - HBM JESD22-A114F exceeds 2000 V. - MM JESD22-A115-A exceeds 200 V. - CDM JESD22-C101E exceeds 1000 V. Size:27.94 x 17.78 x 3.3mm / 1.1 x 0.7 x 0.13in(Apply to bread board) Weight: 1.8 g / 0.06 oz(approx.) Applications: For Breadboard Suitable For MEGA2560 For MCU ARM AVR ADC For Raspberry Pi For PLC RS485 For Analog Acquisition Analog Multiplexing And Demultiplexing Digital Multiplexing And Demultiplexing Signal Gating Package Included: 3 x Analog Multiplexer Demultiplexer Module
