3Pcs Geekcreit ESP8266 ESP-01 ESP-01S WS2812 RGB LED Lamp Module Support for IDE Programming

20 available / new

R394.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641108636

Feature:

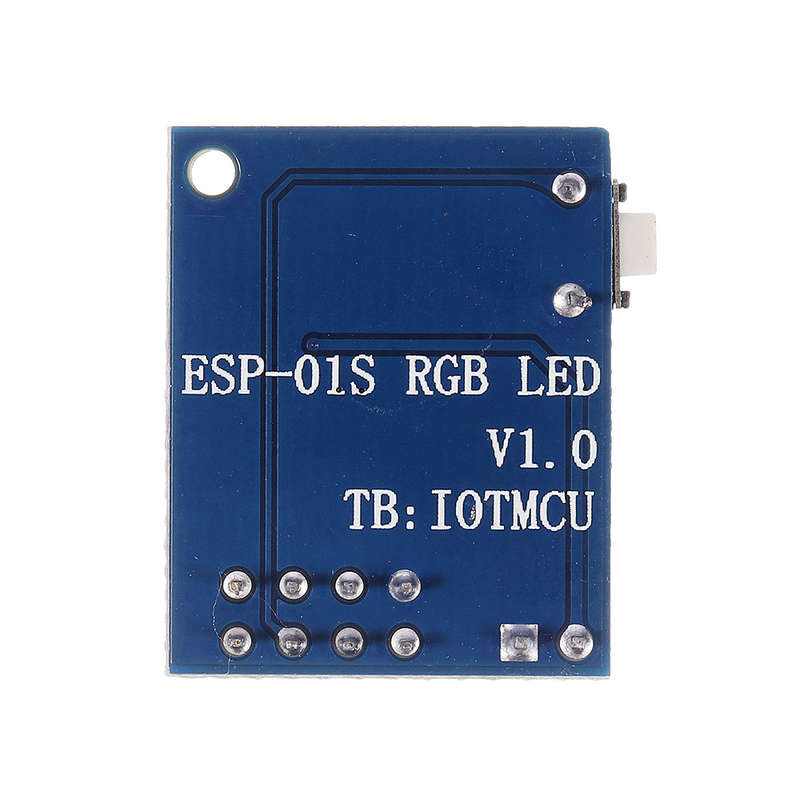

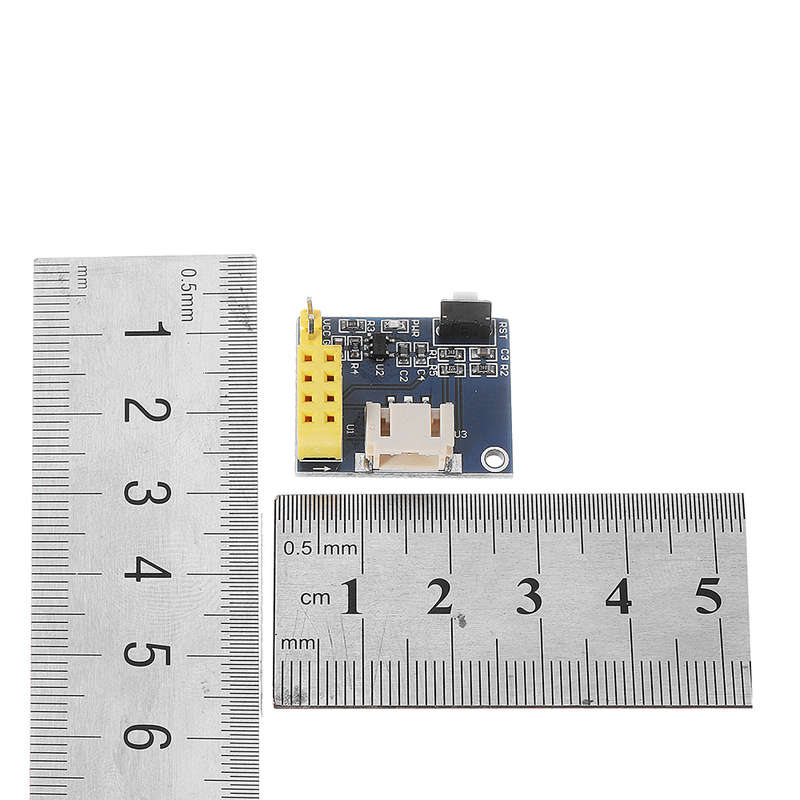

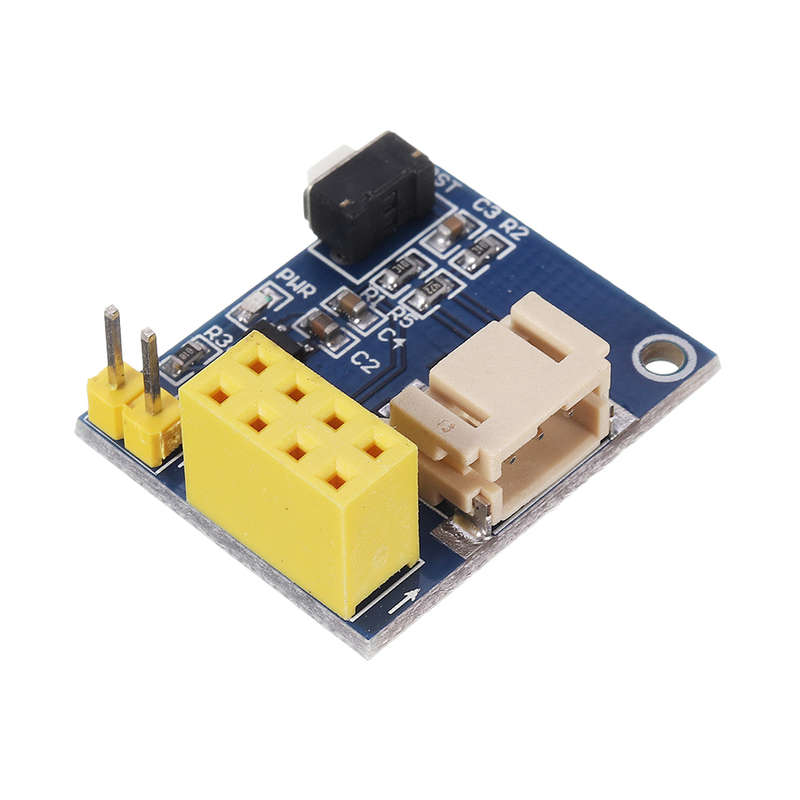

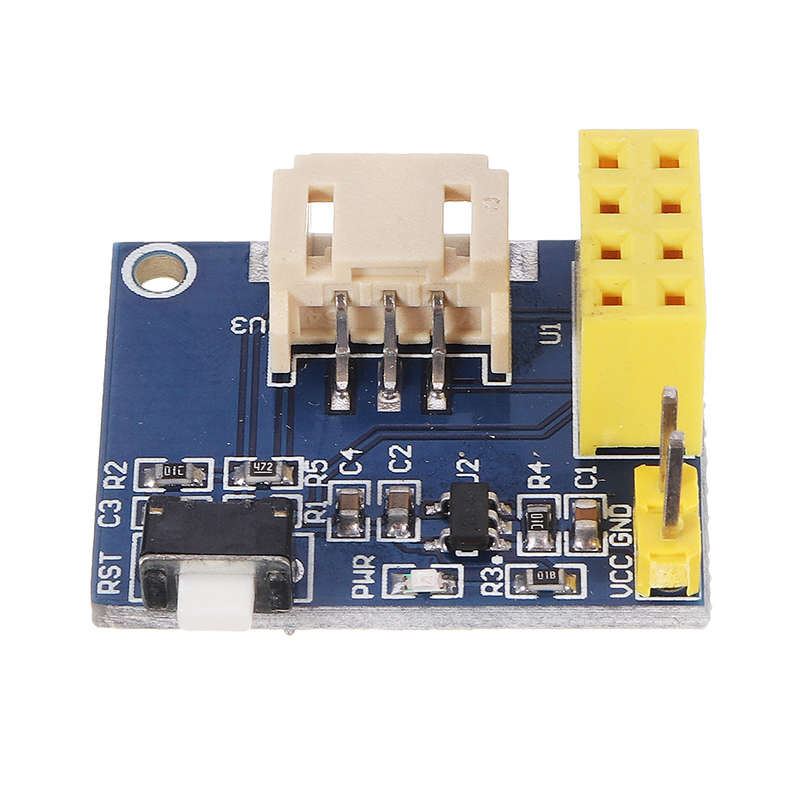

This is a WS2812 RGB LED control module based on ESP-01 / 01S. With it, you can easily control the WS2812 light bar / light ring. DIY own lighting control system. Support for Ard uino IDE programming. Characteristic:
* Master: ESP-01 / ESP-01S (This module does not include ESP-01 / ESP-01S) * Control Pin: GPIO2 * Interface: 3Pin PH2.0 connector * Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your light bar/lamp ring is 5V powered, use DC 3.7V-5V power supply.) * Support 3.7V lithium battery Application example:
1. Power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin) 2. Download the program to ESP-01S 3. Insert the ESP-01 / ESP-01S into the 2 * 4 Pin header (in the direction of the arrow) as shown below:
Package includes:

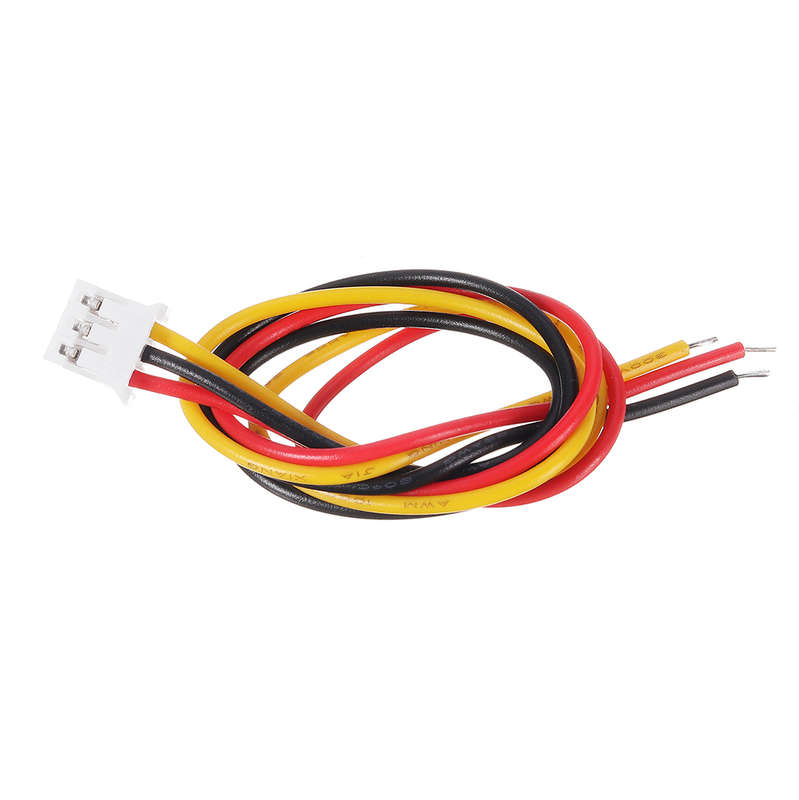

3 x ESP-01S RGB LED module (NOT include ESP-01S WiFi module and RGB LED) 3 x 3PIN PH2.0 connector
