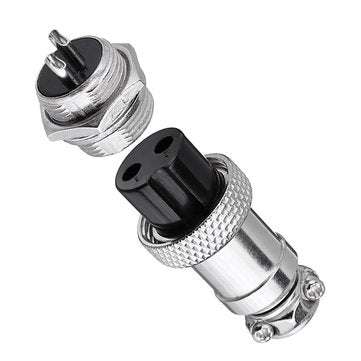

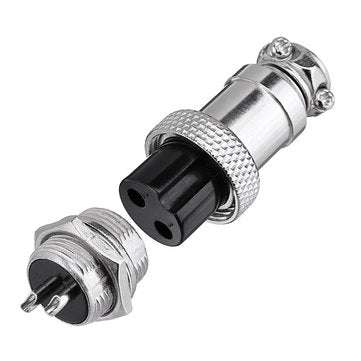

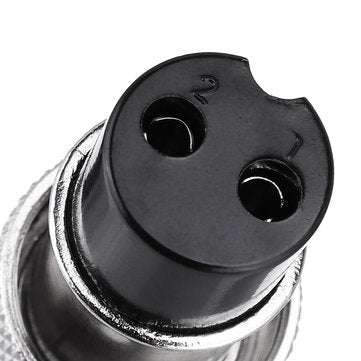

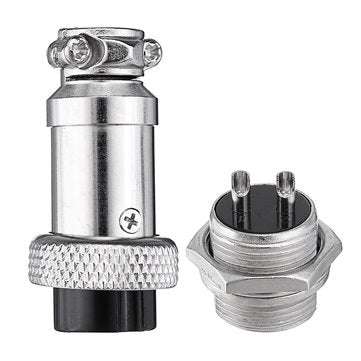

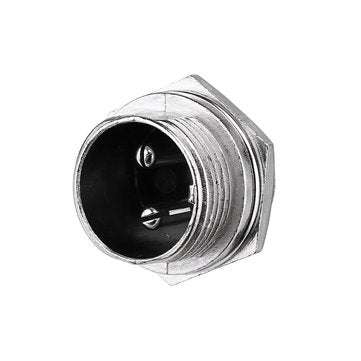

3pcs GX16-2 Pin Male And Female Diameter 16mm Wire Panel Connector GX16 Circular Aviation Connector

Description: Diameter: 16mm Ambient temperature: -50 ~ +70 C Relative humidity: up to 98% at +40 C Atmospheric pressure: up to 4,4 kpa Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2 Impact: Frequency of 60 to 80 beats/min, acceleration of 250m/s2 Centrifugal: acceleration 250m/s2 Main technical characteristics: Rated voltage: 250V Rated current: 5A Contact resistance: (each contact pair)Less than 0.005 Insulation resistance: In normal conditions, not less than 1000M; after constant warm tests, not less than 20M. Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single foot separation Force Temperature Rise: at rated load, the contact of the temperature rise should not exceed +50 C ambient temperature Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged

Package included:

3 x GX16-2 PinAviation Connector Socket Plug
