3pcs JDY-32 Dual Mode Bluetooth 4.2 Module SPP BLE Serial Port UART Interface

20 available / new

R350.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643364714

Product introduction: JDY-32 dual-mode Bluetooth is based on Bluetooth 3.0 SPP + Bluetooth 4.2 BLE design, which can support Windows, Linux, ios, android data transmission, working frequency 2.4GHZ, modulation mode GFSK, maximum transmission power 5db, maximum transmission distance 40 meters, Support users to modify the device name, baud rate and other commands through the AT command, which is convenient and quick to use. Applications: JDY-32 is a classic Bluetooth protocol that can communicate with Bluetooth-enabled computers (desktops, notebooks) and mobile phones (android). Can be applied aWindows computer Bluetooth serial port transparent transmission aAndroid Bluetooth serial port transparent transmission aSmart home control aAutomotive ODB testing equipment aBluetooth toy aShare mobile power, share weight aMedical equipment

Model	JDY-32
Working frequency	2.4GHZ
Communication Interface	UART
Operating Voltage	1.8-3.6V (3.3V recommended)
Operating temperature	-40 ﾣ C - 80 ﾣ C
Antenna	Built-in PCB antenna
Transmission distance	40 m
ma-ster-slave support	Slave

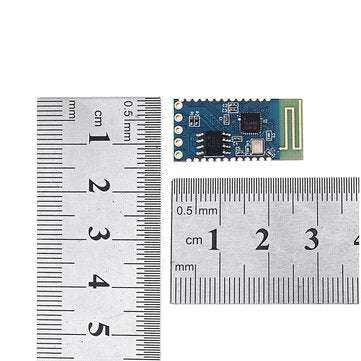

Module size	19.6 * 14.94 *1.8 mm (length, width, height)
Bluetooth version	Bluetooth 4.2 BLE/Bluetooth 3.0 SPP
SMT soldering temperature	<260ﾣC
Broadcast current	4.4mA
BLE connected current	3.8mA
SPP connected current	12mA
Transmit power	5db (maximum)
Receiving sensitivity	-97dbm
