3pcs JK-02 5V 0-200S Power-on On Delay Automatically Disconnects Timer Relay Module NE555

20 available / new

R285.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641108748

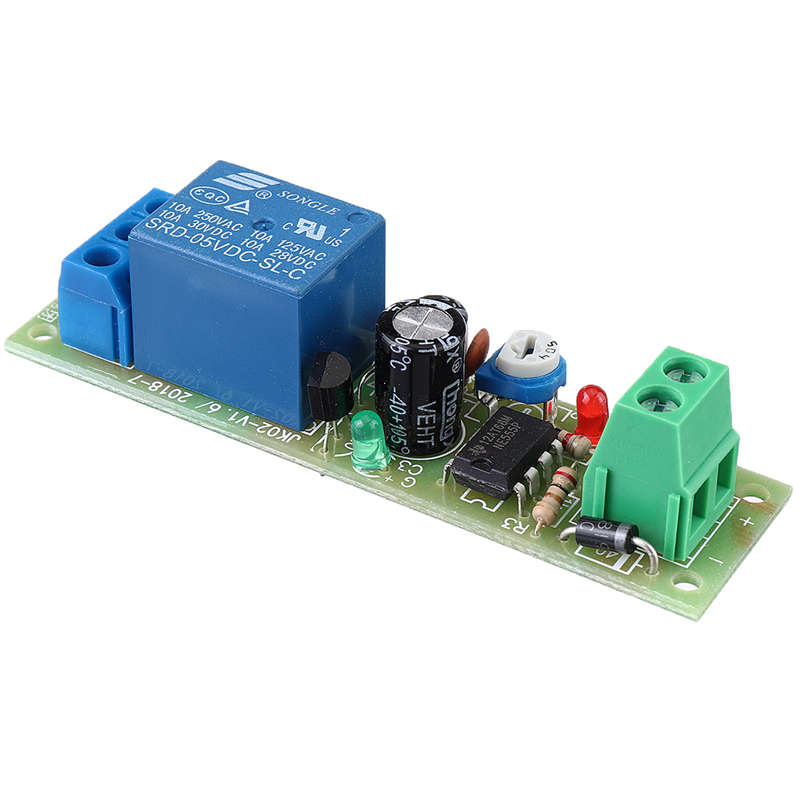

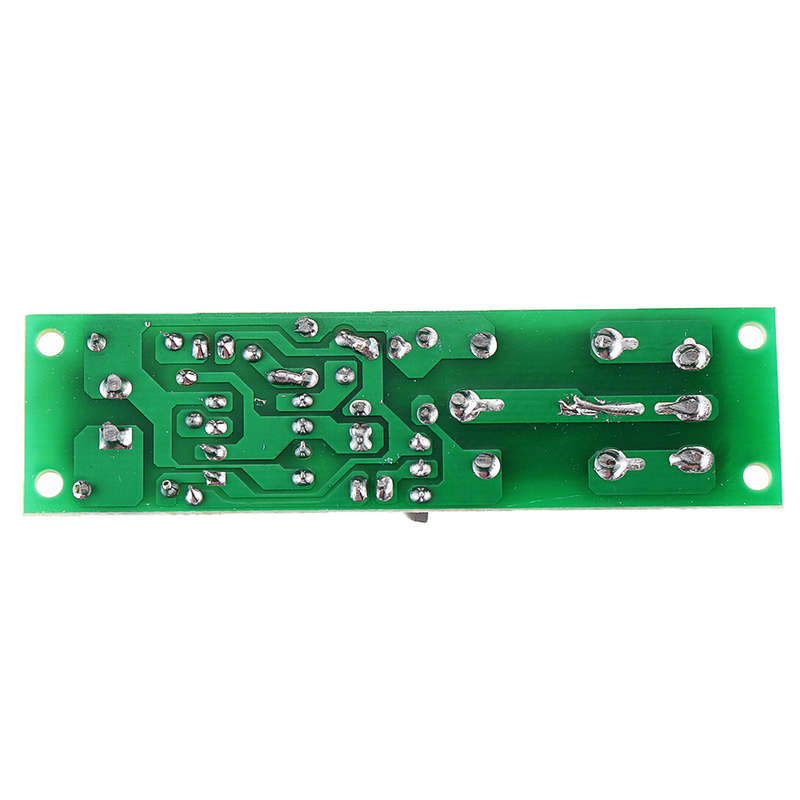

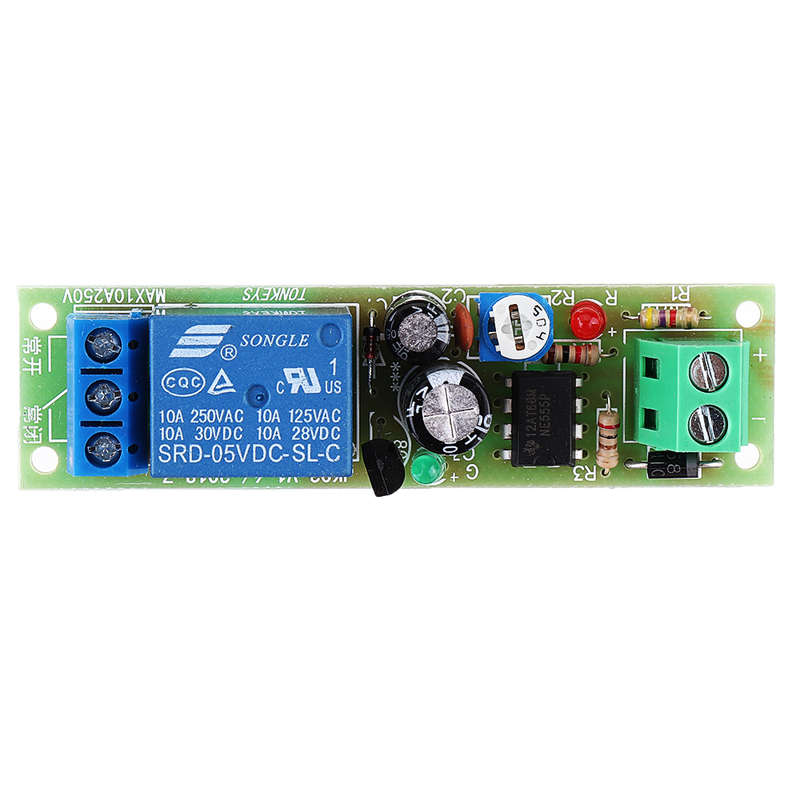

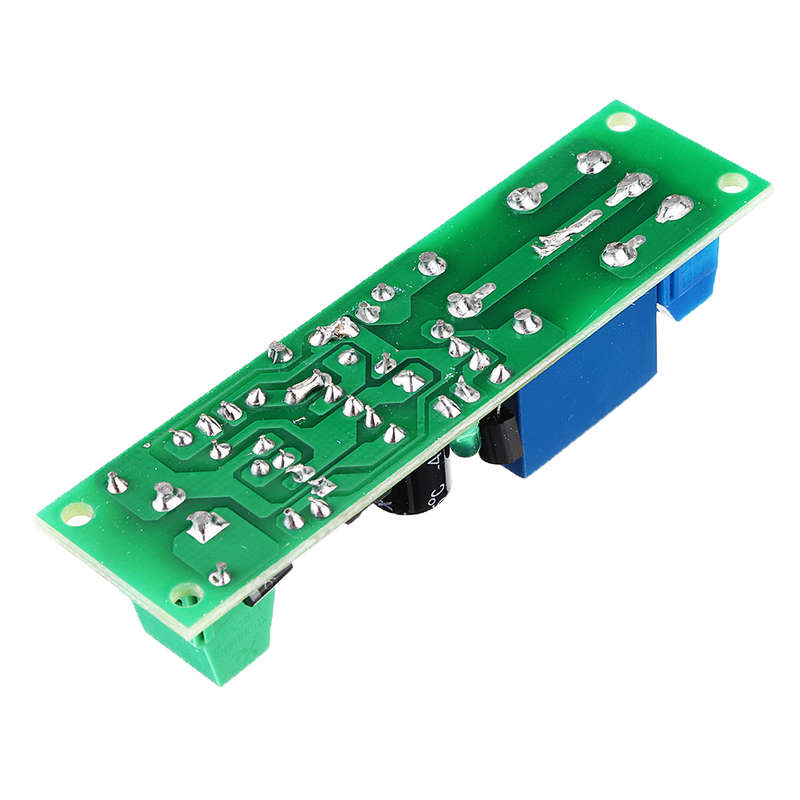

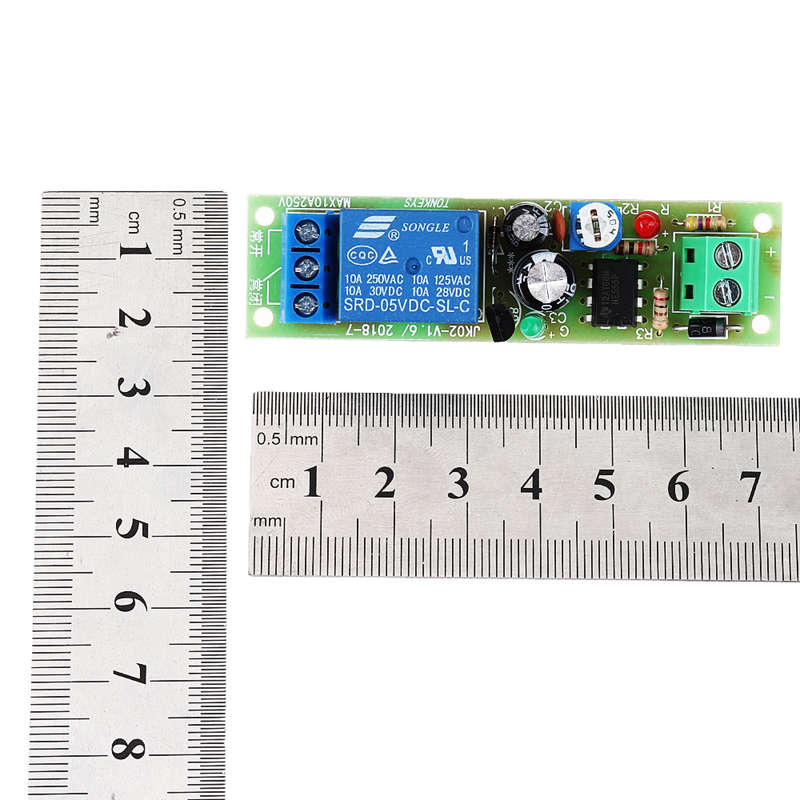

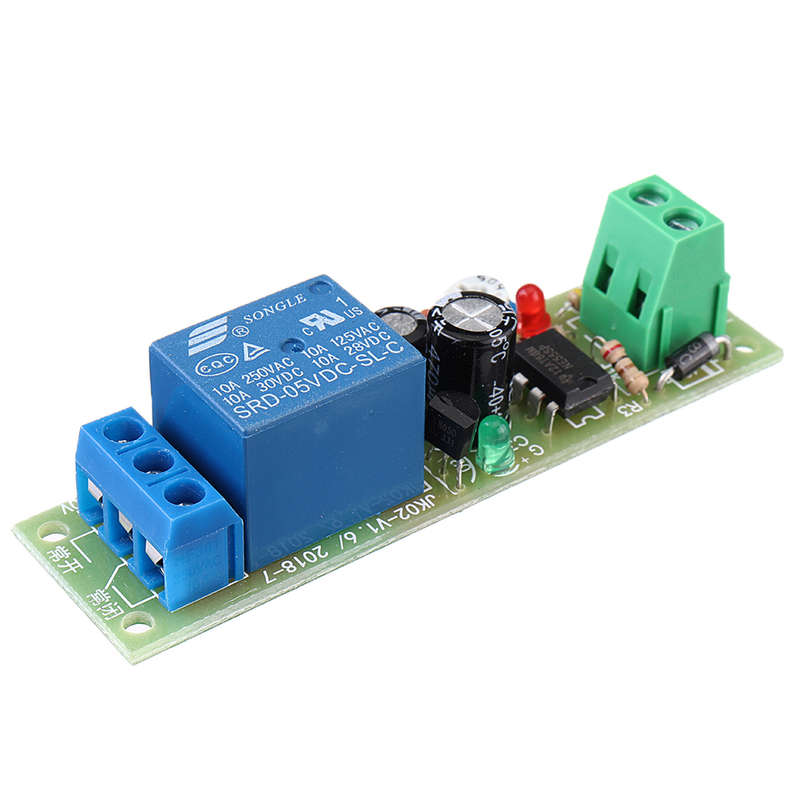

Features: - Function: Turn on the control panel immediately after it is connected to the power supply. After the set time has elapsed, disconnect the load. - Change the delay time length with an adjustable resistor. The delay time is adjustable from 0 to 200 seconds. - The relay is normally open and normally closed, connected to the normally closed end (NC) for delay switching, and connected to the normally open end (NO) for delay opening. - The circuit wiring is safe and reliable, and the load capacity is 10A 250V AC or 10A 30V DC. - With status indication, the red LED lights up to indicate that the module is plugged into the power supply, and the green LED is lit to indicate that the relay is in the pull-in state. - The quiescent current is less than 5mA, and the maximum current is 80mA after the suction. - PCB size: 75mm * 20mm with mounting holes. Package Included: 3 x JK-02 5V 0-200S Power-on On Delay Automatically Disconnects
