Name: 3pcs JK02B 12V DC Delay Relay Module 0-200S Adjustable Delayed Closure Time
SKU: 1630032 3pcs JK02B 12V DC Delay Relay Module 0-200S Adjustable Delayed Closure Time
Price: 179.00 ZAR
Availability: SoldOut

3pcs JK02B 12V DC Delay Relay Module 0-200S Adjustable Delayed Closure Time

New

5 were available

Indicative market price: R270.00

R179.00

34% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

WorldWide Traders1484

95.02 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: Only if item is faulty.

Get it now, pay later

Condition

New

Location

International

Product code

1630032 3pcs JK02B 12V DC Delay Relay Module 0-200S Adjustable Delayed Closure Time

Bob Shop ID

524965882

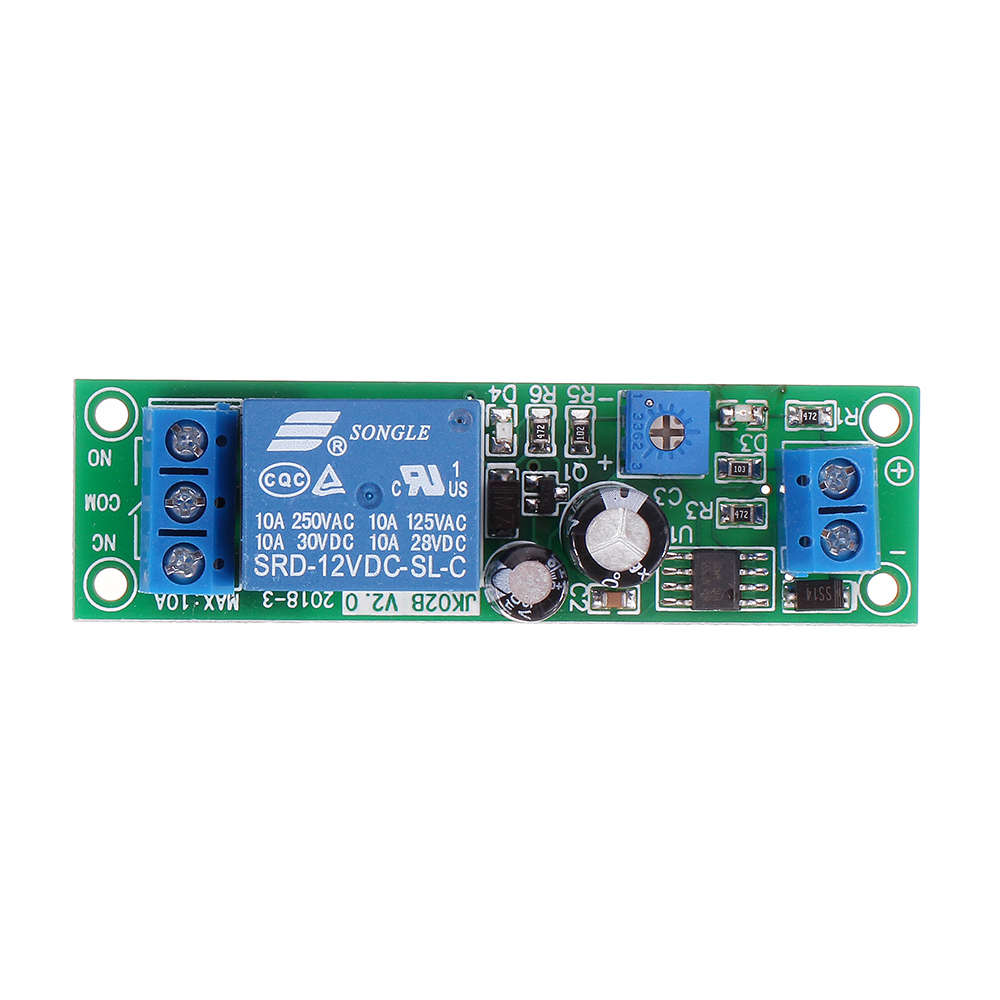

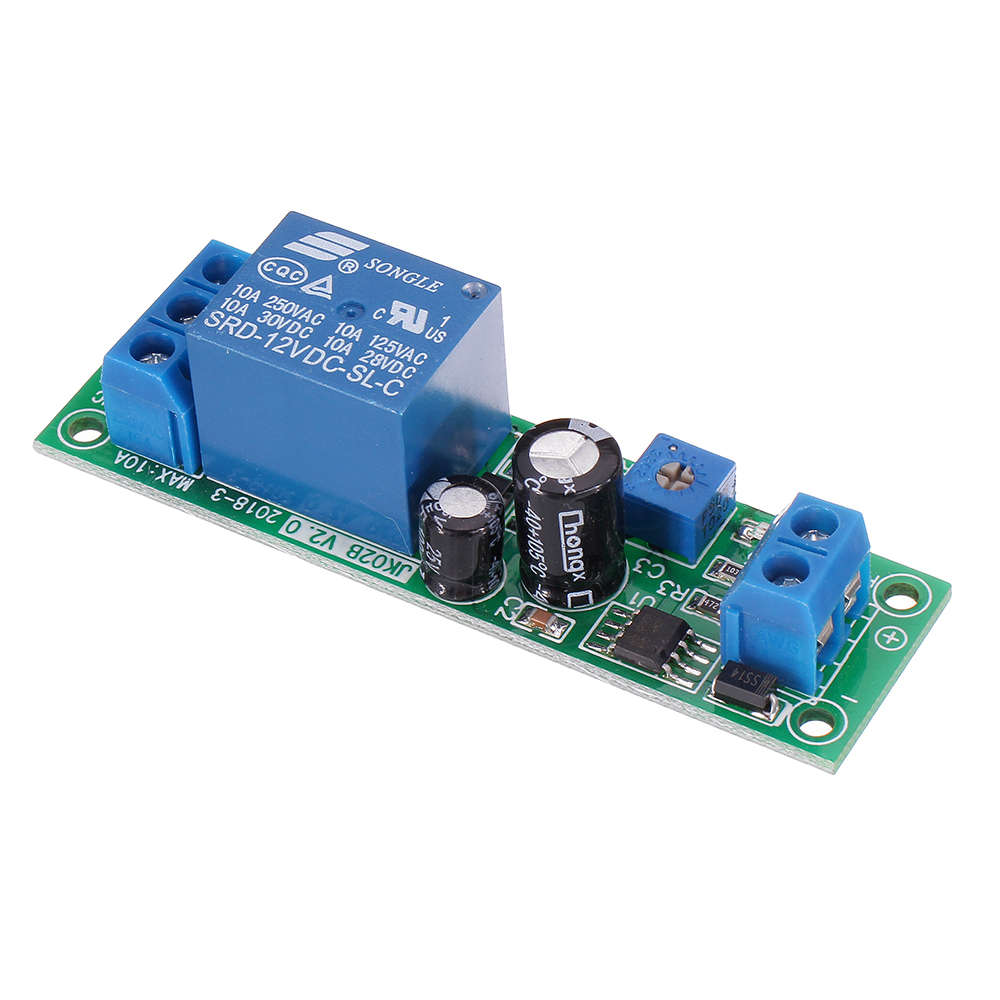

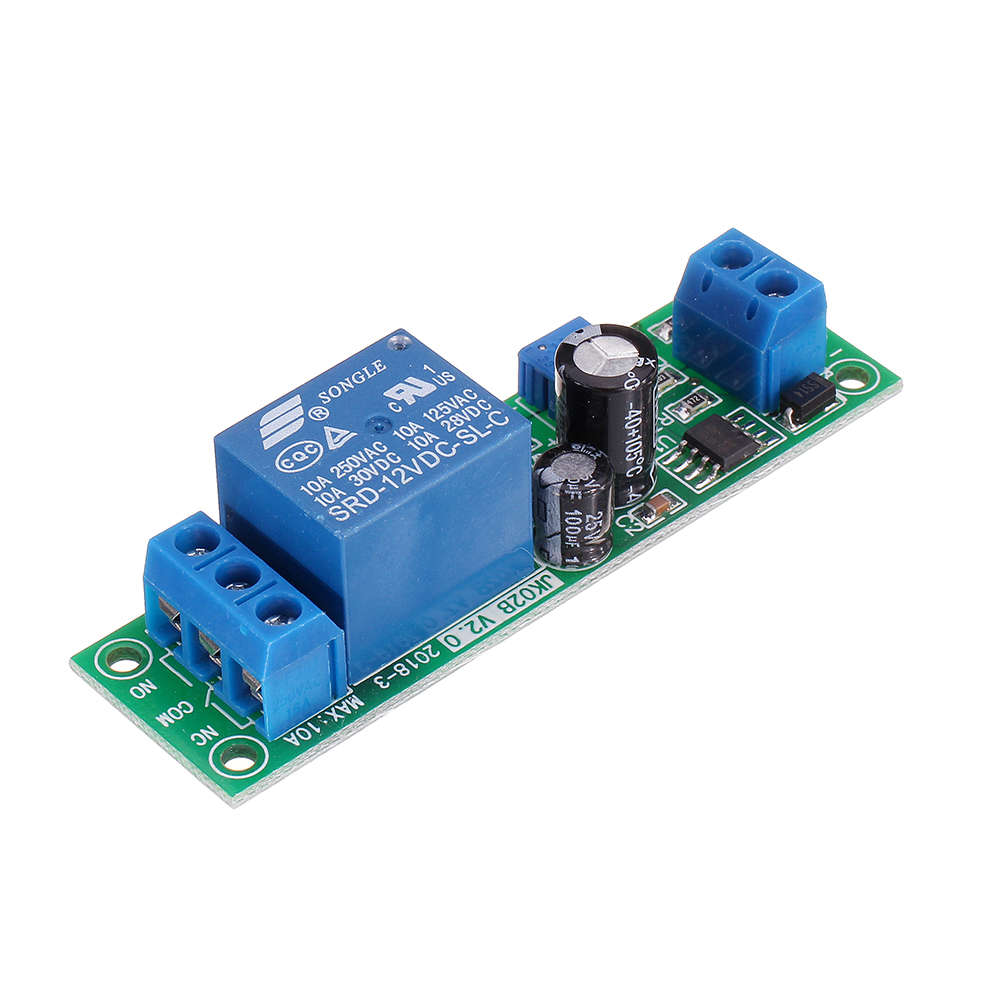

3pcs JK02B 12V DC Delay Relay Module 0-200S Adjustable Delayed Closure Timer Delay 10A NE555

Affordable and reliable Courier Shipping available at R89.00

Features:

- Function: The module is powered on, and after a delay, the relay closes and turns on the appliance.

- Features: JK02B time delay relay module, using NE555 as the time base, the circuit is simple and mature, and the performance is stable.

- Change the delay time length with an adjustable resistor. The delay time is adjustable from 0 to 200 seconds.

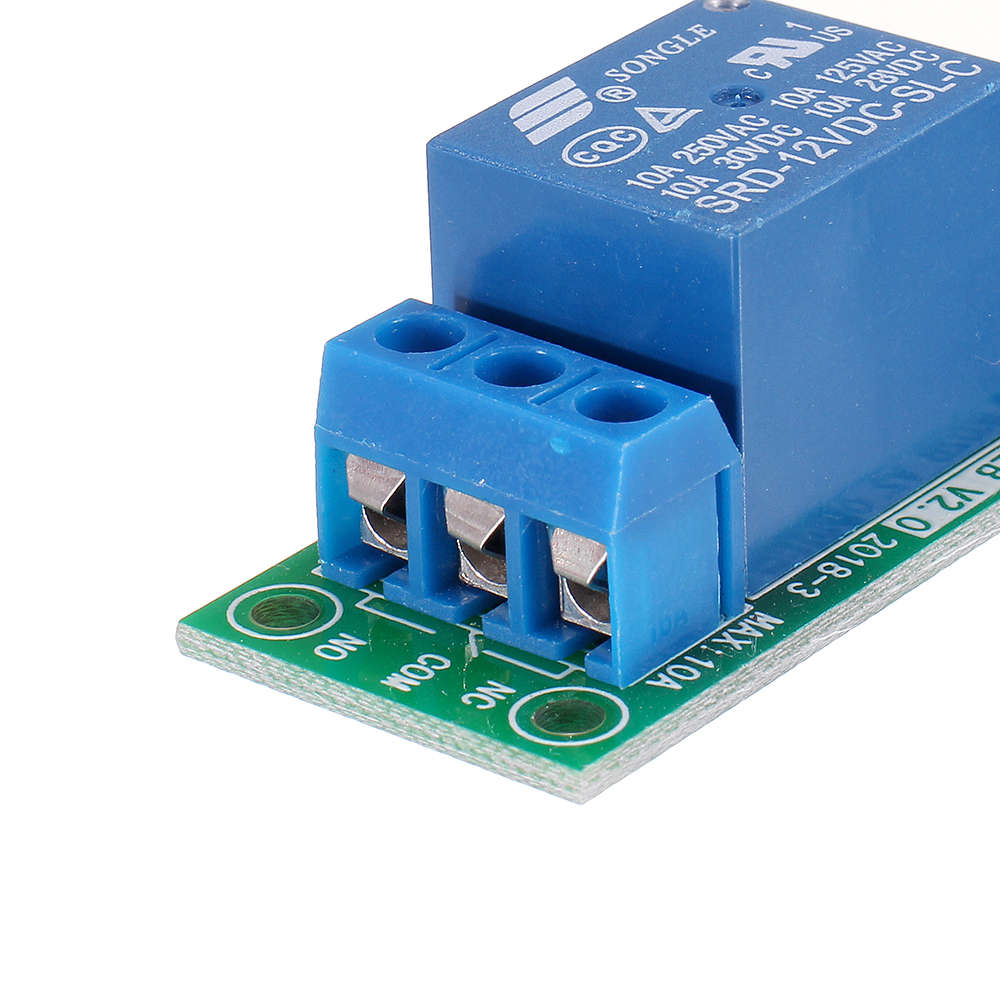

- Relays with normally open and normally closed terminals.

- The circuit wiring is safe and reliable, and the load capacity is 10A 250V AC or 10A 30V DC.

- With status indication, the red LED lights up to indicate that the module is plugged into the power supply, and the green LED is lit to indicate that the relay is in the pull-in state.

- Please note that the voltage range is 10V-16V DC.

- The quiescent current is less than 1mA, and the maximum current after pumping is 40mA.

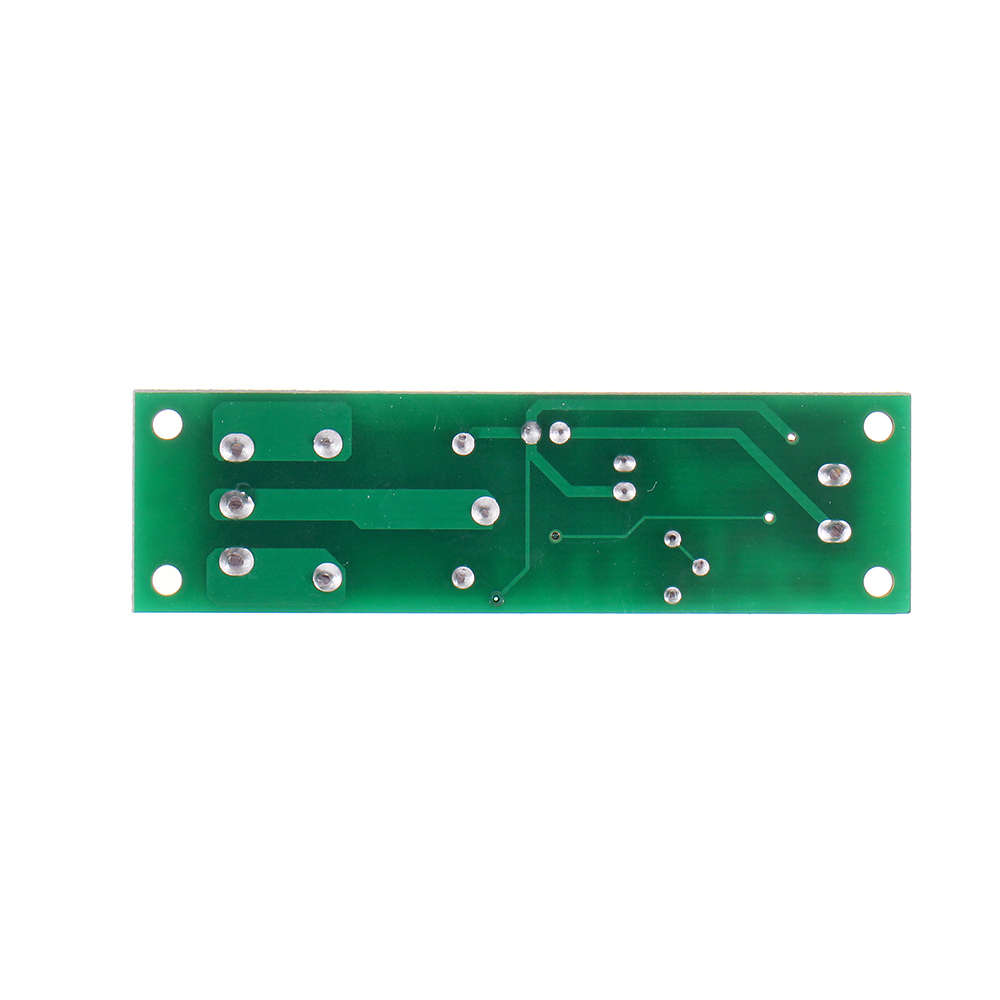

- PCB size: 70mm * 20mm with mounting holes.

- Suitable for delay device power supply.

Package Included:

3 x JK02B 12V DC Delay Relay Module 0-200S Adjustable Delayed

3pcs JK02B 12V DC Delay Relay Module 0-200S Adjustable Delayed Closure Timer Delay 10A NE555 3pcs JK02B 12V DC Delay Relay Module 0-200S Adjustable Delayed Closure Timer Delay 10A NE555 3pcs JK02B 12V DC Delay Relay Module 0-200S Adjustable Delayed Closure Timer Delay 10A NE555
