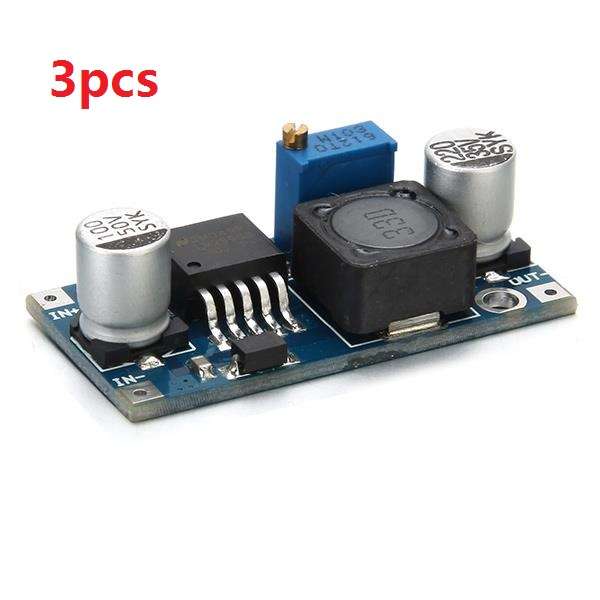

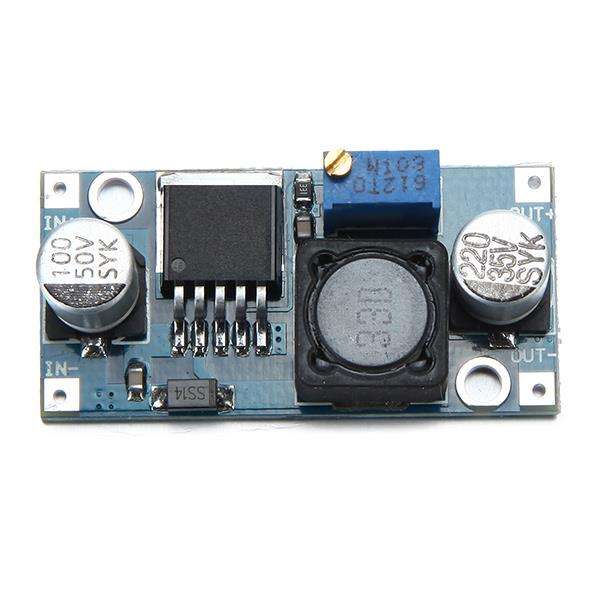

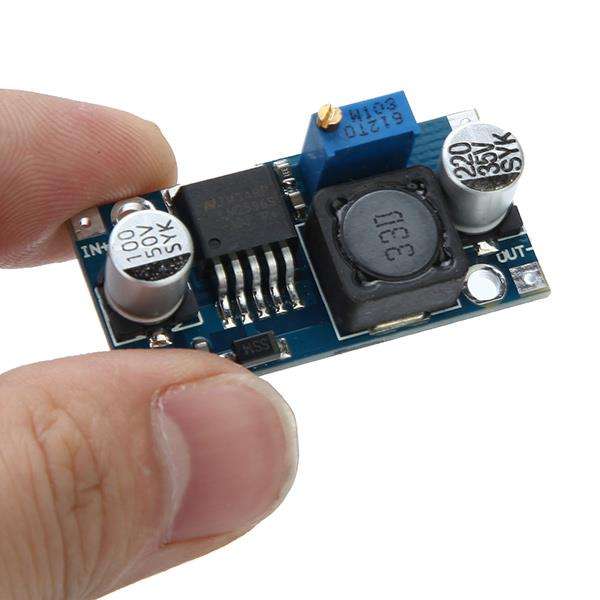

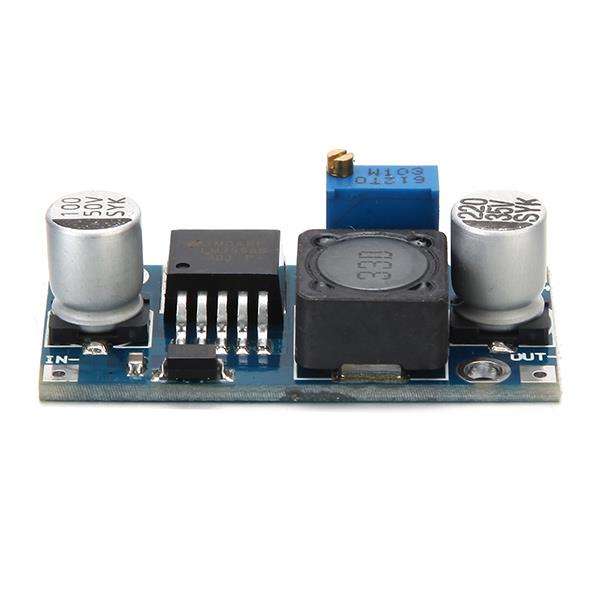

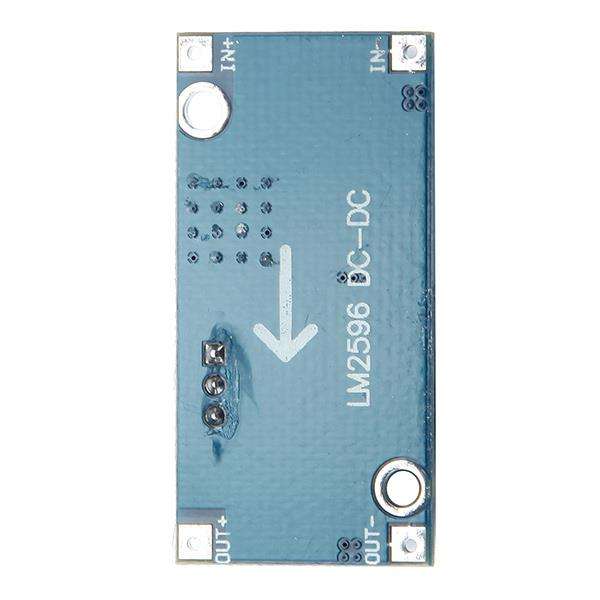

3Pcs LM2596 DC-DC Adjustable Step Down Power Supply Module
30 were available / new
Indicative market price:
R230.00
R150.00
35% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
Description: Input voltage: 4.5-35V Output voltage: 1.5-35V(Adjustable) Output current: Rated current is 2A,maximum 3A(Additional heatsink is required) Features: Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency) Switching Frequency: 150KHz Rectifier: Non-Synchronous Rectification Module Properties: Non-isolated step-down module (buck) Short Circuit Protection: Current limiting, since the recovery Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less) Full load Temperature rise: 40 Load Regulation: ± 0.5% Voltage Regulation: ± 2.5% Dynamic Response speed: 5% 200uS Dimension: 43*20*14mm (L*W*H)
Package Included: 3 x LM2596 DC-DC Step-down Module
