3pcs LM393 DC 5V Optoelectronic Sensor PIR Sensor Module With LED Instruction Slot Single Signal Out

New

20 available

R331.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4079

92.30 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654083883

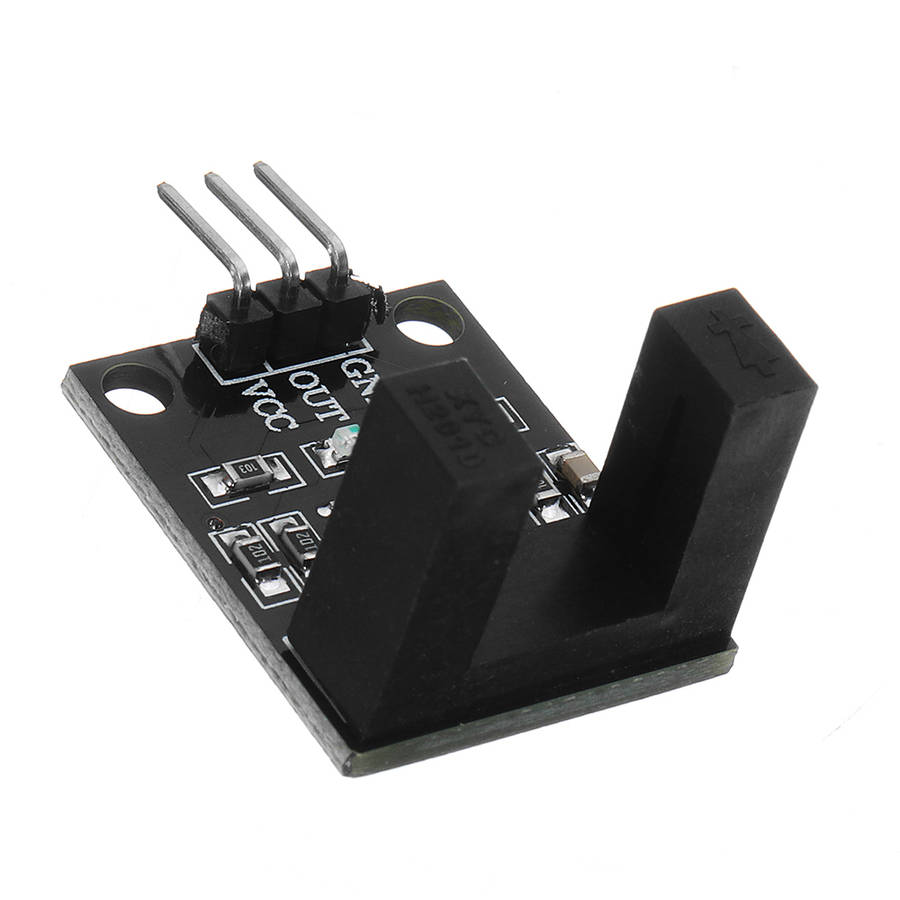

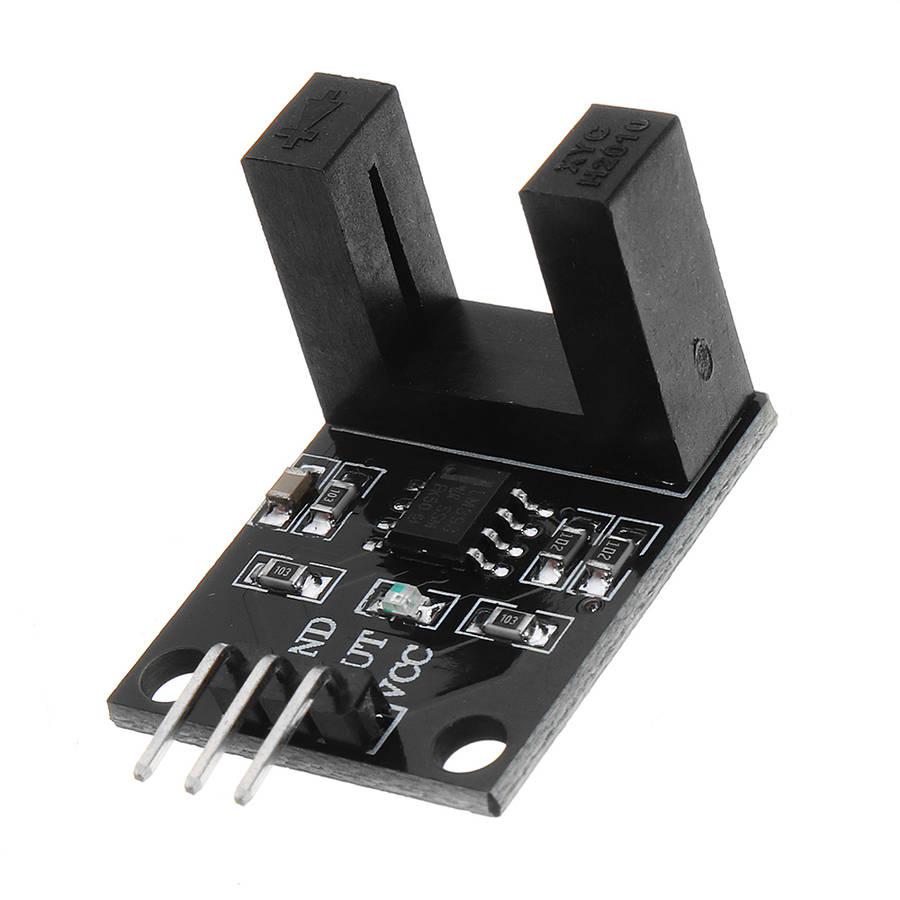

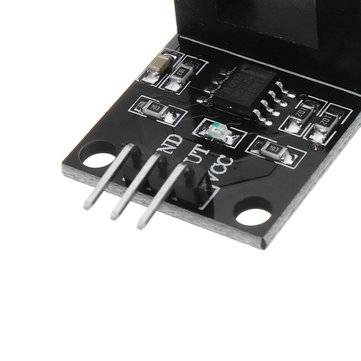

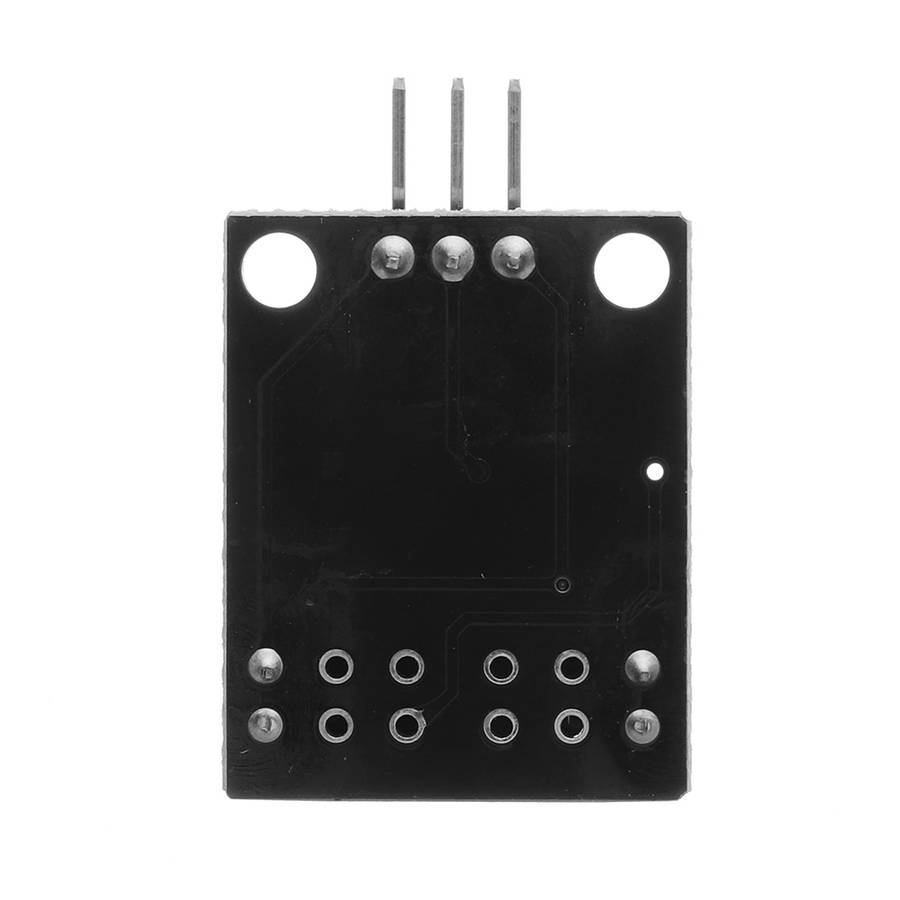

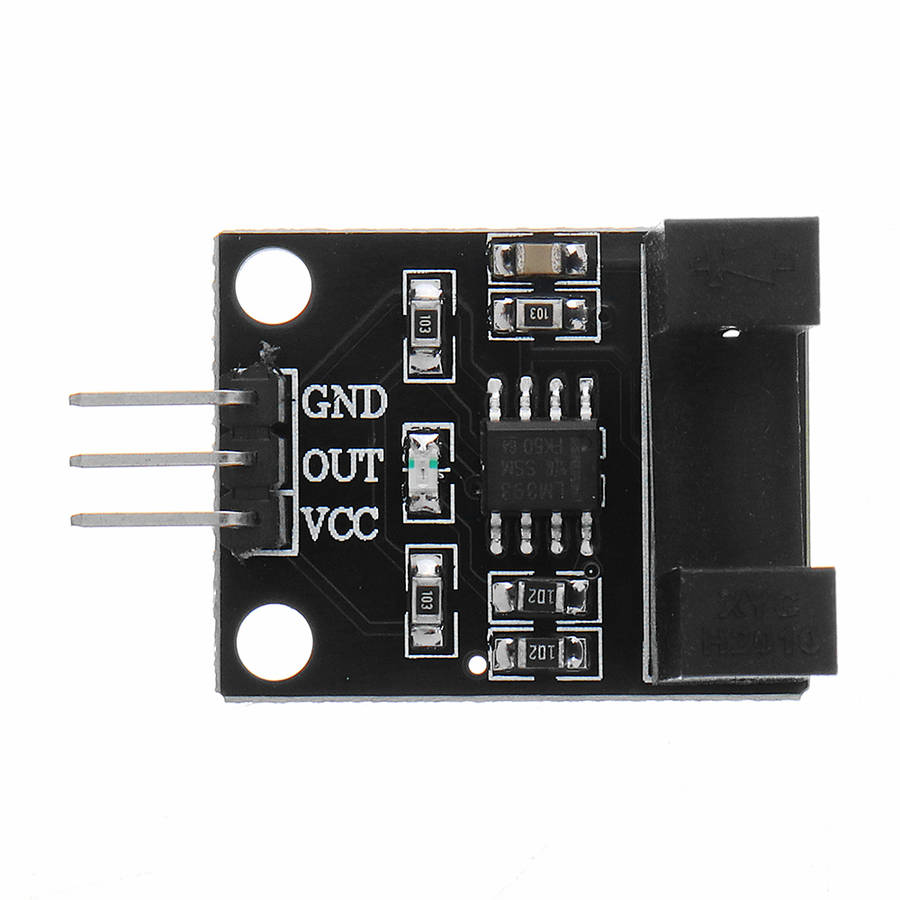

Specifications: The distance between PCB two circular hole (point to point center) is 1.5cm, and the aperture is 0.3cm. Slot type optocoupler slot width : 10mm Main chip: LM393, slot type optocoupler H2010 Working voltage: DC 5V Size: 32mm x11mm x 20mm Characteristic : 1. There is a signal output indication. 2. Single signal output. 3. When the object is blocked, the output is high level (LED lights out), and the output is low when there is no shelter. (LED lights). 4. The sensitivity is not adjustable. 5 It can be used for workpiece counting and motor speed measurement. 6. Circuit board output switch quantity Package Included: 3 x Optoelectronic PIR Sensor Module
