3pcs M5Stack SG90 Servo 9G SERVO Plastic Teeth Work with 8Servos HAT and PuppyC

20 available / new
R584.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641108829

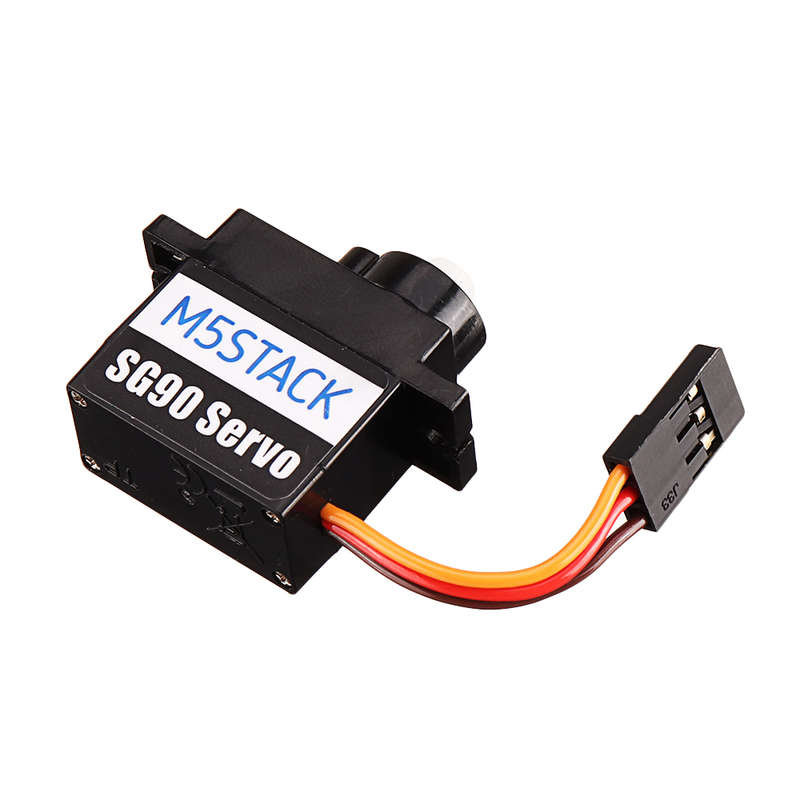

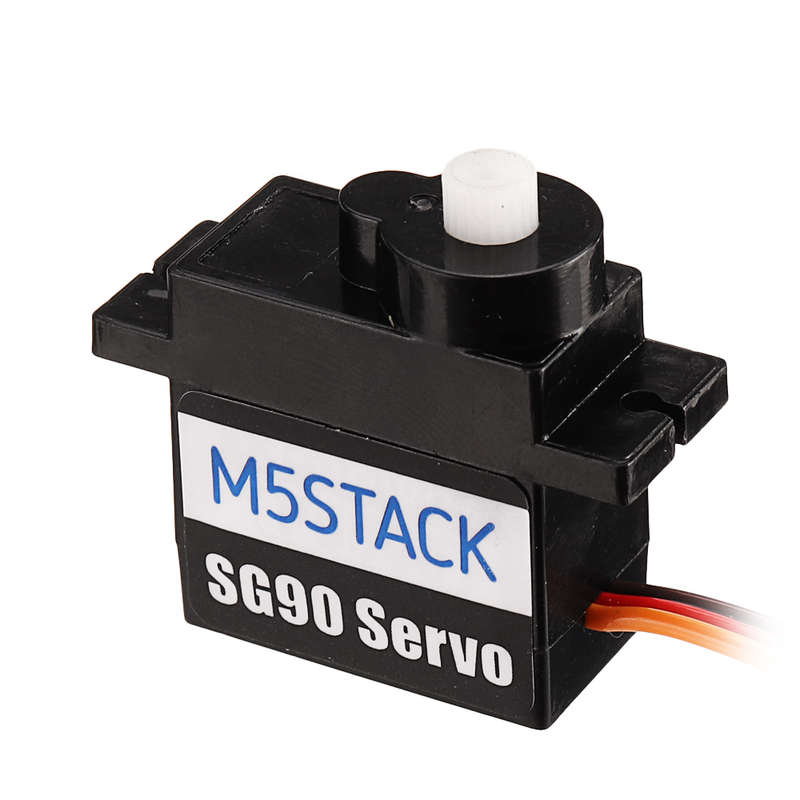

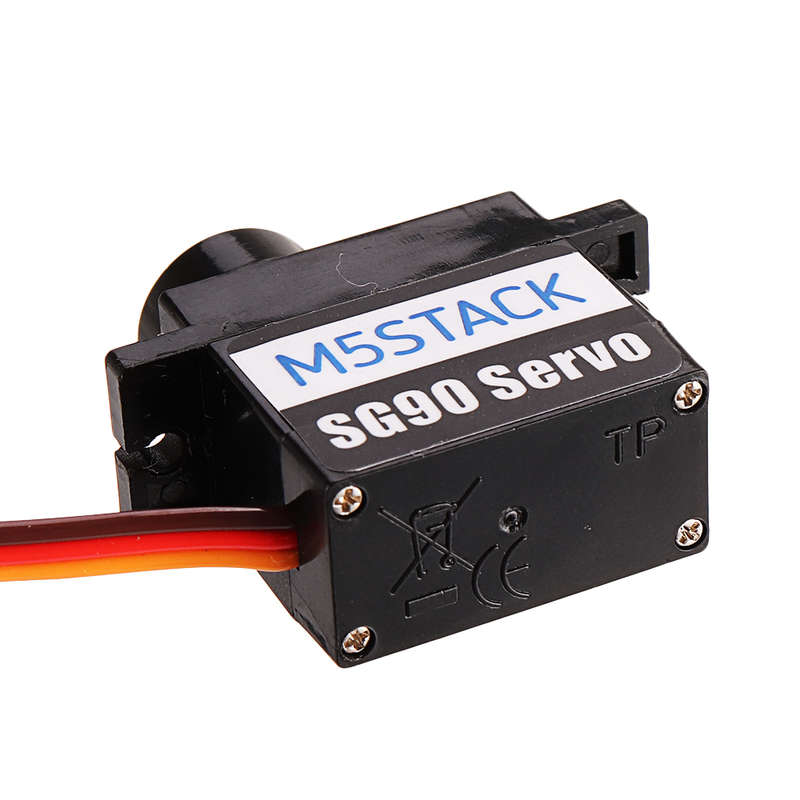

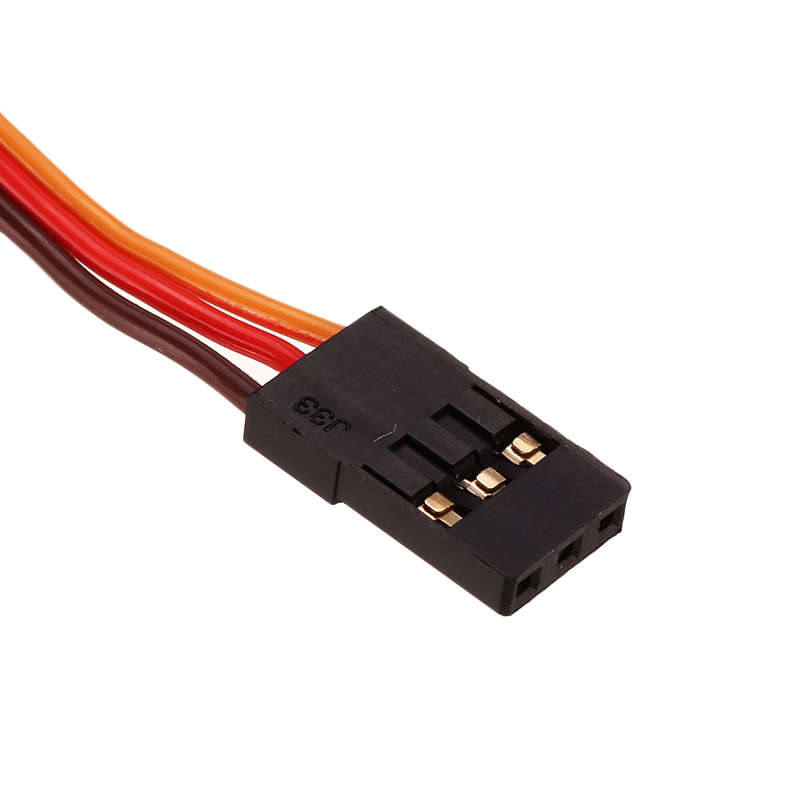

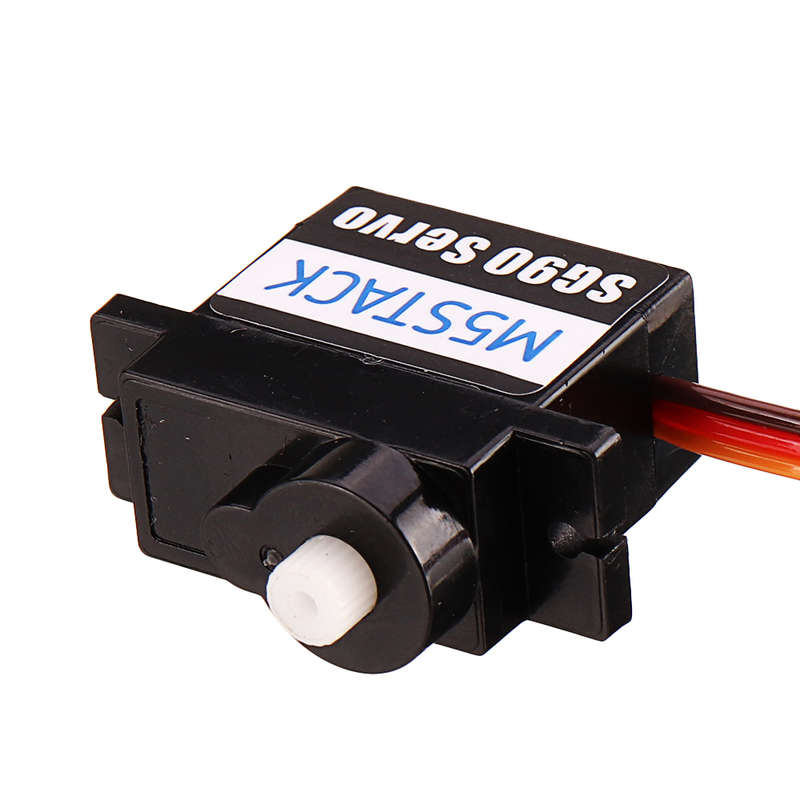

Description: SG90 servo is a M5Stack custom 9g servo.The angle of rotation is 0ᆪ~180ᆪ , it can be used with 8Servos HAT and PuppyC.This small servo is very easy to use for beginners. You don't have to use a dedicated drive board with feedback control , Any common servo driver and microcontroller can easily turn it up.Compared to driving a stepper motor, it is much simpler to use. You can use it to do some interesting small projects and control some angles.The commonly used pulse width is 1-2ms, 0ᆪ position (1.5ms), -90ᆪ position (1ms), 90ᆪ position (2ms) beyond the pulse width range will damage the servo.If you feel that the cable is not long enough, you can purchase the servo extension cable to extend it. Yellow is the signal cable, brown is the ground wire, and the red color is 5V. Pay attention to the supply current and voltage to prevent it from being burned. Features: #Gear material: plastic teeth #Weight: 9g #Size: 23mm x 12.2mm x 29mm #Torque: 1.6kgacm/4.8V;1.8kgacm/6.0V #Speed: 0.1sec/60ᆪ/4.8V;0.09sec/60ᆪ/6.0V #Cable length: 3cm #dead zone: 4m #Spline: 21T #Voltage: 4.8-6.0V Package Included: 3 x M5Stack SG90 Servo
