3Pcs Microwave Doppler X-Band Radar Sensor Wireless Module Motion Speed

Description:

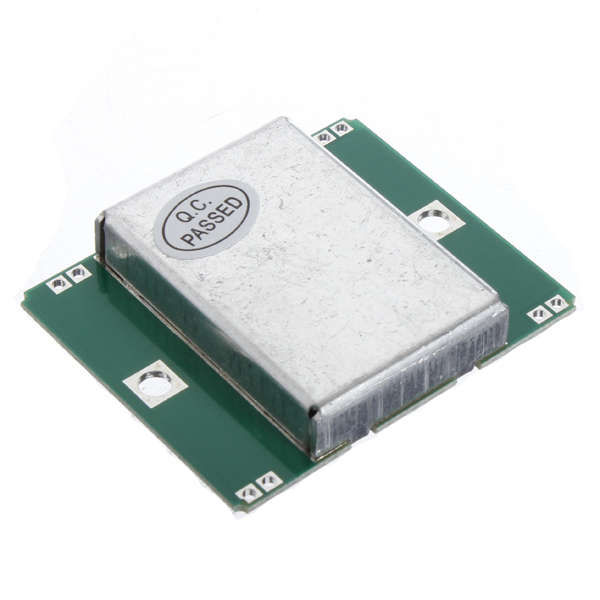

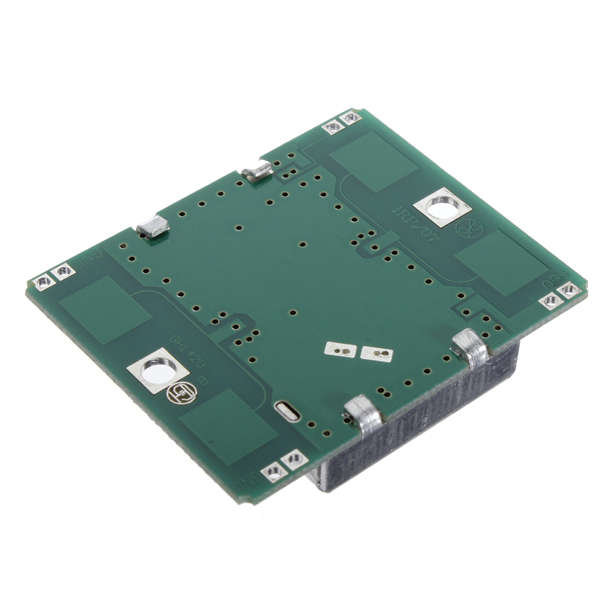

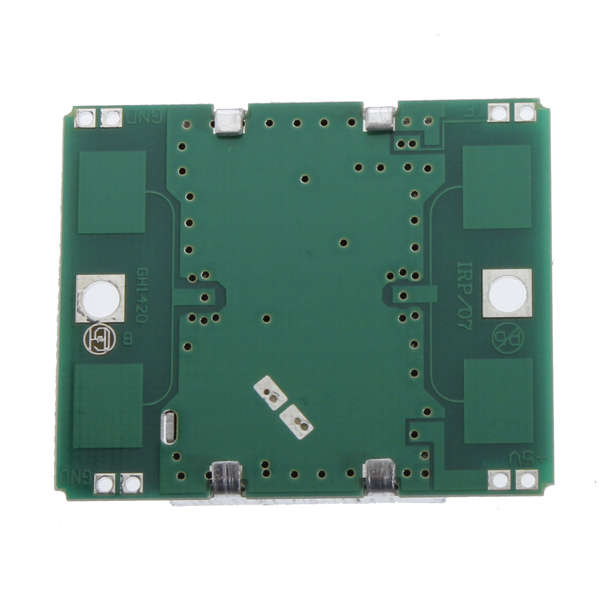

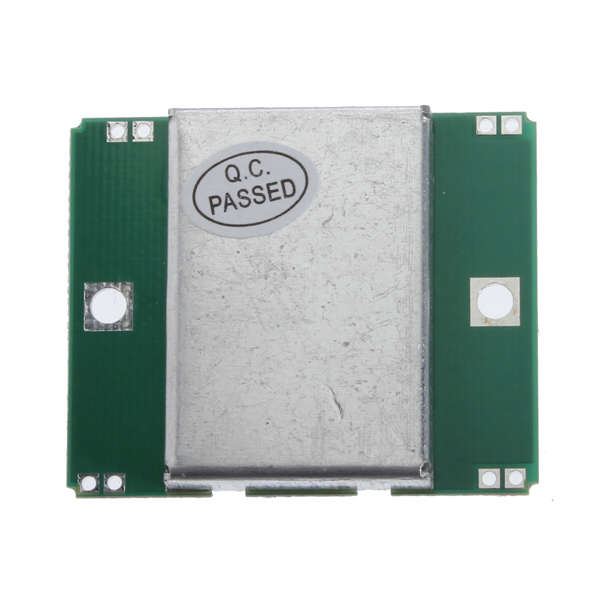

This HB100 Miniature Microwave Motion Sensor is a X-Band Bi-Static Doppler transceiver module. Its built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array, make it ideal for OEM usage in motion detection equipment. This module is ideally suitable for false alarms reduction in intruder detectors when work together with Passive Infrared (PIR) sensor. It can also be used for auto-door opening and vehicle speed measurement.

Features:

Great replacement for failing or faulty Doppler radar microwave motion sensor module
Highly resistant to radio-frequency interference
Detection range: Over 20 meters
Output power: 5mW
Dimension(L x W x T): Approx. 1.75 x 1.45 x 0.3 inch / 4.4 x 3.7 x 0.8cm
Non-contact detection
Independent of temperature, humidity, noise, airflow, dust, light, etc., suitable for harsh environments
Strong resistance to RF interference
Low cost & Low Power Consumption.
RF the Microwave Sensor.and use Doppler principle.

Specifications:

Transmitter:
Frequency : 10.525GHz
Frequency Setting Accuracy : 3MHz
Power Output (Min.) : 13dBm EIRP
Operating Voltage : +5V +/- 0.25V
Operating Current (CW): 60mA max, 37mA typical
Harmonic Emissions: -10dBm

Receiver:
Sensitivity (10dB S/N ratio) in 3Hz to 80Hz band width : -86dBm
Noise in 3Hz to 80Hz band width : 10V
Antenna Gain : 8dBi
E Plane 3dB Beamwidth : 36'.
H Plane 3dB Beamwidth: 72'

Application:

Security alarms and sensors
Automatic door and gate systems
ATM machines
Car, van and lorry reversal warning systems
Light sensors
Traffic observation and control applications

Package included:

3 x sensor
