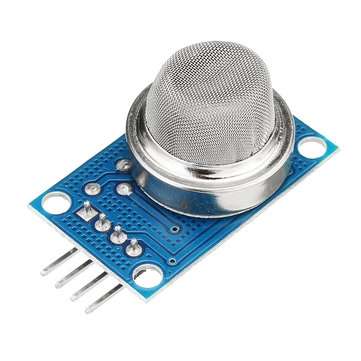

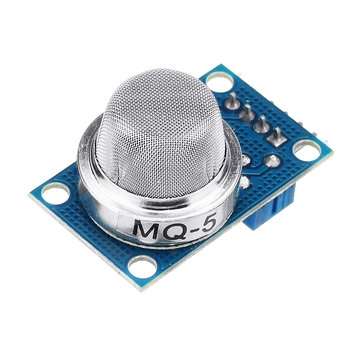

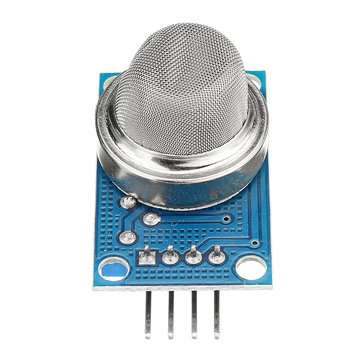

3pcs MQ-5 Liquefied Gas/Methane/Coal Gas/LPG Gas Sensor Module Shield Liquefied Electronic

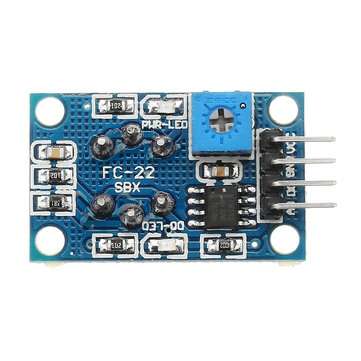

Features : - Sensitive material MQ-5 gas sensor is used to clean the air in the lower conductivity of tin dioxide (SnO2). When there is the environment in which the combustible gas sensor , conductivity sensor with increasing concentration of combustible gases in air increases . - Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal.MQ-5 gas sensor of high butane , propane, methane sensitivity, methane and propane can be better taken into account. - This sensor can detect a variety of combustible gases, especially natural gas , is a low-cost sensor for a variety of applications . - Suitable for home or industrial liquefied petroleum gas , natural gas, coal gas monitoring devices. Excellent resistance to alcohol, smoke interference. Speciffications: 1. It adopts high quality double panel design with power indication and TTL signal output indication; 2. It has DO switch signal (TTL) output and AO analog signal output; 3. The TTL output valid signal is low. (When the output is low, the signal light is on, it can be directly connected to the MCU or relay module) 4. The voltage of the analog output, the higher the concentration, the higher the voltage. 5. It has good sensitivity to gas and natural gas detection. 6, there are four screw holes for easy positioning; 7, product dimensions: 32 (L) * 20 (W) * 22 (H) 8, has a long service life and reliable stability 9, fast response recovery characteristics Electrical Performance: Dection of gas: Liquefied gas/Methane/Coal gas/LPG Dection of Concentration:300-10000ppm Input voltage: DC5V Power consumption (current): 150mA DO output: TTL digital quantities 0 and 1 (0.1 and 5V) AO output: 0.1-0.3V (relatively non-polluting), the highest concentration voltage is about 4V Using the chip: AT89S52 Crystal: 11.0592MHZ Baud rate: 9600 Compilation environment: Keil Special Reminder: After the sensor is energized, it needs to be preheated for about 20S, and the measured data is stable. The heating of the sensor is a normal phenomenon, because there is a heating wire inside, if it is hot, it is not normal. Package Included: 3 x MQ-5 Gas Sensor Module
