3pcs NE555 Chip Time Delay Relay Module Single Steady Switch Time Switch 12V

20 available / new

R362.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641108912

Description: 1. Put on the power relay and delay suction. Specifically: after supplying 12V power supply to relay, relay will not absorb immediately. The state of output terminal of relay is: normally open and public disconnect, normally closed and public conduction; when the delay is 1-10S (adjustable), the relay sucks. At this time, the state of output terminal of relay is: normally open and public conduction, often closed and public disconnection; as long as the module is continuously powered, this state will be maintained. Hold. 2. Adjustable delay time, (0-10 seconds) 4. Increasing potentiometer can increase delay time 5. Increasing capacitance C1 can increase delay time 6. Indicator lamp with input power supply 7. Suction indicator with relay 8. Controllable 220V/10A AC equipment. (Maximum Control Equipment 2000W) 9. It has relay continuous current protection. 10. Delay time formula: T = 1.1RC. For example: capacitance 100uF resistance 100KT = 1.1 * 100000 * 0.0001 = 11 seconds

Feature:

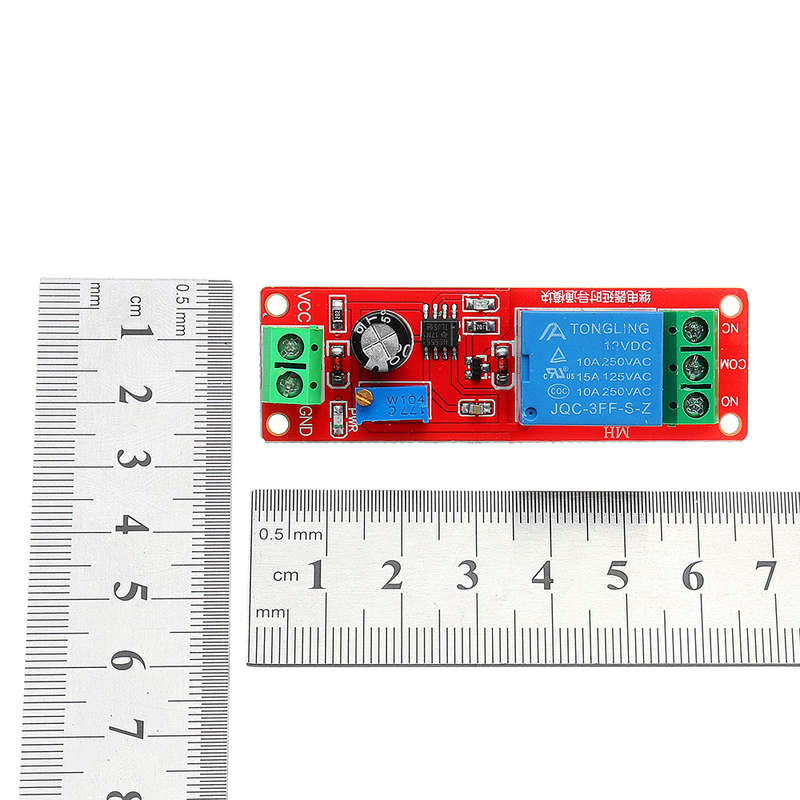

Size: 6.8CM x 2.1CM Main chip: NE555 Working Voltage: 12V DC Package Included:

3 xNE555 Chip Time Delay Relay Module
