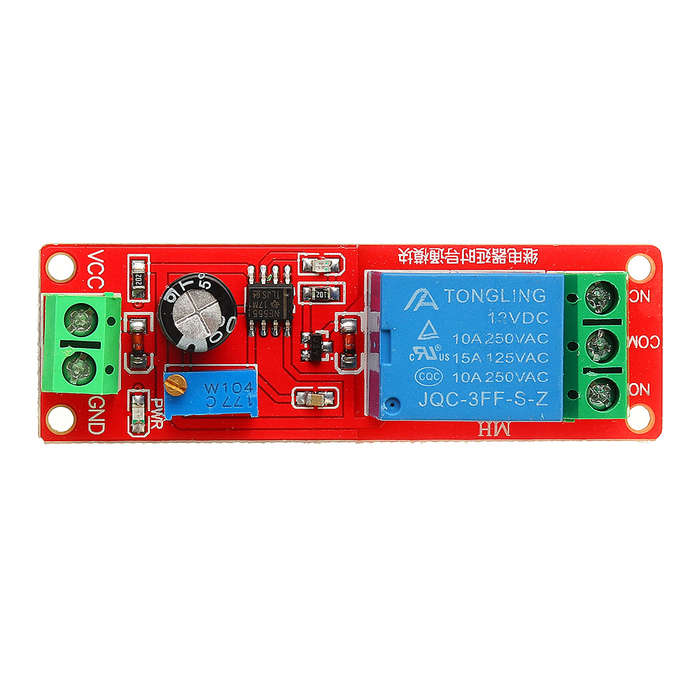

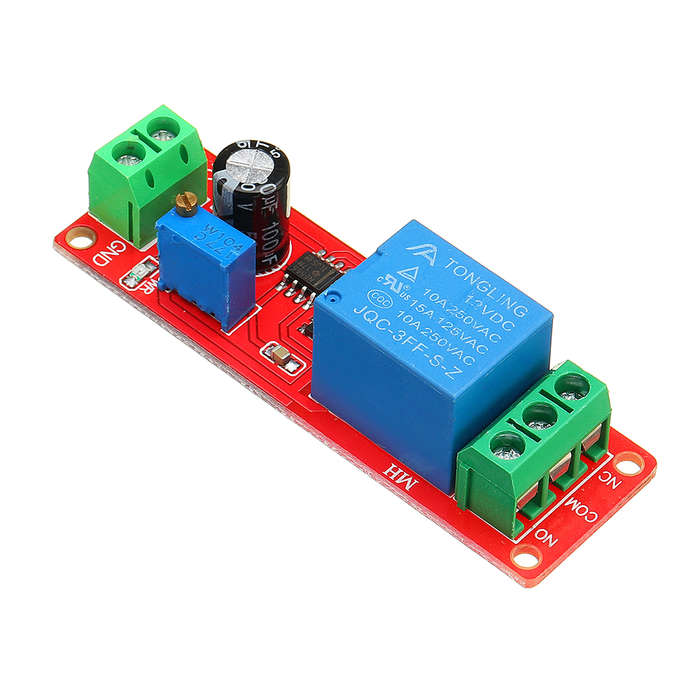

3pcs NE555 Chip Time Delay Relay Module Single Steady Switch Time Switch 12V

Description: 1. Put on the power relay and delay suction. Specifically: after supplying 12V power supply to relay, relay will not absorb immediately. The state of output terminal of relay is: normally open and public disconnect, normally closed and public conduction; when the delay is 1-10S (adjustable), the relay sucks. At this time, the state of output terminal of relay is: normally open and public conduction, often closed and public disconnection; as long as the module is continuously powered, this state will be maintained. Hold. 2. Adjustable delay time, (0-10 seconds) 4. Increasing potentiometer can increase delay time 5. Increasing capacitance C1 can increase delay time 6. Indicator lamp with input power supply 7. Suction indicator with relay 8. Controllable 220V/10A AC equipment. (Maximum Control Equipment 2000W) 9. It has relay continuous current protection. 10. Delay time formula: T = 1.1RC. For example: capacitance 100uF resistance 100KT = 1.1 * 100000 * 0.0001 = 11 seconds

Feature:

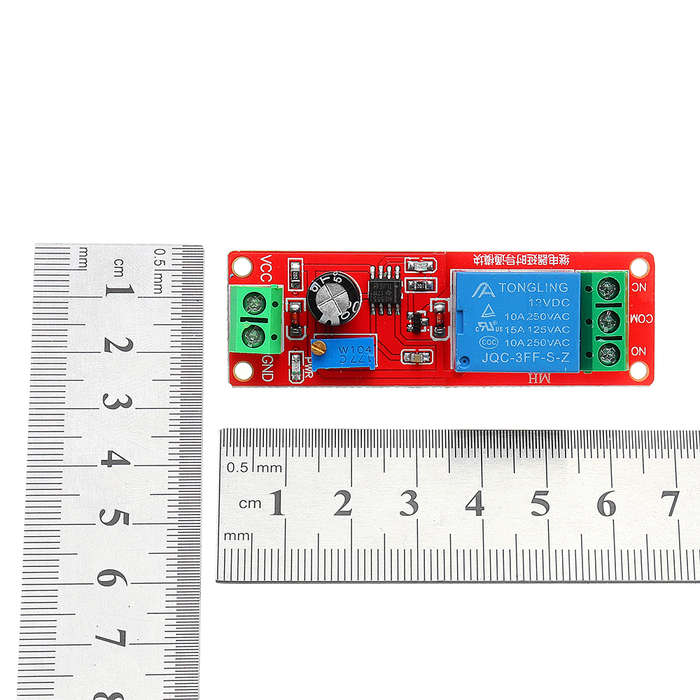

Size: 6.8CM x 2.1CM Main chip: NE555 Working Voltage: 12V DC Package Included:

3 xNE555 Chip Time Delay Relay Module
