3pcs RF Nano V3.0 USB Module ATmega328P QFN32 5V 16M CH340 Integrate NRF24l01+2.4G Wireless Imme

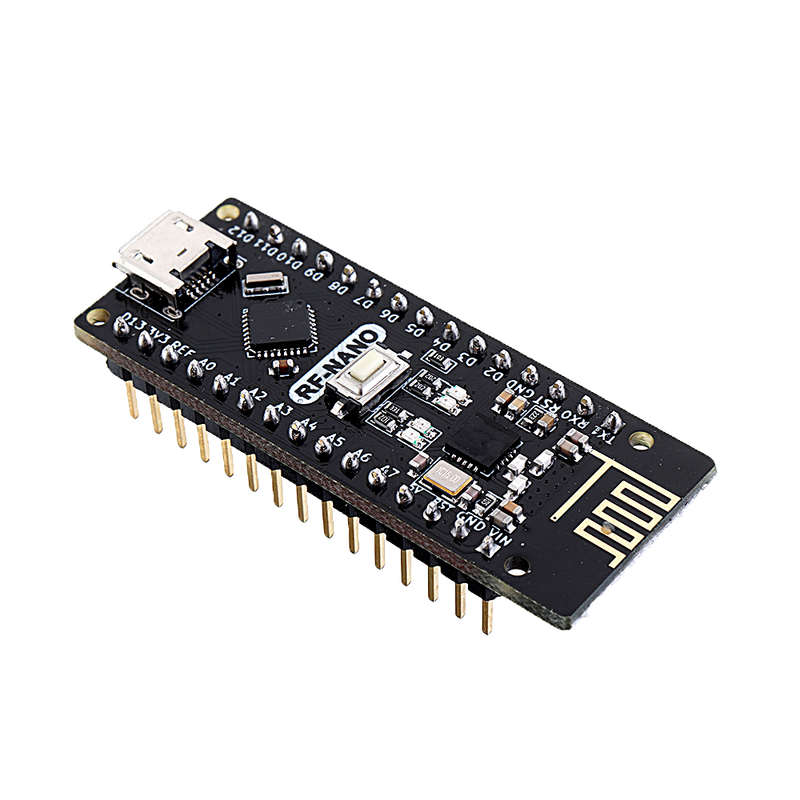

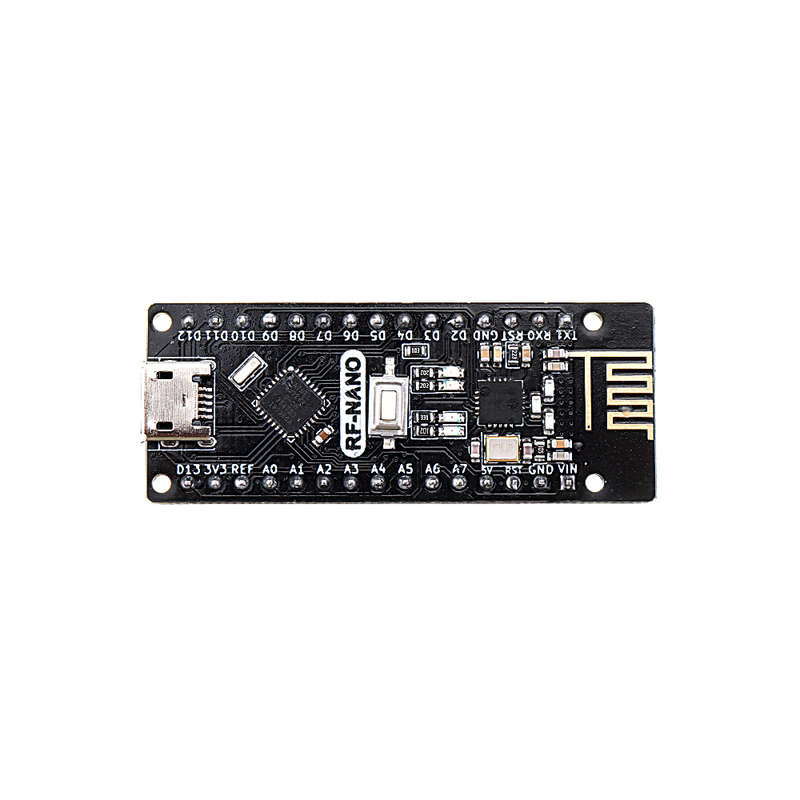

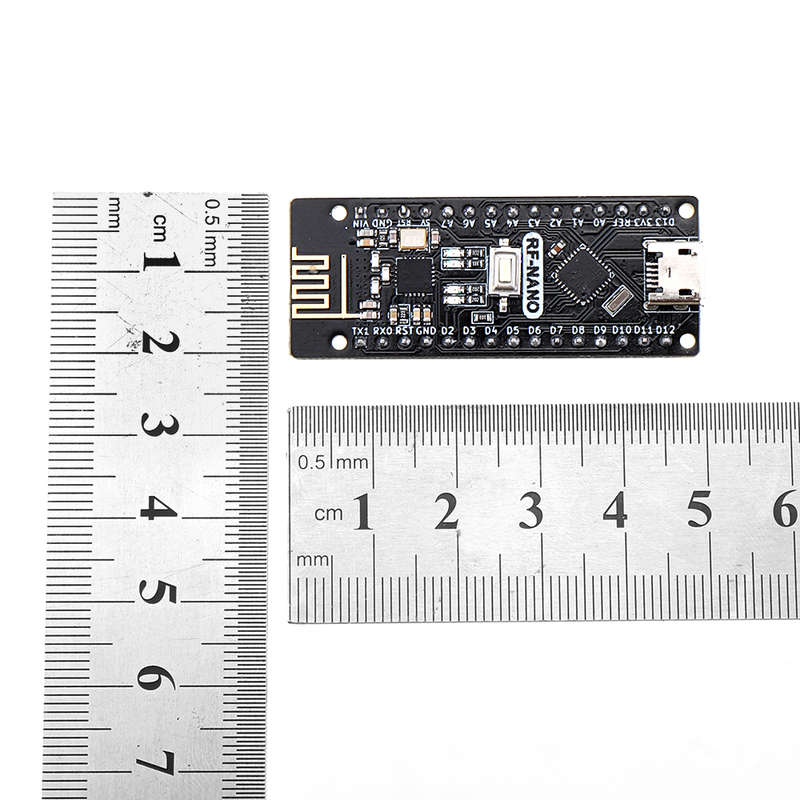

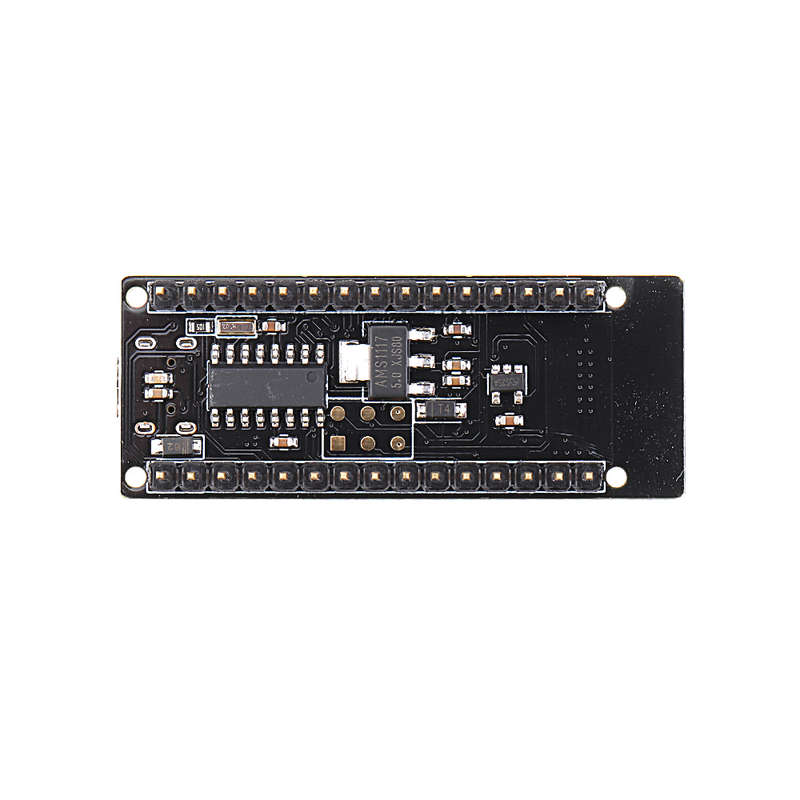

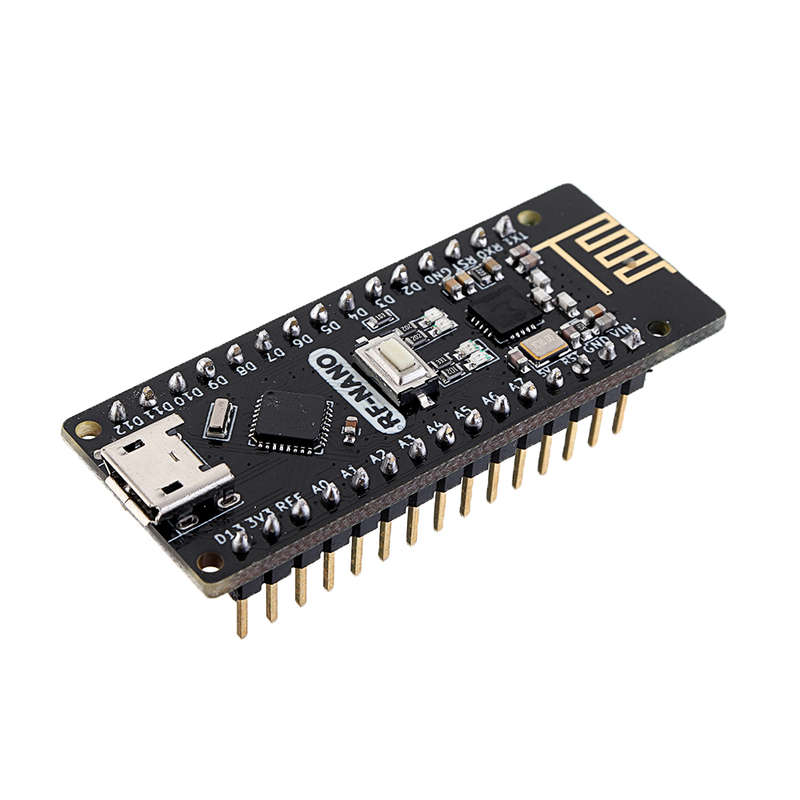

Feature: 1. Creative products, RF-Nano-Board: Upgraded nano board for , The main chip is ATMEGA328P-MU QFN32, the latest bootloader ( IDE 1.8.8) was burned down. It is fully compatible with the common nano board. RF-Nano-Board is PIN-PIN with Nano V3.0,and share the same codes. 2. More convenient for application: The RF-Nano-Board integrates an NRF24L01+ module with nano v3.0 board, which is very convenient for 2.4G wireless connect application. 3. High quality material and Technology: We used high quality PCB original material and Immersion Gold Technology to make sure every board has smooth edge and more reliable. 4. Super small volume design, more convenient to use: The PCB size is only 48mm*19mm, the pin is fully compatible with Nano V3.0,No Soldering needed. The Mi cro usb port is more convenient to use. 5. RF-Nano-Board using CH340 chip to UART, you can download mac, windows, Linux three system drivers. Specification: Mi crocontroller ATmega328P Nrf24L01+ 2.4G wireless Architecture AVR Operating Voltage: 5 V Flash Memory: 32 KB of which 2 KB used by bootloader SRAM: 2 KB Clock Speed: 16 MHz Analog I/O Pins: 8 EEPROM: 1 KB DC Current per I/O Pins: 40 mA (I/O Pins) Input Voltage: 7-12 V Digital I/O Pins: 22 PWM Output: 6 Power Consumption: 19 mA Weight: 9g

Parameter: a It is fully compatible with the nano-v3.0 pin and its usage method a BLE chip: TI CC2540 a Work channel: 2.4G a Transmission distance: 50m a Supports AT directive to configure BLE a Support USB virtual serial port, hardware serial port, BLE three-way transparent transmission a Support master and slave switch a Supports sending over 20byte. a Supports iBeacons a Interface: Mi cro-USB a Input voltage: USB power supply, Vin6~12V, 5V a MCU: ATmega328P-MU QFN32 a Bootloader: Newest 1.8.8 a Pin: Two Lines 2.54mm-15Pin a Size: 48mm x 19mm x 12mm Package includes: 3 x RF Nano board Note:

Please use IDE 1.8.6 or higher version, First, install the CH340 driver, then follow this selection path in IDE: Tools - Boarda Nanoa Processor aATmega328P, otherwise you'll find that you can't burn any program.
