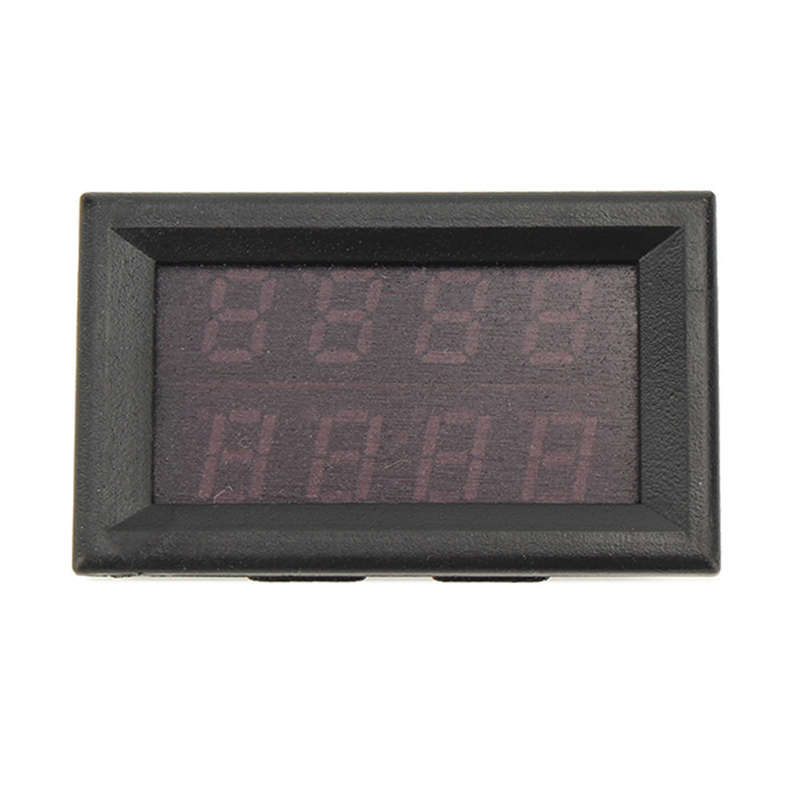

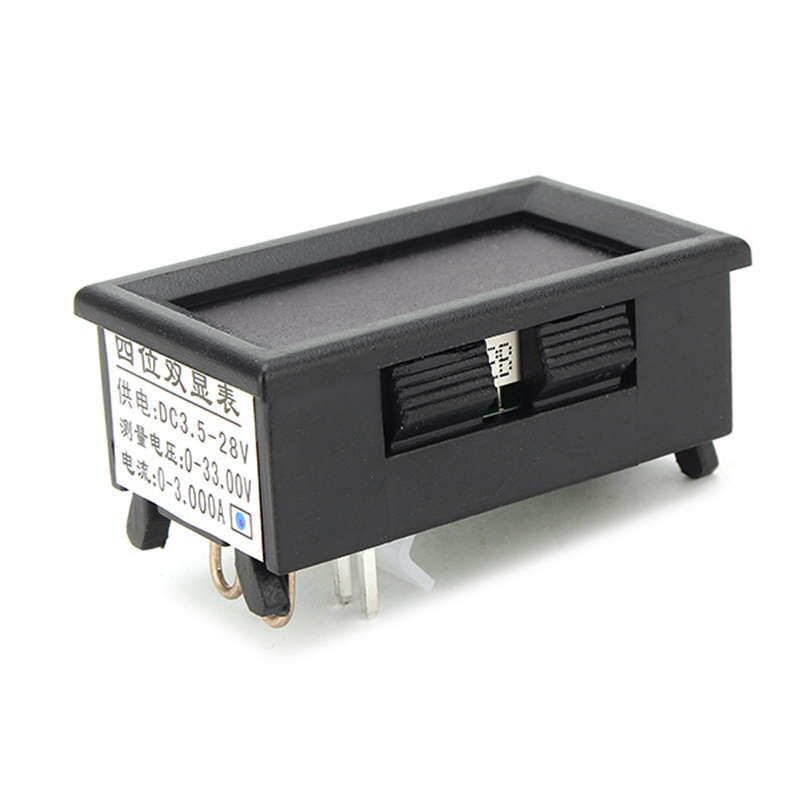

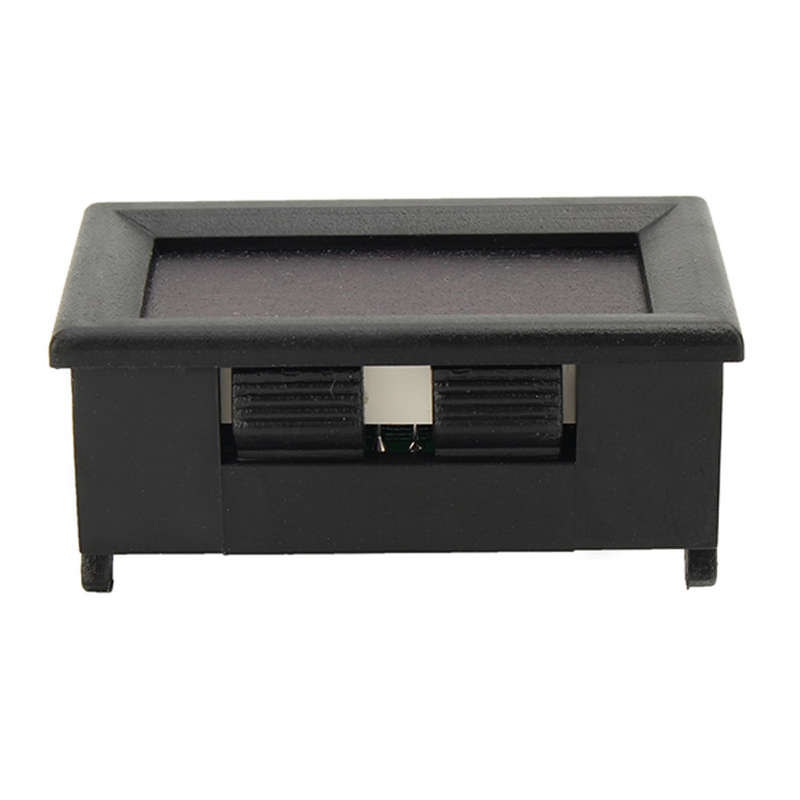

3pcs RIDEN 0-33V 0-3A Four Bit Voltage Current Meter DC Double Digital LED Red+Blue Display Volt M

Feature:

Weight: 21g

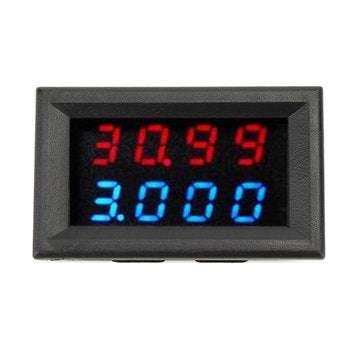

Display color: B: Red+Blue
Display mode:Dual 0.28 LED digital 4 bit tube
update rate: About 200 ms/time

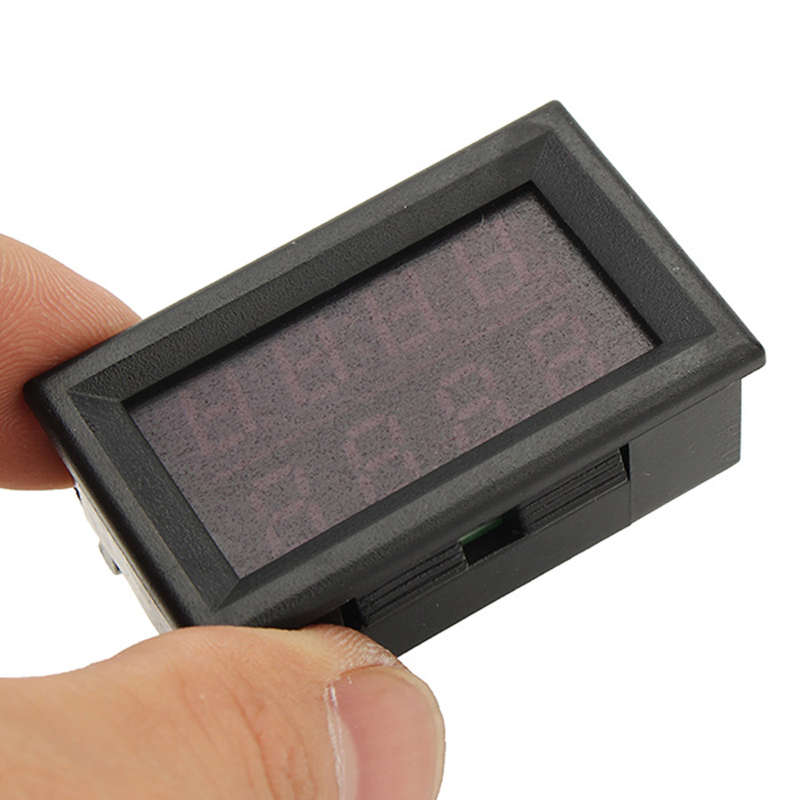

Physical size: 48 x 29 x 26 mm (L*W* H)
Opening size: 45 x 26 mm (L*W)

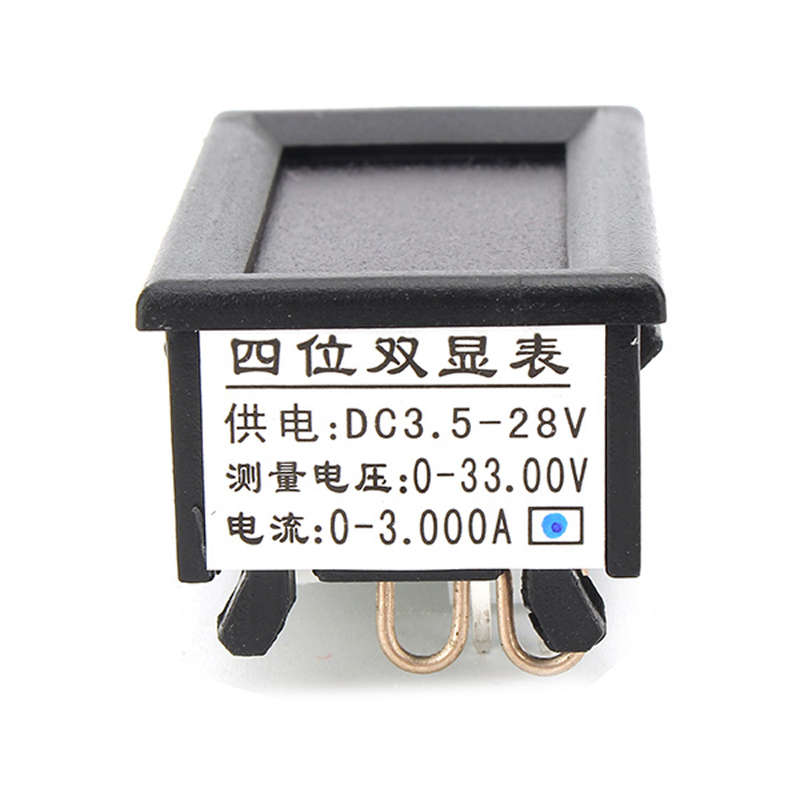

Supplyvoltage:3.5-28V
Lead wire length: 14 cm(Five wires)
Measurement range:DC0.00-33.00V(voltage, Resolution 0.01v )
0.000-3.000A(current, Resolution 0.001A)
Operation temperature: -10 degrees~65 degrees
Current measurement accuracy: ± (0.3% + 2words)

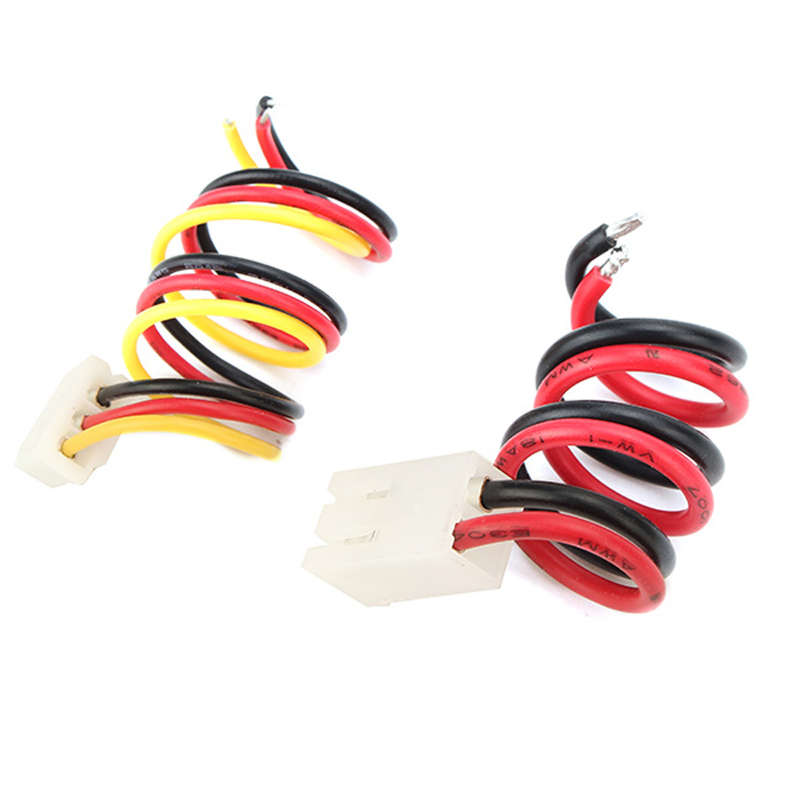

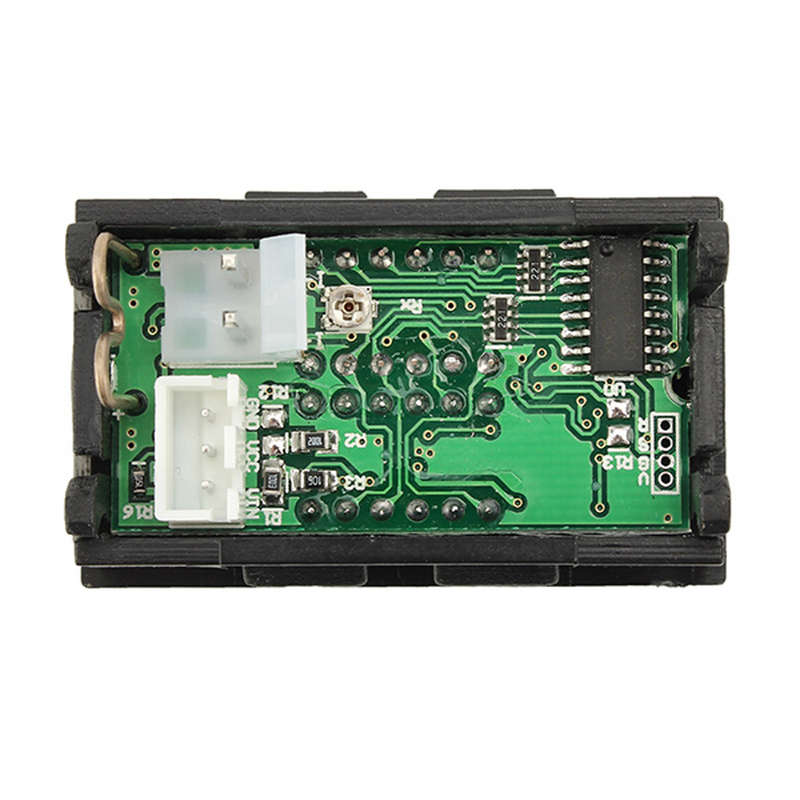

Instruction of wiring:

Red thin wire (VCC): Power input + 3.5-28V
(NOTE: If the measuring signal is lower than 28V and have abundant power supply, it can be used as power supply for the module [black wire and yellow wire are contacted together to use])
Black thin wire(GND): Power input- Measurement signal - 3.5-28V
Yellow thin wire (VIN): Measurement signal + (0-99.9V)
Red thick wire (I+): Current input + (connect with load negative)
Black thin wire(I-): Currentinput-(in series in power supply negative)

Circuit Diagram:

Voltagecurrentmeterinthemeasurementsystemforpowersupply

Systemsupplypower-1
Systemsupplypower-2


Package included:

3 x0-33V 0-3A Four Bit Voltage Current Meter
