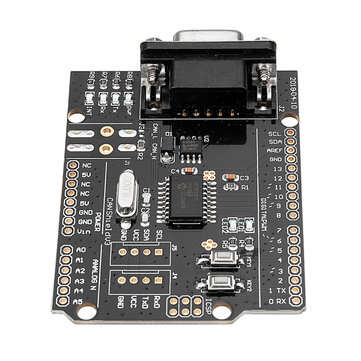

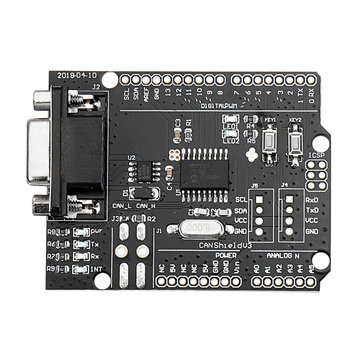

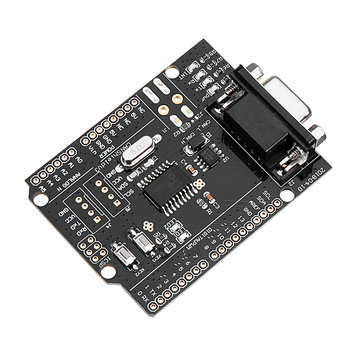

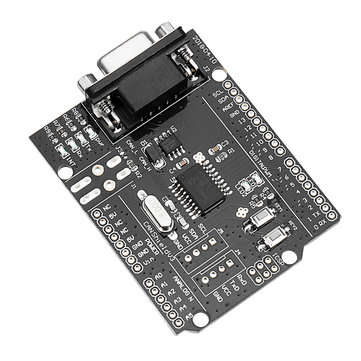

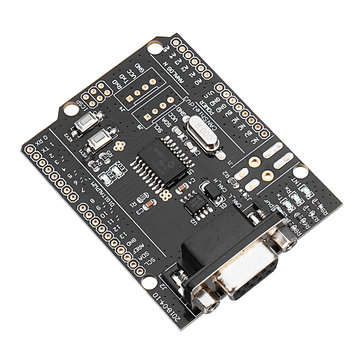

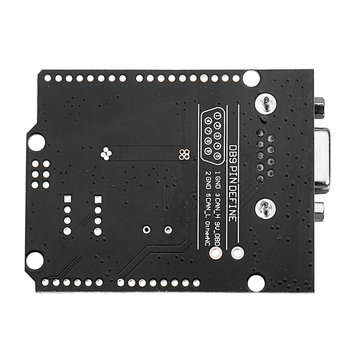

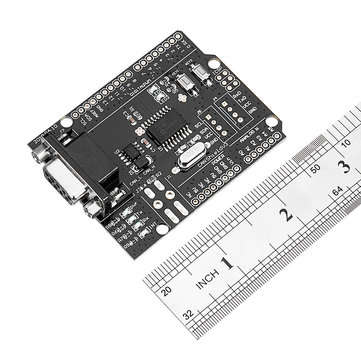

3PCS SPI MCP2515 EF02037 CAN BUS Shield Development Board High Speed Communication Module Geekcreit

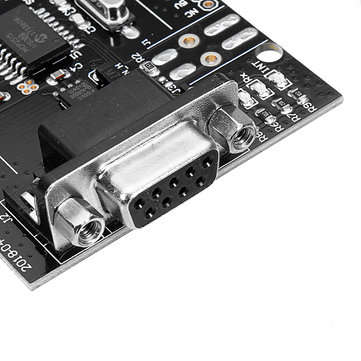

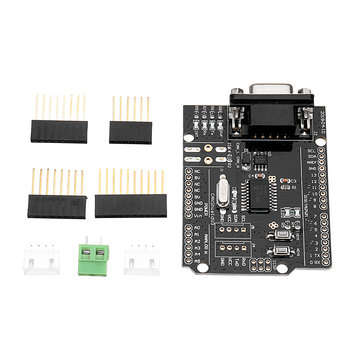

Introduction: ? CAN-BUS is a common industrial bus because of its long travel distance, medium communication speed and high reliability. It is commonly found on modern machine tools and as an automotive diagnostic bus. This CAN-BUS Shield adopts MCP2515 CAN Bus controller with SPI interface and MCP2551 CAN transceiver to give your /Seeeduino CAN-BUS capibility. With an OBD-II converter cable added on and the OBD-II library imported, you are ready to build an onboard diagnostic device or data logger.? ? Features: ? Implements CAN V2.0B at up to 1 Mb/s SPI Interface up to 10 MHz Ariduino/ Freaduino Completely compatible Standard (11 bit) and extended (29 bit) data and remote frames Industrial standard 9 pin sub-D connector Two receive buffers with prioritized message storage Operating voltage: DC5-12V Size: 78mm x 53.5mm ? Applications: ? Industrial control Car control field ? Package included: ? 3 x EF02037 CAN-BUS Shield

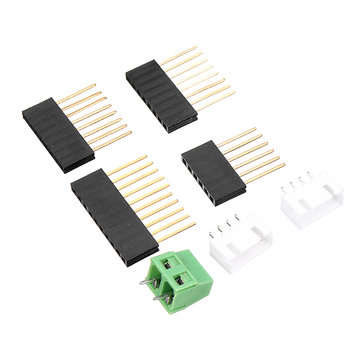

12 x?Row pin
9 x?Connector
