Parameters:
Power supply voltage: 9V DC
Receiver working voltage: 4 ~ 12V

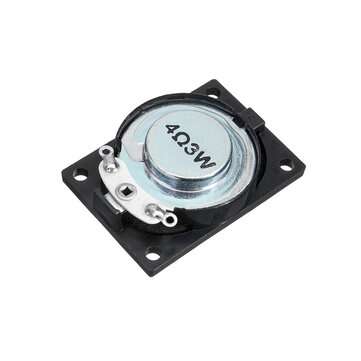

Driving speaker working voltage: 0.5W-10W

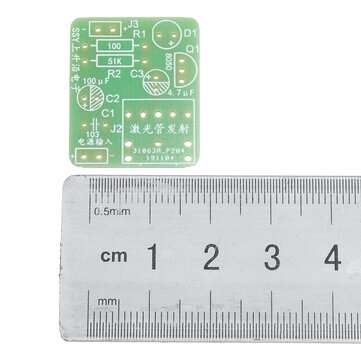

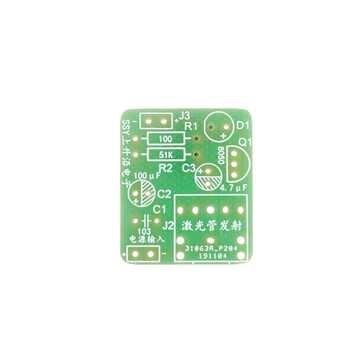

Board size: Laser tube transmitting board (22 * 26mm)

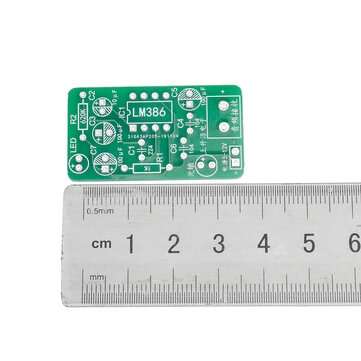

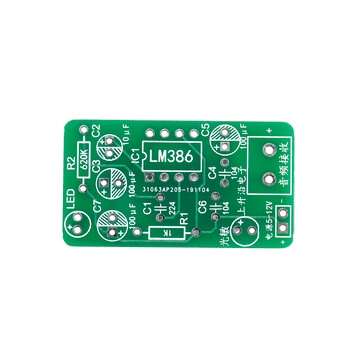

Laser audio receiving (40 * 22mm)

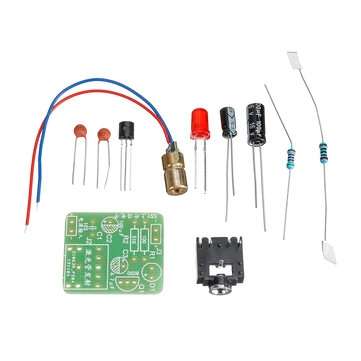

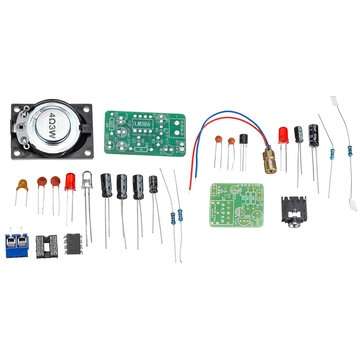

Laser tube emission component list | |
Component name | Quantity |
Resistance 100R | 1 |
Resistance 51K | 1 |
Ceramic capacitor 103 | 1 |
Electrolytic capacitor 100UF / 16V | 1 |
Electrolytic capacitor 4.7UF / 50V | 1 |
Audio port PJ3F07 | 1 |
Light emitting diode LED | 1 |
NPN8050 | 1 |
Laser emission tube | 1 |
Battery button | 1 |
9V battery (optional) | 1 |
PCB board | 1 |

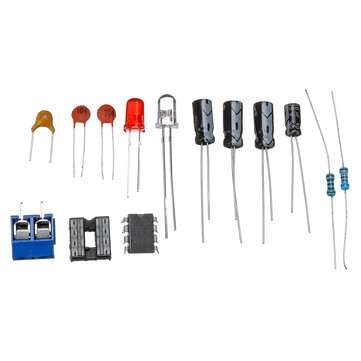

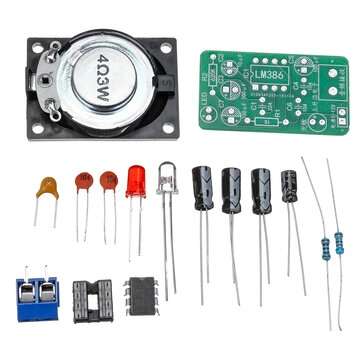

Audio receiving module component list | |
Component name | Quantity |
Metal film resistor 1K | 1 |
Metal film resistor 620K | 1 |
